380V 50Hz Corrugated Cardboard Making Machine , Corrugated Production Line

Price Negotiable

Price: 15000

MOQ: 1

Delivery Time: 30 workdays

Brand: Aodong

Product Description

high speed 2200mm automatic corrugated carton box paperboard making machine working line

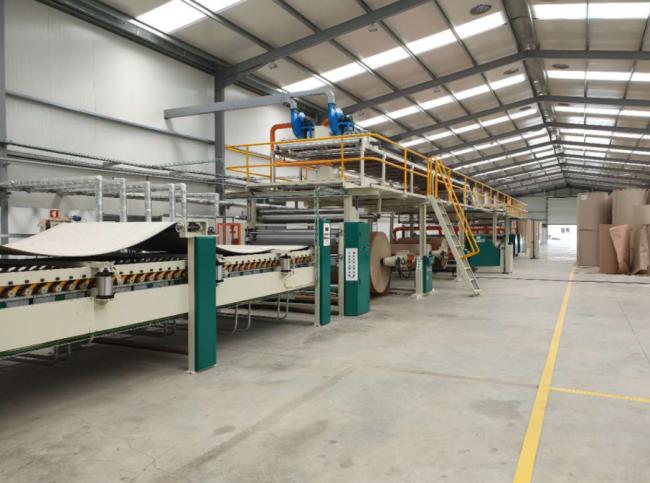

			2200 type corrugated paperboard production line

			Effective width

			2200mm

			Design produce speed

			120m/min

			Economic speed

			80-120m/min

			Longitudinal separation accuracy

			±1mm

			top paper

			100-250g/m2

			Cross-cutting precision

			±1mm

			core paper

			100--250g/m2

			Electricity demand

			AC380V 50Hz 3PH

			corrugated paper

			100-150g/m2

			Steam requirement

			The maximum pressure 16kg/cm2

			Common pressure10-12kg/cm2

			use4000kg/Hr

			Compressed air

			The maximum pressure 9kg/cm2

			Common pressure4-8kg/cm2

			use1m3/min

			note:Production line speed test paper should meet the following requirements:(the surface temperature of the equipment is not less than 172℃)

1. Flutes combinations: A, C, B, E (or choose by the customer)
2. Steam requirements:
Steam cost: 4000 Kg/Hr Max pressure: 1.2Mpa
Practical Pressure: 0.8-1.2Mpa
3. Power supply: 410V 50Hz (Three phase four wire system)
4. Total Power: About 250 kw
Practical power cost: About 120kw
5. Area of the Production Line covers: About 90m×6m×5m (The specific length is based on the foundation drawing)
6. Corrugated board stacking direction: left or right according to the workshop to make sure the drive in left direction or right direction.
