Paperboard Making Mill Roll Stand Equipment With Centralized Control

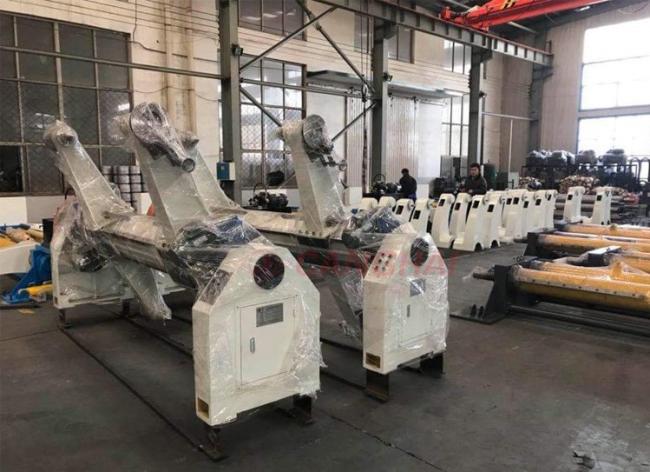

Good quality corrugated paper box sheet electric shaftless mill roll stand
1, Symmetrical structure, which can be installed at the same time two bundle of paper tube; The use of electric drive to complete base paper clamping, lifting, loosen, moving in and around translational action.
2, working width:1600mm.
3, Maximum reel paper:1400x1600mm.
4, Minimum reel paper::400x800mm.
Maximum bearing of single side:2000kg.
6, Penumatic brake set
7 . ectrical components are centralized control, button action.
8, travel switch control range.
9, friction slices pre-tightening force control lifting weight.
10. One main motor, power 2.2 kw, each arm power 1.5 kw×4
1. The structure is double rotary shaft with four arms;Support two paper mill rolls on both arms at the same time.
2. Round-plate type manual brake,the web tension is adjusted at any time.
3. Arm Clamp and rotary structure set fixed torque clutch,operate safety.
