5layer Used Corrugated Box Making Machine , 1800mm Second Hand Corrugation Machine

Price Negotiable

Price: There is a discount on the transaction within 15 days

MOQ: 1

Delivery Time: 45 days

Brand: JS

Product Description

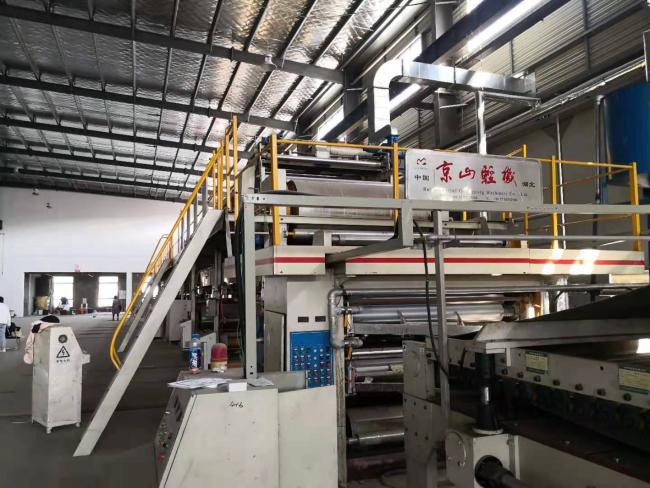

Used corrugated carton box/paper making production line 1800mm hebei dongguang

Main technical parameter

Model 5seven-layer corrugated board of model 1800

Origin hubei jingshan (JS BRAND)

Production date 2016

The total mater 110m

Design speed 180m/min

Working speed 100M-120m/min

Working width 1800mm

Corrugated flute:C B

Steam pressure 0.8-1.25Mpa

Air compression 0.6-1.0Mpa

Oil compression 0.6-1.0Mpa

Total power

No.	Name	Qty	Note
1	hydraulic mill roll stands(including 5 carriage and 10rails)	5	1. Hydraulic drive, to be completed by paper lift, clamp, loosen, move the pair. 2. Multi-point type brakes,pneumatic tension adjust paper tension,bulge style chuck, 3.Max single arm load weight:3 ton;
2	Automatic splicer machines	5	Size;1800mm Brand: HIP

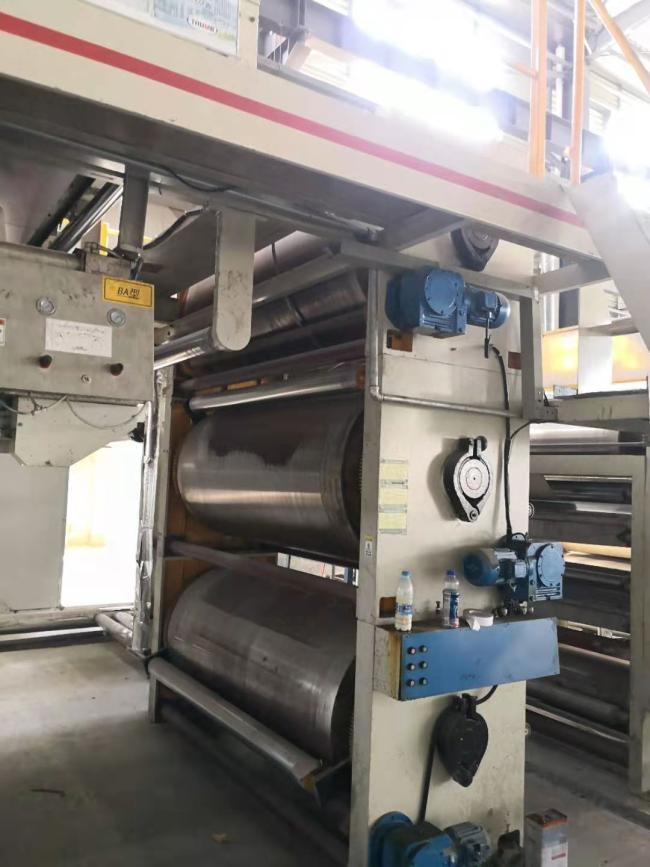

3	Preheaters 900mm diameter	4	1. Main drive roller:Φ900mm,electric adjust wrap corner, 2. Paper wrap angle adjust scope:60-270 degrees;
4	Single facer machines(C flute,B flute)	2	1.Roller is 320,Material tungsten roller ,cardon drive; 2.Electric adjust glue width; 3.Manual adjust glue gap; 4. Pneumatic for glue supply, automatic recycled; 5. Adopt individual gear box with gimble drive; 6. Flute type: B,Cflute available;

5	Three layer pre-heater- Grounding type	1	1. Main drive roller:Φ600mm,grounding type, Electric adjust wrap corner, adjust scope:60-270 degrees; 2. grinding and chrome plated
6	Over transport bridge	1	1.Adsorption type tension control, 2.Electric motion deflection-corrected,easy operation;
7	Two layer -secondary gluing machine ( PLC automatic gluing control)	1	1.PLC touch screen,electric adjust glue gap; 2.Independent variable frequency motor drive;

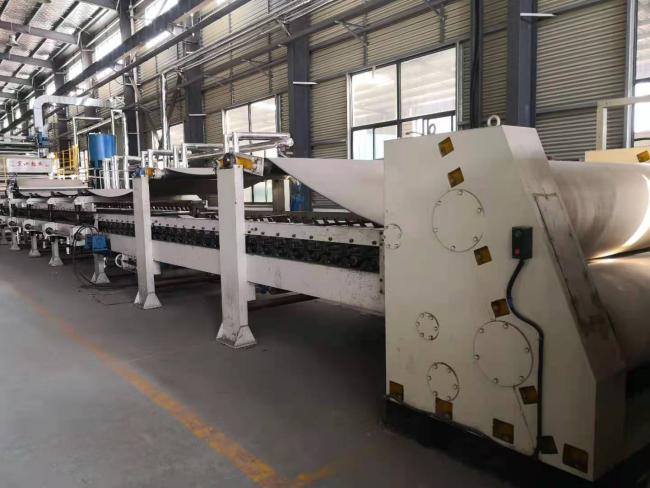

8	Double baker machine (hot unit)	1	Douber facer,18*600mm hot plates.cold playes with screen contact plate structure
9	Shengyang cotton belt,up and down two	1	5. Adopt quality conveyor belt ,Shenyang produced, good permeability, high temperature resistant. 6. Upper and lower belt included;
10	computer high-speed zero creasing thin blade knife machine	1	1.Adopt five-knives eight-scorers; 2.Automatic tracking of orders, all computer-controlled, thin tungsten alloy blades; 3. Replace order to adjust the knife, time is 3-8 seconds; 4. The cutter wheel and creasing wheels are

			controlled by pneumatic rising, orders do not have to replace cardboard cut; The patented sharpening system is not broken knife and extended blade life, can be achieved manually sharpening and automatic sharpening. Equipped with automatic clear stripping device;
11	180m/min Computer high-speed cut off machine, speed 180m/min	1	Design speed: 200m/ min,effective width: 1800mm; Cutting length:500-9999mm,cutter precision:1mm uniform The computer can store multiple orders, HMI separate color,PLC touch screen display Adopt Shanghai Tomita 11KW AC servo motors and servo drives 15KW Bryant Germany; Use high-speed steel spiral inlay blades, serrated knife, reducing cardboard resistance, low noise;
12	Gantry type stacker	1
13	A set of glue making system	1
14	All pipelines,valves and water delivery valves below the line	1
