Run Smoothly Second Hand Corrugated Box Making Machine For Egg Box Production
high speed corrugated cardboard paper production line/paper making machinery /carton box making machine prices

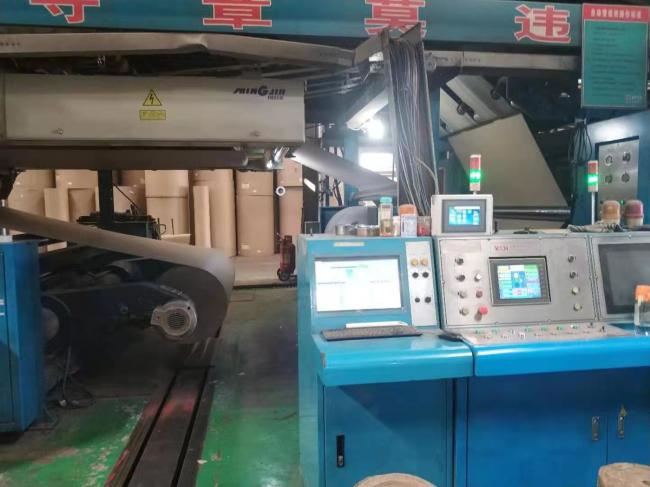

Corrugated cardboard production line is the professional equipment for producing corrugated cardboard. The production line consists of the mill roll stand, liner preheater, single facer machine, conveyor bridge, gluing machine, double facer machine, slitter scorer, cut-off, conveyer and stacker, heating system, air cmpression system and gue making system and so on. We produced different grade 3,5,7 ply corrugated production line with different fitting. On the base of understanding the requirements of the customers and the advanced skills at home and abroad,our company has developed and designed these production lines with the speed 60-220m/min, the paper width 1600-2200mm and A,B,C,E,UV flute production line can satisfy different customers.
Main units:
| No. | Name | Sets | Comment |
| 1 | Mill roll stand | Electic mill roll stand , expansion dop top, pneumatioc brake | |
| 2 | Single facer | vac-sorb,φ320 alloy roller ,cardan drive | |
| 3 | Feeding paper bridge | Electric adjust deviation,adsorb tension | |
| 4 | Second gluing machine | Conversion synchronous control | |
| 5 | Triply pre-heater | φ 800,electic wrap angle(including qualification certificate ) | |
| 6 | pre-heater | φ 800,land type electic wrap angle(including qualification certificate ) | |
| 7 |
Dry formed part |
520mm×18 pieces hot plate ,adopt Adopt up and down intensive roller(including qualification certificate ) | |
| 8 |
Heat formed part |
Adopt up and down intensive roller ,length 8m | |
| 9 | Feeding paper belt | High qualit carton belt , electic promote | |
| 10 | Thin blade slitter scorer mahcine | 5 blade 8 line , electric Correct error , alloy blade | |
| 11 | Corss cutter | Computer control cutting cardboard length 500-9999mm; cutting cardboard precision ±1mm | |
| 12 | Main drive | Main power 25KW | |
| 13 | Make paste system | Barrel type ,electic stir circulate glue design | |
| 14 | Stand feeding paper car | Includ sliping way | |
| 15 | Pump | Electic aeration | |
| 16 | Electic system | One Operate cabinet ,one sinlge facer 1 main drive | |
| 17 | Steam system | Not including heat source and pipe | |
| 18 | Gantry stacker |
Belt drive type |
Installation:
1. Technician needed from the seller: 8~10 technicians (For installation and training)
2. Standard installation Time: 70 days.
3. Installation and training charge: USD50 /day, per technician.
4. Preparation from the Buyer, before the arrival of our technician.
5.According to foundation drawing, the space for machines should be ready.
6.According to order information and installation requirement, prepare necessary materials.
7. The buyer should bearing the cost of air ticket, hotel and food
