Rotary NC Cutting Machine 1100mm-2200mm Max Effective Width
NC Rotary Cut-Off Machine With Helical Cutting Knife
| Max Effective Width | 1100~2200mm |
| Max Paper Roll Diameter | 1500mm |
| Max Paper Roll Weight | 3000kg |
| Corrugating Roller | Φ280~405mm, 48CrMo alloy steel, hardness HRC58°-60° |
| Min Slitting Width | 150mm |
| Cutting Length | 500~9999mm |
| Design Speed | 100~200m/min |
| Heating Method | Steam Heating |
| Economic Working Speed | 80~160m/min |
1) NC Computer-control Rotary Cut-off fixed-length, color tracking cross-cutting, automatic change orders, select for orders
2) permanent magnet synchronous motors, AC servo control of cross-cutting, high efficiency, high-precision
3) Frequency out of paper delivery, and production line speed synchronization control

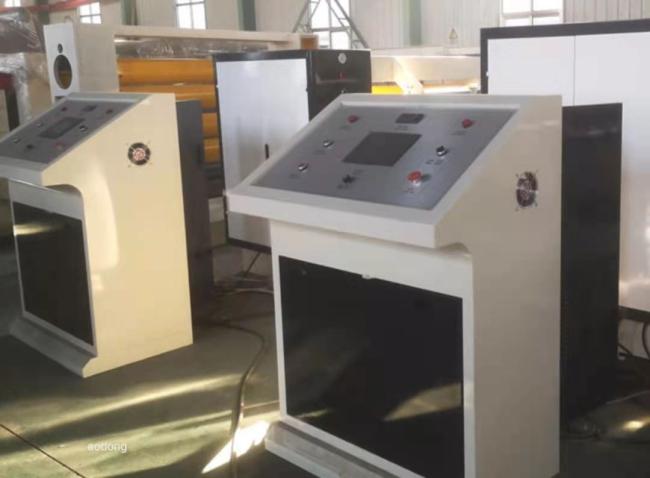

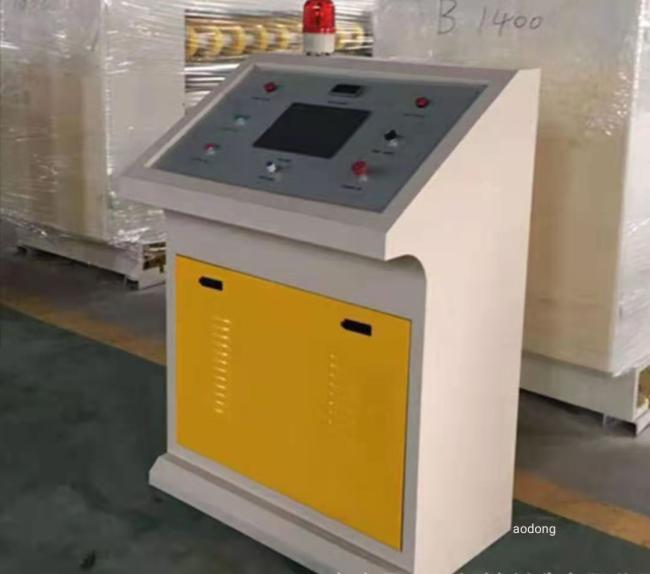

4) Color Touch Panel Computer Monitor operation, simple operation, visual surveillance
5) perfect order management, production statistics, production management system online
1) WJ-I/II/III 3/5/7-layer Corrugated Cardboard Production Line consists of the following machines, Electrical Shaftless Mill Roll Stand, Single Preheater, Fingerless type Single Facer, Overhead Conveyor Bridge, Duplex Preheater, Duplex Gluer, Double Facer, Lift-down Thin Blade Slitter Scorer, NC Cut-off, Right-angle Conveyor & Stacker, etc.
2) Kraft Paper Reel to be corrugated and glue by Corn Starch Gum, continuously produce, slit, crease & cut to 3/5-layer Corrugated Cardboard Sheet, and then conveyor, stack and output.
3) The production line has rational structure design, advanced producing flow, high efficiency, strong batch adjustability, easy operation, etc. good work conditions.
4) It is the ideal and perfect equipment for corrugated carton box factories.
