No.

Name

(set)

Note

hydraulic mill roll stands(including 10 carriage and 10 rails)

1.Hydraulic drive, to be completed by paper lift, clamp, loosen, move the pair.

2.Multi-point type brakes,pneumatic tension adjust paper tension,bulge style chuck,

3.Max single arm load weight:3 ton;

Automatic splicer machines

Size;2200mm

Huibei JS and Qingdao JUSTU

Preheaters 1000mm diameter

1.Main drive roller:Φ1000mm,electric adjust wrap corner,

2.Paper wrap angle adjust scope:60-270 degrees;

Single facer machines(C flute,B flute)

1.Roller is 405,Material alloy roller ,cardon drive;

2.Electric adjust glue width;

3.Manual adjust glue gap;

4.Pneumatic for glue supply, automatic recycled;

5.Adopt individual gear box with gimble drive;

6. Flute type: B,Cflute available;

Three layer pre-heater-

Grounding type

1.Main drive roller:Φ900mm,grounding type,

Electric adjust wrap corner, adjust scope:60-270 degrees;

2.grinding and chrome plated

Over transport bridge

A set of automatic deviation correction

Three layer -secondary gluing machine(PLC automatic gluing control)

1.PLC touch screen,electric adjust glue gap;

2.Independent variable frequency motor drive;

Double baker machine

(hot unit)

18 pieces hot plates, cold playes with screen contact plate structure,hydraulic lift,automatic adjustment

cotton belt,up and down two

5. Adopt quality conveyor belt.

good permeability, high temperature resistant.

6.Upper and lower belt included;

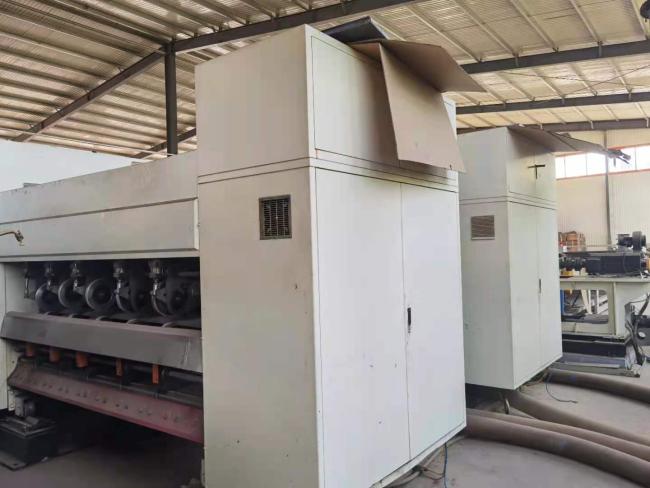

computer high-speed zero creasing thin blade knife machine

1.Adopt five-knives eight-scorers;

2.Automatic tracking of orders, all computer-controlled, thin tungsten alloy blades;

3.Replace order to adjust the knife, time is 3-8 seconds;

4.The cutter wheel and creasing wheels are controlled by pneumatic rising, orders do not have to replace cardboard cut;

5.The patented sharpening system is not broken knife and extended blade life, can be achieved manually sharpening and automatic sharpening.

6. Equipped with automatic clear stripping device;

Computer high-speed cut off machine,

speed 180m/min

1.Design speed: 200m/ min,effective width: 2200mm;

2.Cutting length:500-9999mm,cutter precision:1mm uniform

3.The computer can store multiple orders, HMI separate color,PLC touch screen display

4.Adopt Shanghai Tomita 11KW AC servo motors and servo drives 15KW Bryant Germany;

5.Use high-speed steel spiral inlay blades, serrated knife, reducing cardboard resistance, low noise;

6. brand : qingdao kaituo

Auto gantry stacker machine

All pipelines,valves and water delivery valves below the line
