Iso9001 High Speed Carton Flexo Printing Slotting Die Cutting Machine 220v
Price:
1500 USD
MOQ:
1 set
Delivery Time:
55 days
Brand:
AODONG
Product Description

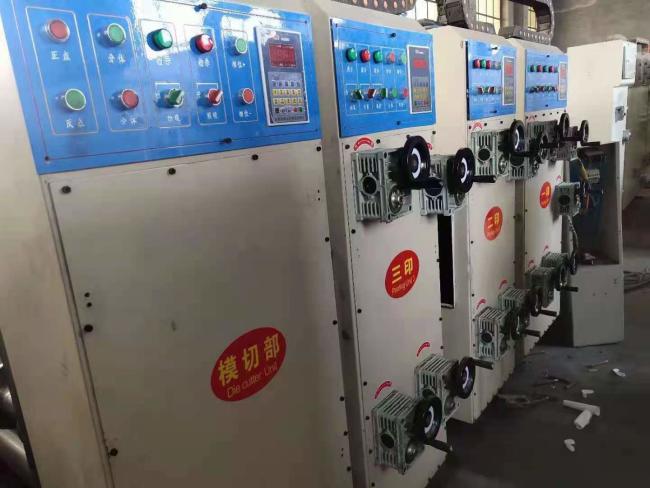

High Speed Carton Printing Slotting Die-Cutting Machine
High Speed Carton Printing Slotting Die-Cutting Machine
Functions and characteristics:
■ The electrical appliances and computer software of the whole machine adopt international famous brands, and the quality is stable and reliable; Man-machine interface, computer order management, easy operation, faster order change (999 orders can be pre-stored).
■ The wallboard and important parts of the whole machine are all aged and tempered to eliminate metal internal stress; They are all made by high-precision machining center and ground by CNC grinder.
■ The shaft and roller of the whole machine are made of high-quality steel, tempered and quenched and tempered; Grinding, high-precision computer dynamic balance correction, hard chromium plating on the surface.
■ All transmission gears of the whole machine are made of 20CrMnTi alloy steel, carburized and quenched, with hardness HRC 58 ~ 62; After gear grinding, the precision is 6-level, which ensures high registration precision for long-term use.
■ Key-free connection (expansion sleeve) is adopted in the transmission parts of the whole machine, which eliminates the connection gap and is suitable for long-term high-speed operation with large torque.
■ The transmission bearings of the whole machine and the important transmission parts adopt reinforced self-aligning bearings, which are easy to maintain and have a longer service life.
■ The lubrication system of the whole machine adopts spray type automatic lubrication, visual display device, and is equipped with double oil path oil level balance system.
■ The whole machine adjusts the preset position function, including paper feeding, printing, slotting, die cutting, automatic zeroing and automatic memory reset.
■ The working clearance of the whole machine is adjusted quickly without wrench, which makes the adjustment quick and convenient.
■ The main engine is controlled by frequency conversion, which makes the startup and operation more stable and saves energy.
■ Servo pressureless or leading edge adsorption paper feeding can be selected as required.
■ Optional: ceramic net roller; Scraper ink setting system; Stacker.
■ There is an ink shortage alarm device to monitor the working state of the ink supply system in real time.
■ The whole machine is equipped with limit and overtravel display.
■ the working clearance of the optional assembly machine can be adjusted electrically.
