380-440v Thin Blade Slitter Machine Automatic 100-150 Piece/Minute Custom Size
Price:
40000
MOQ:
1
Delivery Time:
50
Brand:
AO DONG
Product Description
380-440V Automatic 100~150 Piece/minute custom sizse Thin Blade Slitter Scorer Machine
| Technical Parameters | |||||
| Type | AD-ANC-1800 | AD-ANC-2000 | AD-ANC-2200 | AD-ANC-2500 | |
| Effective width | 1700mm | 1900mm | 2200mm | 2500mm | |
| Knife configuration | 5,6 | 5,6 | 6,7 | 6,7 | |
| Score configuration | 8,10 | 8,10 | 10,12 | 10,12 | |
| Order change time Common type | 3-8s | 3-8s | 3-8s | 3-8s | |
| Order change time AC sevro type | 1-5s | 1-5s | 1-5s | 1-5s | |
| Min.Slitter-spacing | 160mm | 160mm | 160mm | 160mm | |
| Min.Score-spacing | 0mm | 0mm | 0mm | 0mm | |
| Sliiter/Score precision | ±0.5mm | ±0.5mm | ±0.5mm | ±0.5mm | |
| Body rectification range | 200mm | 200mm | 200mm | 200mm | |
| Dimentions L x W x H(mm) | 3080*1900*2360 | 3280*1900*2360mm | 3480*1900*2360 | 3780*1900*2360 | |
| Weight | 4.2t | 4.5t | 4.7t | 4.9t | |

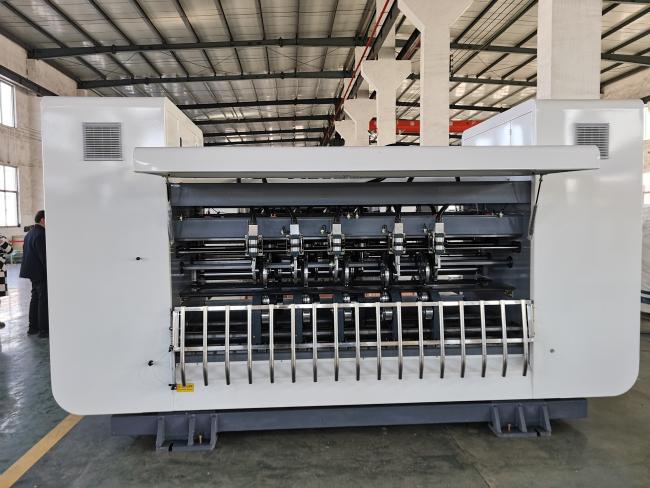

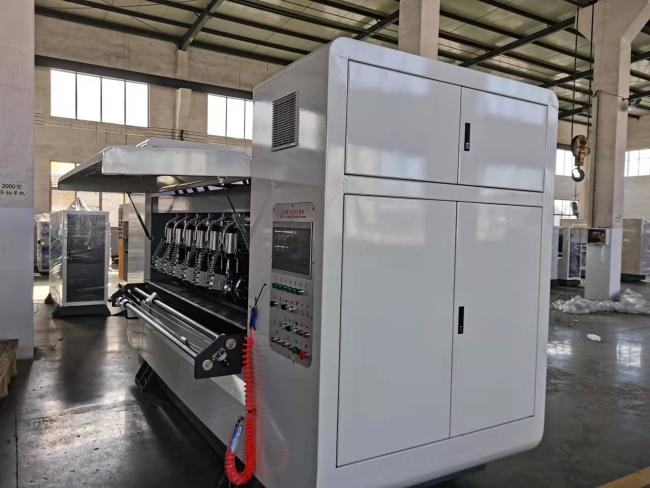

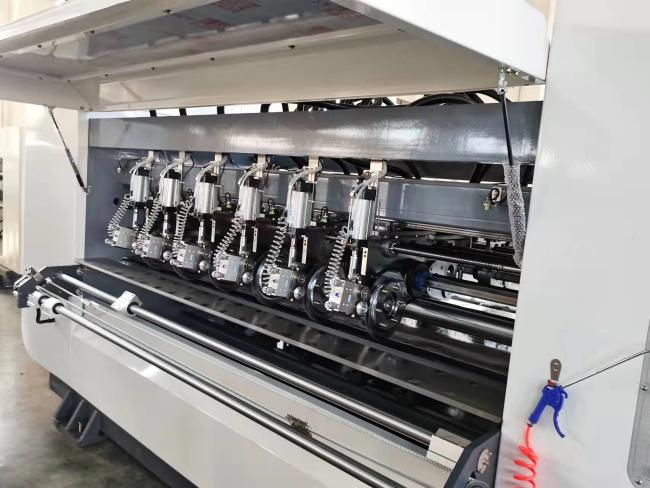

Product picture
| Function and Features |
| 1. Individual step motor and controller on each slitter and scorer sets,quick and accurate |
| order change. |
| 2.Slitters and scorers are inverter controlled,speed synchronizes with board speed. |
| 3.Two rows of scorers,realizes minimum scorer spacing is 0mm. |
| 4.There are three types of scorers. Front row: Male-to-flat/ Pre-score; Back row: Male-to-female. |
| 5.Electric score-depth adjust. |
| 6.Alloyed steel thin-blades,sharp and long life of over 800 million meters ,auto sharpening. |
| 7.Standard motorized body left-right rectification controlling system. |
| 8. Individual sealed electrical cabinet,dust-free,constant temperature and humidity ensure longer life. |
| 9.Standard touch screen monitor,easy to operate. |
| 10.Standard communication interface,easy to link with management system. |
| 11. You can add color code tracker or absorption of waste. |
| 12.A memory of 999 orders.Non-stop changeover or manual change over can be realized. |
| 13, Design speed:150mimin,200mmin, Woking Width 1400km2200mm |
| 14, Using a thin tungsten stoal alloy blade, blade sherp, long Ife of more than 8 miton meters. |
