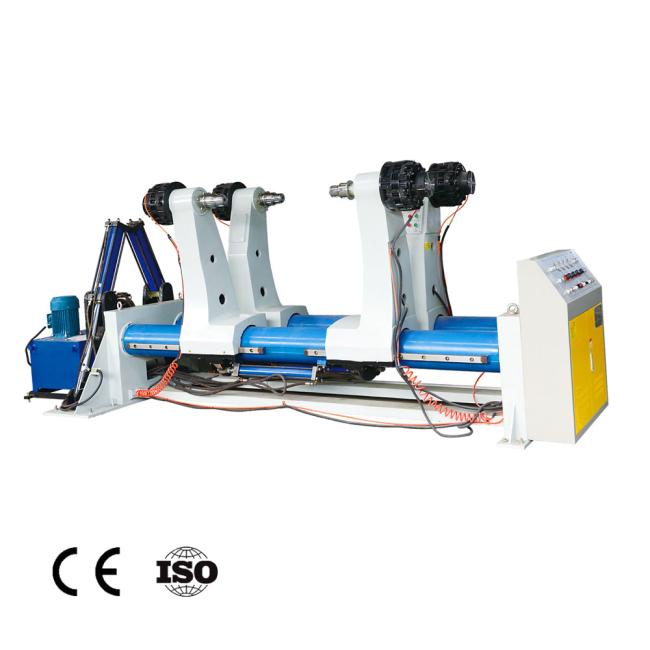

800-2200mm Rotate 360 degrees Hydualic Shaftless Mill Roll Stand

Techniacl parameters:

1. Max diameter of raw paper can be hold: Ø1500mm
2. Expiry width: 400mm-1800mm
3. Five motors in total
4. Five rollers in total
5. Max holding weight: 2000kg(one arm)
6. Raw paper lift-lower, clamp,loosen,movement,contraposition are controlled by electrical.
7. Raw paper tension adjustment adopts pneumatic or manual brakes
8. The top jaw is taper or bulge style
9. Max paper roll diameter: 1600mm
10. Drive or arm: Electric action of up and down, loose and tight, move and center.
11. Tension control equipped with pneumatic brake, manual control, also can connect with the machine online control.

Techniacl parameters:

1. Max diameter of raw paper can be hold: Ø1500mm
2. Expiry width: 400mm-1800mm
3. Five motors in total
4. Five rollers in total
5. Max holding weight: 2000kg(one arm)
6. Raw paper lift-lower, clamp,loosen,movement,contraposition are controlled by electrical.
7. Raw paper tension adjustment adopts pneumatic or manual brakes
8. The top jaw is taper or bulge style
9. Max paper roll diameter: 1600mm
10. Drive or arm: Electric action of up and down, loose and tight, move and center.
11. Tension control equipped with pneumatic brake, manual control, also can connect with the machine online control.

Structural Features:

1. Symmetrical structure can hold two bunches paper rollers at the same time and can working
with nonstop; Mechanical driving to achieve clamping, loosening, lifting-lowering, centering,left-right translation of raw paper.

2.Expiry woeking speed:1600mm.
3. Max holding weight for single arm: 2000kg
4. Each stand is equipped with two paper feeding guide rail and two paper feeding trolley; The guide rails longs 4500mm, and are made by the welding of 14 channel steel and guidepost, the trolleys are welded by steel plate whose length is 10 mm.
5. Disc brake with positioning screw below.
6. Electrical components centralized control with automatic inflatable paper clamp.
