Lum 1800 Singlefacer Fast Speed Fingerless Type
Price:
800$/set
MOQ:
1
Delivery Time:
20
Brand:
Aodong &LUM
Product Description

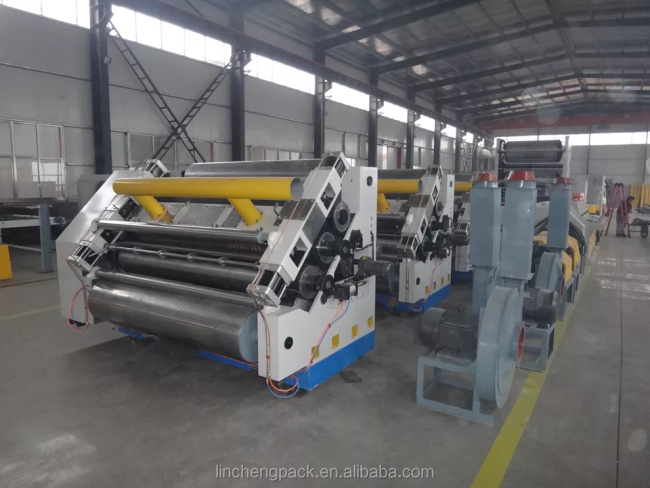

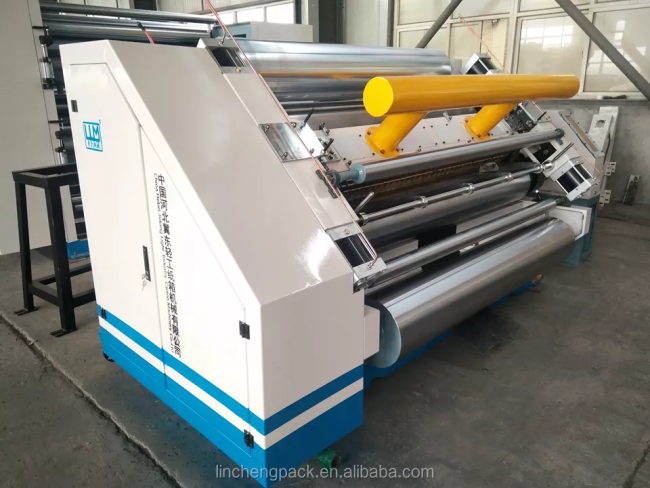

LUM 1800 High Speed Fingerless Single Facer Machine
Parameter sheet
| Type | Automatic |
| Product name | LUM 1800 High Speed Fingerless Single Facer Machine |
| Voltage | 220V 380V/50HZ |
| Function | To make cardboard for two layers |
| Usage | Making Carton |
| Speed | 60-100m/min |
| Application | Machinery & Hardware |
| Power | 22KW, 40-48.5kw, |
Main Features
1. Paper feeding way is vacuum suction way and perfect flute formation in high speed production.
2. Available width: 800mm, 1000mm, 1200mm, 1400 mm,1600 mm,1800 mm,2000 mm,2200mm,2500mm.
3. Flute type: A, C, B, D, E, F, G, UV
4. corrugated roller: φ280-φ320mm-φ360mm
5. Drive adopts universal joints, isolate the vibration source which make transmission more stable, reliable.
6. Driven gearbox adopts immersion oil lubrication, reduce noise, universal joint transmission. Separate structure is independent control and transmission more stable.
7. The glue coating part adopt automatic circulating glue feeding way (manual or electrical isolation device)
8. Pneumatic control to adjust the glue feeding and adjust gluing capacity electrically or manually
9. The gap between glue roller and absorption corrugated roller is precision measurement, electric adjustment and automatic adjustment according to the machine speed.
10. The glue part can drive alone which easy for maintenance and clean.
11. The corrugated roller materials 50CrMo alloy, Hardness can reach more than HRC60 which ensures good wear-resistance and long life service.
2. Available width: 800mm, 1000mm, 1200mm, 1400 mm,1600 mm,1800 mm,2000 mm,2200mm,2500mm.
3. Flute type: A, C, B, D, E, F, G, UV
4. corrugated roller: φ280-φ320mm-φ360mm
5. Drive adopts universal joints, isolate the vibration source which make transmission more stable, reliable.
6. Driven gearbox adopts immersion oil lubrication, reduce noise, universal joint transmission. Separate structure is independent control and transmission more stable.
7. The glue coating part adopt automatic circulating glue feeding way (manual or electrical isolation device)
8. Pneumatic control to adjust the glue feeding and adjust gluing capacity electrically or manually
9. The gap between glue roller and absorption corrugated roller is precision measurement, electric adjustment and automatic adjustment according to the machine speed.
10. The glue part can drive alone which easy for maintenance and clean.
11. The corrugated roller materials 50CrMo alloy, Hardness can reach more than HRC60 which ensures good wear-resistance and long life service.
