Label Feeder for I-Pulse SMT Mounter - 60mm / 80mm / 100mm Label Feeder | INFITEK SMT Solutions

This label feeder is suitable for the peeling and feeding of roll materials such as paper labels and various protective films. It does not need to purchase a labeling machine separately. This can be used with an I-Pulse brand placement machine to realize the roll-type material attachment of PCB boards.

This label feeder is compatible with a variety of materials, whether it is paper materials of FPC reinforced steel sheets, all kinds of Mylar tape, foam, dust-proof net, high-temperature tape, and other roll materials can be used for label flying Up to a label feeder can also be applied to a variety of sizes of materials, while supporting single-row or multiple row label feeding to maximize the application of the function of the placement machine.

This product adopts an industrial intelligent design. Independent algorithm main control system plus closed-loop control power structure, fast feeding speed, and high precision. Various feeding parameters can be displayed and set through the touch screen, and the operation is simple and easy to use; the multifunctional UI man-machine interaction interface can realize hierarchical authority management according to the password, reducing human misoperation and failure.

I-Pulse Label Feeder Part Numbers

Features:

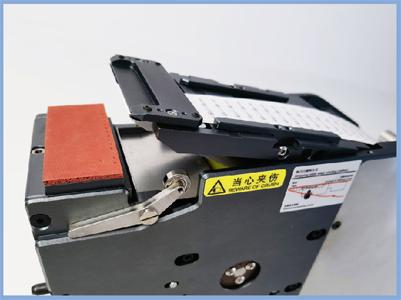

The tangent locking design facilitates the opening and closing of the cover and the feeding, and the line change is simple and fast; the double-angle peeling force plate and the vacuum adsorption platform are added, which has a significant recording effect for high-viscosity materials.

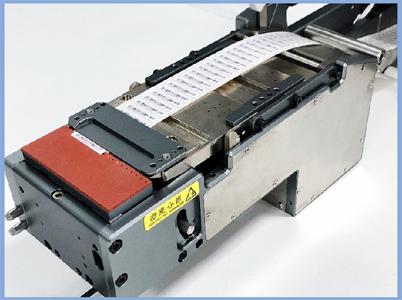

The multi-head high-sensitivity fiber optic sensor supports up to 12 rows of labels to be supplied at the same time; the magnetic pressure cover can adjust the gap of the material, and the sliding rib is suitable for a variety of sizes of labels.

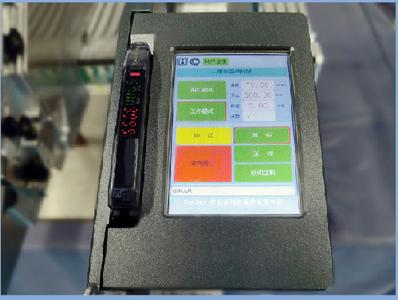

The 3.5-inch high-definition touch screen displays timely product information, and can also set the parameters of each company. The operation interface password classification is more scientific, the common basic information is distributed in the main interface, and the in-depth customized information requires professional engineers to enter the background according to the authority password.

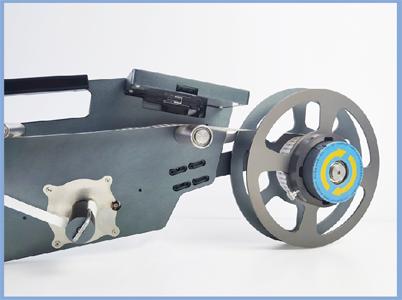

The rewinding wheel equipped with an independent power motor is more stable and effective than the belt drive mechanism. The standard 3-inch outer diameter mechanical tension hanger shaft, and the optional 6-inch outer diameter tension shaft assembly can be used for multi-size inner diameter roll labels, and the unwinding box assembly can also be customized.
