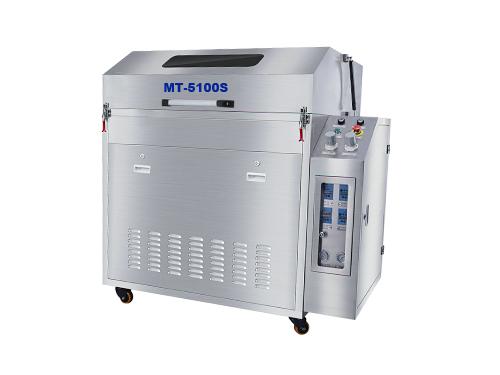

INFINITE™  MT-5100S One-button simple operation PCBA cleaning machine for PCBA is distributed by  Infinite Automation Co., Ltd.  MT-5100S three-prevention and control tool cleaning machine is mainly used for regular cleaning of PCBA three-prevention and control tools. This machine can also be used for PCBA cleaning after spraying three-prevention.  MT-5100S PCBA cleaning machine adopts pneumatic control, easy to operate, and safe to use.  MT-5100S PCBA cleaning machine is fully pneumatically controlled. Water-based cleaning fluid or solvent can be used for cleaning.

Features of the machine:

1. Fully pneumatically controlled, no electricity is required to ensure the absolute safety of the cleaning process without any worries.

2. All stainless steel body, acid and alkali resistance, sturdy and durable, beautiful appearance.

3. One-button simple operation, specially designed cleaning mechanism to effectively remove the three-proof paint covering the surface of the fixture.

4. Airtight cleaning and rinsing. The cleaning liquid and rinsing liquid are circulated and filtered in the machine to reduce the use cost.

5. Water-based cleaning fluid or solvent can be used for cleaning.

6. The standard is equipped with the function of automatically adding and draining rinsing liquid.

7. Inner lock type safety design, the machine stops working immediately when the door is opened.

8. Imported rotating motor to ensure smooth cleaning operation.

Machine specifications:

MT-5100S specification

Basket size: Φ1000 x H 200(mm)

Sprinkler System: Top, bottom, front, Omni-directional rotating spray cleaning and rinsing

3-stage filtration system: 1mm filter/50um filter/20um filter element

Cleaning time: 5~15min

Rinsing time: 1~2min

Drying time: 5~10min

Cleaning liquid tank capacity: 80L

Rinsing tank capacity: 80L

Injection pressure: 2~4kg/cm2

Filtering system: 2mm/100um/20um

Gas source: 0.5~0.7Mpa, 800~1000L/min

Machine size: L1450 x W1550 x H 1400 (mm)

Machine weight: 480KG
