14G-34G Glue Dispensing Needle
High-quality KK spear plastic body and polished stainless steel needle tube supplied by Infinite Automation Co., Ltd. INFINITE™ KK spear plastic and steel needle are made from high-quality plastic and stainless steel material for durability assurance. INFINITE™ MT screw-mouth plastic steel needle stainless steel needle tube is strictly polished and processed without burrs. The plastic seat part is made of PP material. MT series plastic and steel glue dispensing needles have a unique double-threaded design that is easy to join and lock without loosening. This design avoids the easy bonding of conventional dispensing needles. This glue needle greatly eliminates the risk of corrosion from certain glue or liquids, which greatly increases its service life. This needle can be lengthened or shortened according to the actual needs of users, such as 38mm, 30mm, 25m, 8mm. The needle can also be bend at an angle, such as 45°, 90°.

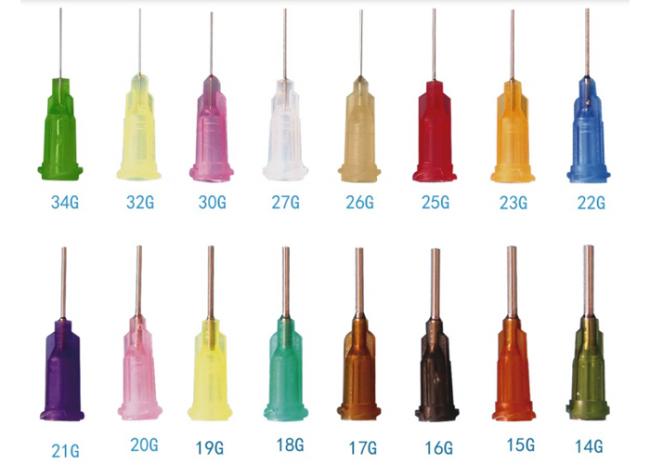

INFINITE™ KK spear plastic and steel needle
Parameter table: length unit mm
| Part Number | Inner Diameter | Outer Diameter | Color |
| MT-KKN-16G | 1.25 | 1.61 | |
| MT-KKN-18G | 0.9 | 1.26 | |
| MT-KKN-19G | 0.7 | 1.06 | |
| MT-KKN-20G | 0.6 | 0.9 | |
| MT-KKN-21G | 0.51 | 0.81 | |
| MT-KKN-22G | 0.41 | 0.71 | |
| MT-KKN-23G | 0.33 | 0.63 | |
| MT-KKN-24G | 0.3 | 0.55 | |
| MT-KKN-25G | 0.26 | 0.51 | |
| MT-KKN-26G | 0.23 | 0.45 | |
| MT-KKN-27G | 0.2 | 0.4 |
