Infinite Automation Co., Ltd. is a worldwide distributor of SMT Production equipment and second-hand SMT Chip Mounter Machines. One of our on-stock and ready for purchase YAMAHA Chip Mounter is our pre-owned and reconditioned YV100XG model high-speed and high-precision multi-functional modular placement machine. Yamaha YV100XG Chip Mounter is a high-speed placement machine with a capacity of 0.18 seconds/CHIP and a total of 16200CPH (grain/hour) at its best condition. Yamaha YV100XG multi-functional modular placement machine is equipped with 2 high-resolution multi-vision digital cameras. PCB board types applicable for YV100XG High-speed and high-precision placement machine are M type: L460*W335(MAX)-L50*W50(MIN) and L type: L460*W440(MAX)-L50*W50(MIN).

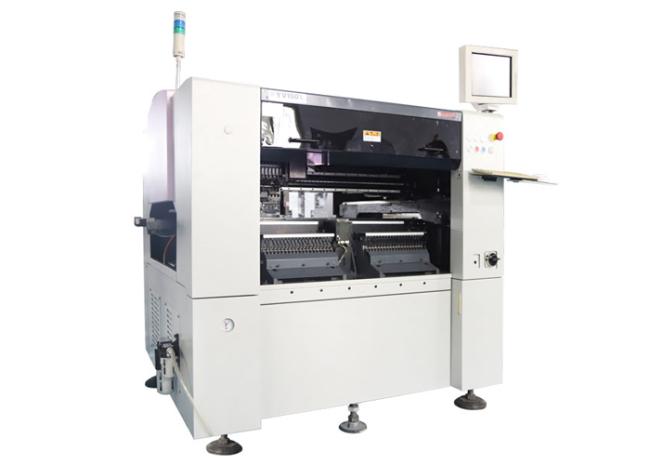

Yamaha YV100XG Chip Mounter

Features:

• High-speed and high-precision multi-functional modular placement machine
• 0.18 seconds/CHIP ultra high speed placement (best condition) 16200CPH (grain/hour)
• In the IPC9850 state, the patching speed is up to 16200CPH (corresponding to 0.22 seconds/CHIP)
• Mount 0603 components, the whole precision up to ± 50 microns, full repeat accuracy up to ± 30 microns
• Wide range of applications, from 0201 (inch) micro-components to 31mm QFP large components
• Using 2 high-resolution multi-vision digital cameras
• Continuous solder ball recognition for CSP/BGA components, including the determination of the defect of solder balls
• The YAMAHA patented flight change nozzle can be selected, which can effectively reduce the machine idle loss
• The best choice for universal type
• The Y-axis is driven by high-power servo amplifiers and high-rigidity screw rods at the left and right ends.
• This newly developed fully-fixed dual-driver technology accelerates acceleration and coordination through both ends to drive and completes the acceleration function. Reduced positioning time.

Specifications:

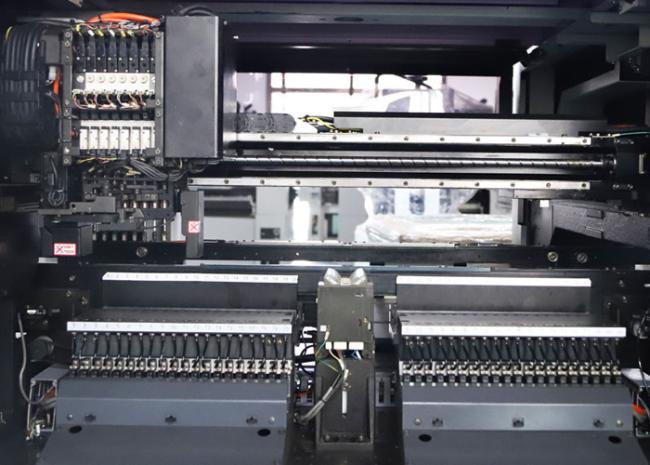

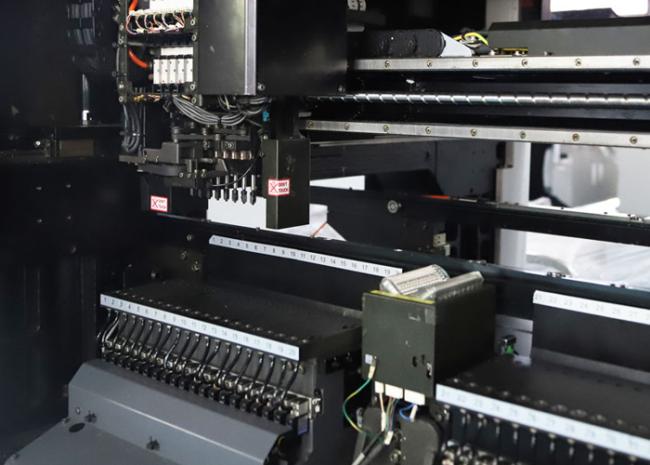

Images:
