Production Ready KE-2080M PCB SMT Machine JUKI Chip Mounter
Infinite Automation Co., Ltd. is offering the best reconditioned pre-owned Juki SMT pick and place machines. Among our ready-to-purchase Juki SMT machines is the production-ready KE-2080M model JUKI Chip Mounter designed for high-density placements. Juki KE-2080M SMT machine is the best flexible placement system for high-density placements. The ultra-flexible KE-2080 can place a wide range of components from 0402 (01005) and ICs, to odd-form, all at industry-leading accuracy and speed. Juki KE-2080M Flexible Placement Machine is equipped with a Vision centering system featuring bottom, side, and backlighting, all ball recognition, and split recognition.
JUKI Chip Mounter – KE-2080M
Features:
- The best flexible placement system for high-density placements. The ultra-flexible KE-2080 can place a wide range of components from 0402 (01005) and ICs, to odd-form, all at industry-leading accuracy and speed.
- 20,200CPH(0.178Sec/chip)(laser centering/optimum)
- 16,700CPH: chip (laser centering / IPC9850)
- 1,850CPH: IC (vision centering / effective tact), 4,860CPH with MNVC option.

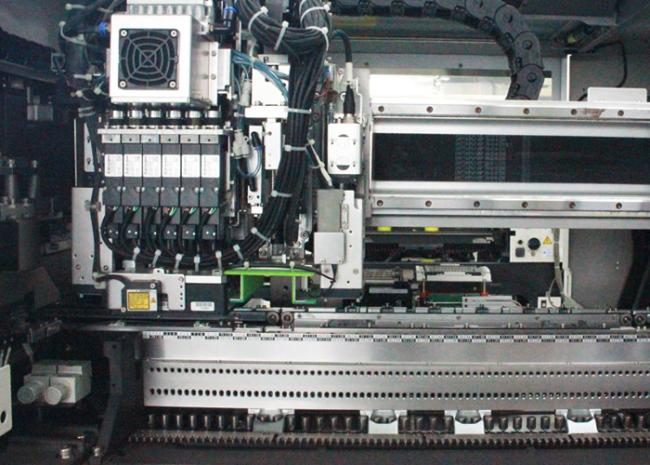

- One multi-nozzle laser head (6 nozzles) plus one high-resolution head (1 nozzle)
- From 0402 (01005) to 74mm square components or 50×150mm
- Vision centering system (featuring bottom, side, and backlighting, all ball recognition, and split recognition)
Specifications:
| Model | KE 2080M |
| Board size | (330×250mm) |
| Component height | 6MM |
| Laser recognition | 0402～□33.5mm |
| Standard camera | □3mm～□74mm or 50×150mm |
| High-resolution camera (option) | 1.0×0.5mm※3～□48mm or 24×72mm |
| Placement speed | 0.178Sec./chip(20,200CPH) |
| Vision recognition | ±0.03mm (±0.04mm when using MNVC) |
| Transport Direction | Left-> Right |
| Feeder inputs | Max. 80 on 8mm T/F※6 |
| Power supply | 200 to 415 VAC, 3-phase |
| Apparent power | 3kVA |
| Operating air pressure | 0.5±0.05Mpa |
| Air consumption | 403L/min (Opt.:Vacuum Pump 50L/min) |
| Machine dimensions | 1,400×1,393×1,455mm |
| Weight | 1,540kg |
