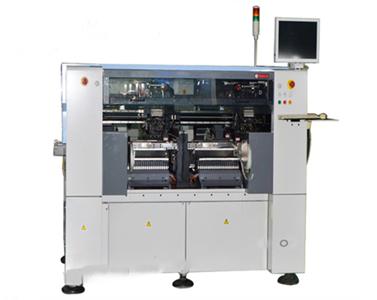

Yamaha YG200 Pick and Place Machine 45,000CPH Original And Used

YAMAHA YG200 is a high-speed SMD Surface Mounting machine. This Speed mounter has 4 tables and 24 head nozzles, YAMAHA YG200 SMT Machine is mainly used for mounting chip components, like 0201/0402/0603/0805/1206, and is also capable of mounting small QFN and IC. YAMAHA YG200 is capable of reaching a maximum mounting speed of up to 45000CPH and can support from 0402-14mm QFN components. YAMAHA YG200 is applicable to PCB size 330(L) x 250(W) maximum.

Features:

High-speed chip shooter YG200 (Model: KGT-100)
Applicable PCB: L330×W250mm to L50×W50mm
Through-put (Optimum): 45,000CPH(0.08sec/CHIP equivalent)
Mounting accuracy: (Yamaha's standard components)
Absolute accuracy (μ+3σ): +/-0.05mm/CHIP, repeatability(3σ): +/-0.03mm/CHIP

Applicable components: 0402 (Metric base)to 14*mm components
Height of components which can be mounted: 6.5mm or less
Allowable height on PCB surface before transport 6.5mm or less
Number of component types: 80 types(Max, 8mm tape reel conversion)

Power supply 3-phase AC 200/208/220/240/380/400/416V +/-10%
50/60HzAir supply source 0.55MPa or more, in clean, dry states
External dimension, 950×W1, 408(End of cover)×H1, 450mm (cover top) L1, 950×W1, 608
(End of guide for feeder carriage)×H1, 450mm (cover top)
Weight approx. 2080kg
