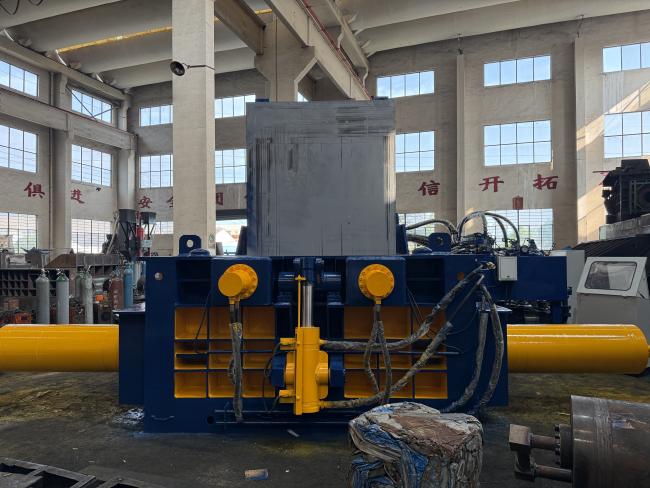

315 Tons Power Hydraulic Scrap Baler with Adjustable Bale Length and PLC + Remote Control for Metal Recycling
Industrial Adaptability: Hydraulic Scrap Baler
Product Overview
The Y81-QF-315QH supports adjustable bale lengths (100–1500 mm) while width and height remain fixed at 600 × 600 mm, making it suitable for diverse metal recycling operations. Its hydraulic system and cylinder design allow consistent performance across varying scrap dimensions.
Applications
- Steel, aluminum, and copper scrap recycling
- Automotive scrap yards
- Industrial plant waste management
Core Advantages
- Adjustable Bale Length (100–1500 mm) → Supports multiple material types and varying input quantities
- Consistent Compression → Hydraulic system ensures uniform density ≥2000 kg/m³
- Robust Components → Heavy-duty cylinders and NM500H wear plates enable long-term adaptability
How It Works
Operators set the desired bale length while the baler compresses material through hydraulic cylinders. The turnout cylinder handles varying lengths seamlessly, ensuring continuous production with minimal downtime.
Specifications
| Parameter | Specification |
|---|---|
| Bale Size | 600 × 600 mm fixed width/height, 100–1500 mm length |
| Max Thrust | 3150 kN |
| Bale Density | ≥2000 kg/m³ |
| Hydraulic Pressure | ≤25 MPa |
| Motor | YX3-225-4 ×3 |
How to Choose
Ideal for facilities handling diverse scrap materials requiring flexible bale lengths while maintaining high-density output.
What Problem It Solves
- Fixed-size bales → adjustable length
- Material handling variability → stable hydraulic compression
- Equipment downtime → durable NM500H plates and quality components
FAQ
Q1: What is the maximum bale size?
A1: The bale size is 600 × 600 mm in width and height, with a variable length of 100–1500 mm depending on the amount of material loaded.
Q2: Can the machine operate continuously?
A2: Yes, the hydraulic system is designed for stable long-term operation under continuous load, supported by durable cylinders and NM500H wear plates.
Q3: What materials can be processed?
A3: The baler handles ferrous and non-ferrous metals, including steel, aluminum, and copper scrap.
Q4: How does the automatic PLC control improve operation?
A4: PLC automatic control ensures consistent bale density, reduces manual operation risk, and allows remote monitoring for high-volume or hazardous environments.
Q5: How adjustable is the bale length?
A5: The bale length can be adjusted between 100 and 1500 mm based on material input, while width and height remain fixed at 600 × 600 mm, ensuring consistent compaction quality.
