Fast Cycle & High Efficiency: Industrial Hydraulic Metal Baler

Product Overview

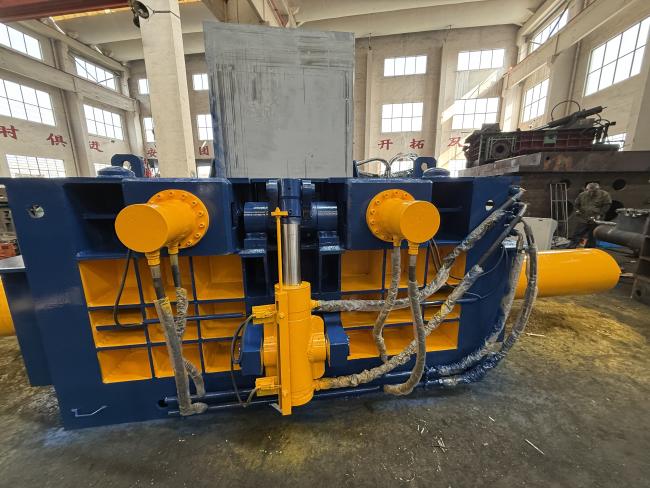

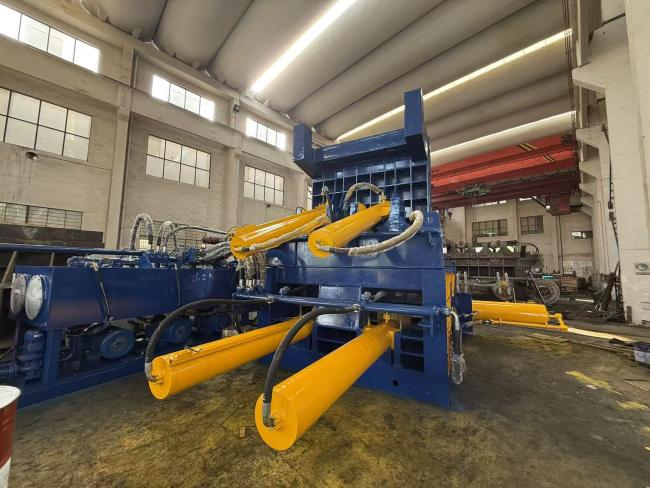

The Y81-QF-315QH delivers rapid production cycles (~105 s per empty load) while maintaining consistent bale quality. With three hydraulic pumps and motors working in coordination, it is optimized for high-throughput scrap recycling operations.

Applications

• High-volume scrap metal recycling
• Automotive and industrial waste processing
• Continuous plant operations requiring rapid bale output

Core Advantages

• Fast Cycle Time (~105 s) → Supports high-throughput industrial operations
• Synchronized Motors and Pumps → Three sets of 45 kW motors and 250 ml/r pumps maintain consistent compression
• Stable Bale Quality → High-pressure hydraulic system ensures uniform density even under rapid cycles

How It Works

The baler cycles material loading, compression, and turnout in a tightly synchronized sequence. The hydraulic system ensures each bale reaches consistent density with minimal operator intervention.

Specifications

How to Choose

Select for facilities prioritizing throughput without sacrificing bale consistency or safety.

What Problem It Solves

• Production bottlenecks → synchronized multi-pump operation
• Inconsistent density during rapid cycles → hydraulic stability ≤25 MPa
• Operator fatigue → PLC and remote operation support

FAQ

Q1: What is the maximum bale size?
A1: The bale size is 600 × 600 mm in width and height, with a variable length of 100–1500 mm depending on the amount of material loaded.

Q2: Can the machine operate continuously?
A2: Yes, the hydraulic system is designed for stable long-term operation under continuous load, supported by durable cylinders and NM500H wear plates.

Q3: What materials can be processed?
A3: The baler handles ferrous and non-ferrous metals, including steel, aluminum, and copper scrap.

Q4: How does the automatic PLC control improve operation?
A4: PLC automatic control ensures consistent bale density, reduces manual operation risk, and allows remote monitoring for high-volume or hazardous environments.

Q5: How adjustable is the bale length?
A5: The bale length can be adjusted between 100 and 1500 mm based on material input, while width and height remain fixed at 600 × 600 mm, ensuring consistent compaction quality.
