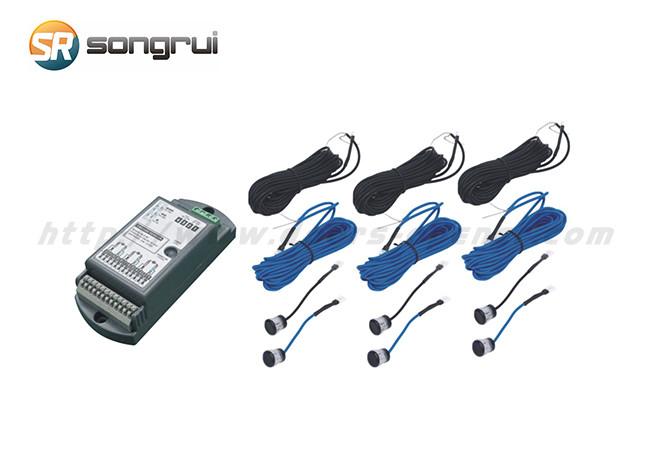

Triple Type Photocell Safety Beam Infrared Radar Sensor For Automatic Door Opening Operator Opener 12 Volt Dc Photocell
Triple Type Photocell Safety Beam Infrared Radar Sensor For Automatic Door Opening Operator Opener 12 Volt Dc Photocell
Features:
1. It has N.C. and N.O. relay output, and can work with different type automatic controller.
2. The photocall's eye is made by special material to avoid the sunshine's affect.
3. The controller will alarm if the eyes having problem.
4. It can work with two pairs photocell's eyes.
Product Specification:
|
Triple type photocell infrared radar sensor safty automatic door opening with presence function infrared operator opener(YS117) |
|
|
Approval |
CE & ISO9001 |
|
Power supply |
AC/DC 12-30V |
|
Static current |
12V 35mA |
|
Action current |
72mA |
|
The maximum transmit distance |
Max 10m |
|
NO or NC contact |
Done by NO./NC contact selection |
|
Working environment temperature |
-42℃ to 45℃ |
|
Working environment humidity |
10 to 90%RH |
|
Appearance dimensions( controller) |
123*50*32mm(L*W*H) |
|
Appearance dimensions(Magic eye head) |
19*13mm(L*D) |
Our service:
Welcome OEM&ODM orders
1. Logo printing on products;
2. Customized color box or carton;
3. Any your ideas on products we can help you to design and put it into production.
