ASME B16.11 PN16 3000LB Forged Steel Threaded Fittings

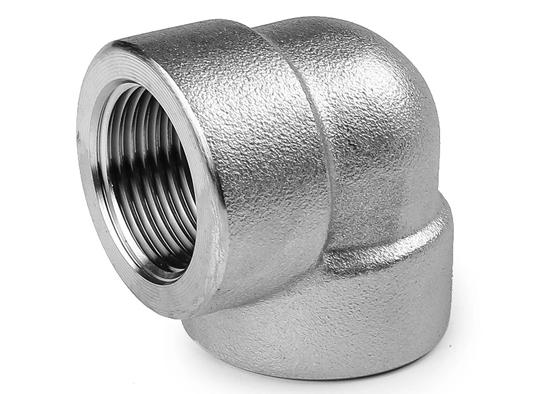

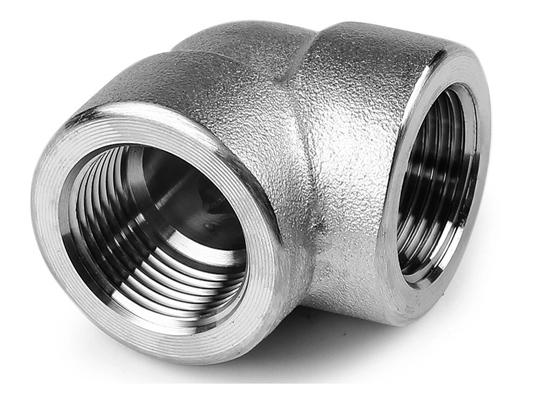

Stainless Steel B16.11 Forged Fitting Threaded 90 Degree Elbow/ 3000LB 6000LB 9000LB
Threaded elbows (also known as threaded elbows) are pipe fittings that change the direction of the pipeline in the pipeline system. According to the angle, there are 45° and 90°, and other abnormal angle elbows such as 60° are also included according to engineering needs. The materials of threaded elbows include cast iron, stainless steel, alloy steel, forgeable cast iron, carbon steel, non-ferrous metals and plastics.
Product Features
The threaded elbow consists of a screw port, a bent part, etc., and is characterized by a threaded groove on the screw port. In a pipeline system, the threaded elbow is a pipe fitting that changes the direction of the pipeline.
The pressure of threaded elbows: 2000LB, 3000LB, 6000LB threaded elbows, the main manufacturing standards generally include GB/T14383, ASME B16.11, BS 3799
|
Nominal Diameter |
Center to End |
Outside Diameter |
Wall Thickness |
Length of Thread |
|||||||||||
| A |
Threaded elbow, threaded tee, Threaded cross Dmin |
Threaded elbow, threaded tee, Threaded cross Cmin |
|||||||||||||
|
90° Elbow Tee Cross |
45°Elbow |
||||||||||||||
| DN | NPS |
2000 LB |
3000 LB |
6000 LB |
2000 LB |
3000 LB |
6000 LB |
2000 LB |
3000 LB |
6000 LB |
2000 LB |
3000 LB |
6000 LB |
NPT | Rc |
| Sch80 | Sch160 | XXS | Sch80 | Sch160 | XXS | Sch80 | Sch160 | XXS | Sch80 | Sch160 | XXS | ||||
| 6 | 1/8 | 21 | 21 | 25 | 17 | 17 | 19 | 22 | 22 | 25 | 3.0 | 3.0 | 6.5 | 6.5 | 6.5 |
| 8 | 1/4 | 21 | 25 | 29 | 17 | 19 | 22 | 22 | 25 | 33 | 3.0 | 3.5 | 6.5 | 8.0 | 10.0 |
| 10 | 3/8 | 25 | 29 | 33 | 19 | 22 | 25 | 25 | 33 | 38 | 3.0 | 3.5 | 7.0 | 9.0 | 10.5 |
| 15 | 1/2 | 29 | 33 | 38 | 22 | 25 | 29 | 33 | 38 | 46 | 3.0 | 4.0 | 8.0 | 11.0 | 13.5 |
| 20 | 3/4 | 33 | 38 | 44 | 25 | 29 | 33 | 38 | 46 | 56 | 3.0 | 4.5 | 8.5 | 12.5 | 14.0 |
| 25 | 1 | 38 | 44 | 51 | 29 | 33 | 35 | 46 | 56 | 62 | 3.5 | 5.0 | 10.0 | 14.5 | 17.5 |
| 32 | 1.1/4 | 44 | 51 | 60 | 33 | 35 | 43 | 56 | 62 | 75 | 4.0 | 5.5 | 10.5 | 17.0 | 18.0 |
| 40 | 1.1/2 | 51 | 60 | 64 | 35 | 43 | 44 | 62 | 75 | 84 | 4.0 | 5.5 | 11.0 | 18.0 | 18.5 |
| 50 | 2 | 60 | 64 | 83 | 43 | 45 | 52 | 75 | 84 | 102 | 4.5 | 7.0 | 12.0 | 19.0 | 19.0 |
| 65 | 2.1/2 | 76 | 83 | 95 | 52 | 52 | 64 | 92 | 102 | 121 | 5.5 | 7.5 | 15.5 | 23.5 | 29.0 |
| 80 | 3 | 86 | 96 | 106 | 64 | 64 | 79 | 110 | 121 | 146 | 6.0 | 9.0 | 16.5 | 26.0 | 30.0 |
| 100 | 4 | 106 | 114 | 114 | 79 | 79 | 79 | 146 | 152 | 152 | 6.5 | 11.0 | 18.5 | 27.5 | 33.0 |
