304 Stainless Steel Wire Braided Expansion Joint Power Plant Accessories

Price Negotiable

Price: USD 10 per piece

MOQ: 1 PCS

Delivery Time: 3-10 working days

Brand: Ze Xu

Product Description

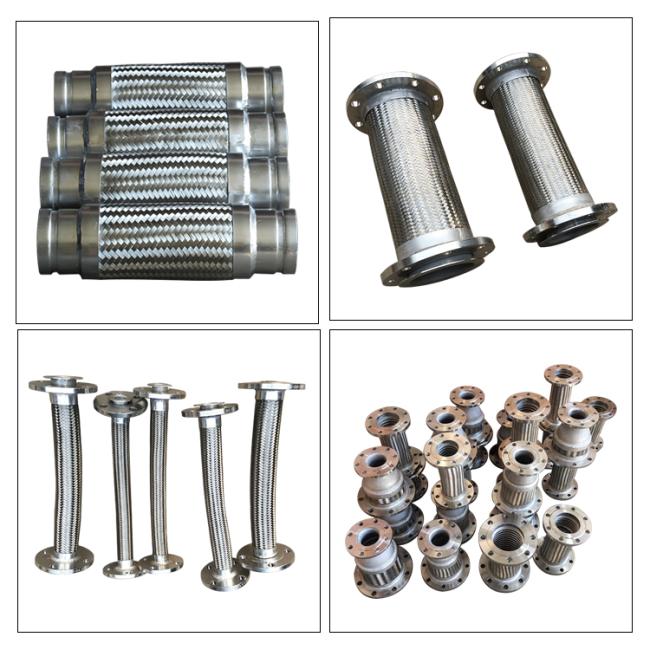

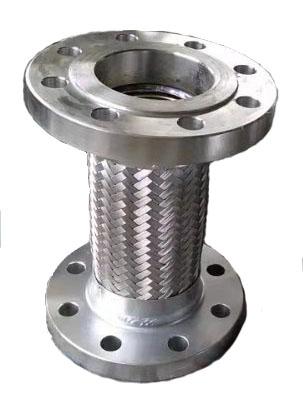

304 Stainless Steel Wire Braided Flexible Expansion Joint Corrugated Metal Hose With Flange

Stainless Steel Braided Joint is a kind of flexible hose with high quality in modern industrial pipeline.

The inner tube of metal bellows hose is spiral or annular thin-wall stainless steel bellows.

The outer braid mesh of bellow pipe(corrugated pipe) is made of stainless steel wire and steel belt according to certain parameters.

The joints or flanges on both ends of the hose are matched to the joint or flange of the customer's pipe.

Technical parameter of metal hose with flange
Nominal diameter DN	Inner diameter (mm)	Outer diameter		Minimum bending radius		Working pressure
		Bellows	Braid mesh	Static	Dynamic	Single braid mesh	Double braid mesh
8	8.8	13.2	14.4	50	110	15	20
10	11.7	16.5	17.7	65	145	185	20
15	13.5	19.5	21.1	80	180	18	20
20	20.0	27	28.6	120	270	10	15
25	27.0	34.5	36.1	160	360	6.3	10
32	32.0	40	41.6	175	400	4.0	6.3
40	39.6	52	53.6	225	510	4.0	6.3
50	49.7	62	63.6	280	640	3.0	5.0
65	61.2	80.2	81.8	410	915	3.0	5.0
80	79.0	96.3	97.9	486	1030	3.0	5.0
100	101.2	119.6	121.2	610	1340	2.5	4.0
125	124.1	145.3	146.9	700	1540	2.5	4.0
150	149.4	180.8	182.4	810	1780	2.5	4.0
200	176.0	240	243.2	1000	2000	2.5	4.0
250	248.0	290	294	1250	2500	2.5	4.0
300	298.0	350	354	1500	3000	1.6	2.5
350	347.0	400	404.8	1750	3500	1.6	2.5
400	397.6	460	464.8	2000	4000	1.6	2.5
