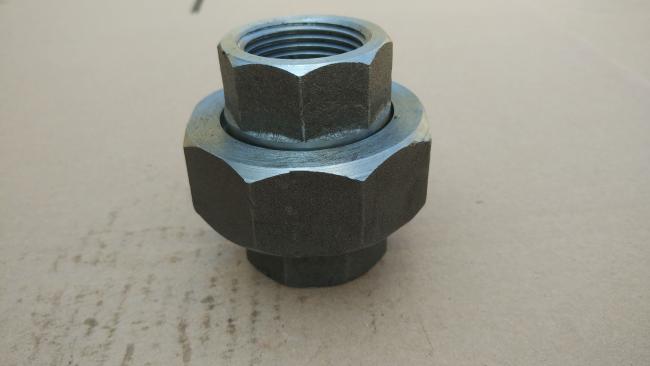

A105n 3000 1 1/2" SW Stainless Steel Union Coupling Forged Pipe Fittings

Name: A105n 3000 1 1/2 SW Stainless Steel Union Coupling Forged Pipe Fittings
Brand: Hebei Zexu Pipe Manufacturing Co., Ltd.

Price Negotiable

Price: USD 5 per piece

MOQ: 1Pcs

Delivery Time: 3-7 Working day

Brand: Ze Xu

Product Description

Supply Ability

Supply Ability: 500 Ton/Tons per Year

Packaging & Delivery

Packaging Details: packed by carton, then put into plywood case

Port: tianjin

Lead Time:

Quantity(Pieces)	1 - 5000	>5000
Est. Time(days)	15	To be negotiated

Specification

Size	1/8"-3"
Pressure	3000#
Connection end	thread or socket weld
Standard	MSS SP 83
Material	Carbon steel ,stainless steel and alloy steel

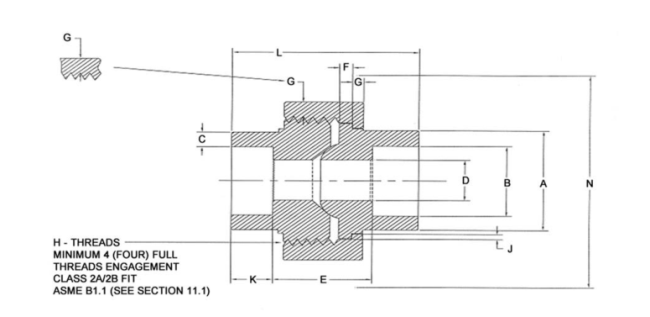

Class 3000 Pipe Unions -- Socket welding Ends Unit: inch
NPS	Pipe end Min.	Socket Bore Dia.	Socket wall Min.	Water way Bore (a)	Laying Length	Male flange Min.	Nut Min	Threads per inch	Bearing Min.
NPS	A	B	C	D	E	F	G	H	J
1/8	0.86	0.440 0.420	0.125	0.299 0.239	0.88 0.75	0.125	0.125	16	0.049
1/4	0.86	0.575 0.555	0.130	0.394 0.334	0.88 0.75	0.125	0.125	16	0.049
3/8	1.02	0.710 0.690	0.138	0.523 0.463	1.06 0.81	0.135	0.135	14	0.054
1/2	1.23	0.875 0.855	0.161	0.652 0.592	1.06 0.81	0.145	0.145	14	0.059
3/4	1.46	1.085 1.065	0.168	0.854 0.794	1.25 1.00	0.160	0.160	11	0.066
1	1.79	1.350 1.330	0.196	1.079 1.019	1.35 1.03	0.180	0.175	11	0.073
1 1/4	2.16	1.695 1.675	0.208	1.410 1.350	1.60 1.28	0.210	0.205	10	0.084
1 1/2	2.42	1.935 1.915	0.218	1.640 1.580	1.66 1.34	0.230	0.220	10	0.091
2	2.96	2.426 2.406	0.238	2.097 2.037	1.79 1.47	0.260	0.250	10	0.106
2 1/2	3.61	2.931 2.906	0.302	2.529 2.409	2.43 2.05	0.295	0.280	8	0.121
3	4.30	3.560 3.535	0.327	3.128 3.008	2.51 2.11	0.325	0.315	8	0.139

Class 3000 Pipe Unions -- Socket welding Ends Unit: inch
NPS	Depth of Socket Min.	Length Assem Nominal	Clear Assem. Nut
NPS	K	L	N
1/8	0.38	1.63	2.0
1/4	0.38	1.63	2.0
3/8	0.38	1.81	2.2
1/2	0.38	1.93	2.3
3/4	0.50	2.24	2.6
1	0.50	2.44	3.1
1 1/4	0.50	2.80	3.7
1 1/2	0.50	3.01	4.4
2	0.62	3.39	5.2
2 1/2	0.62	4.03	5.9
3	0.62	4.29	6.9

Q: Can you accept TPI?
A: Yes, sure. Welcome visit our factory and come here to inspect the goods and inspect production process.

Q: Can you supply Form e, Cerficiate of origin?
A: Yes, we can supply.

Q: Can you supply invoice and CO with chamber of commerce?
A: Yes, we can supply.

Q: Can you accept L/C deferred 30, 60, 90days?
A: We can. Please negotiate with sales.

Q: Can you accept O/A payment?
A: We can. Please negotiate with sales
.
Q: Can you supply samples?
A: Yes, some samples are free, please check with sales.
