1.5m S Bearing Guidance Seal WR 115x106x15 Guide Ring

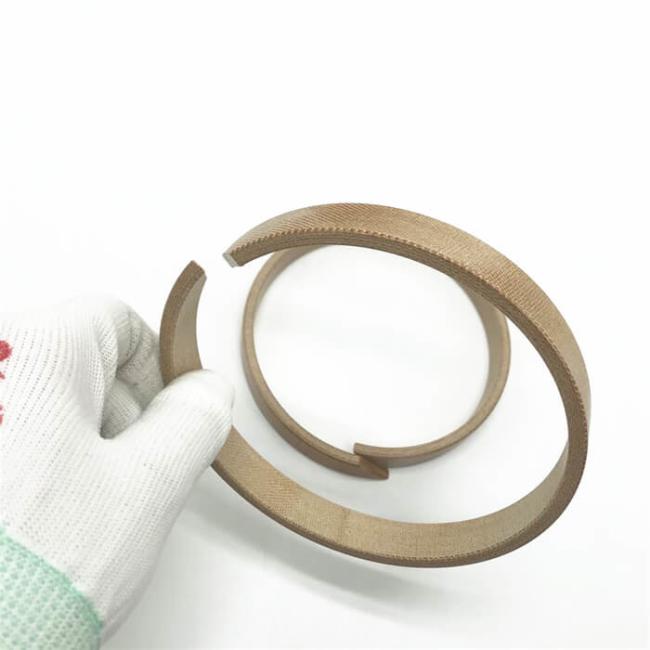

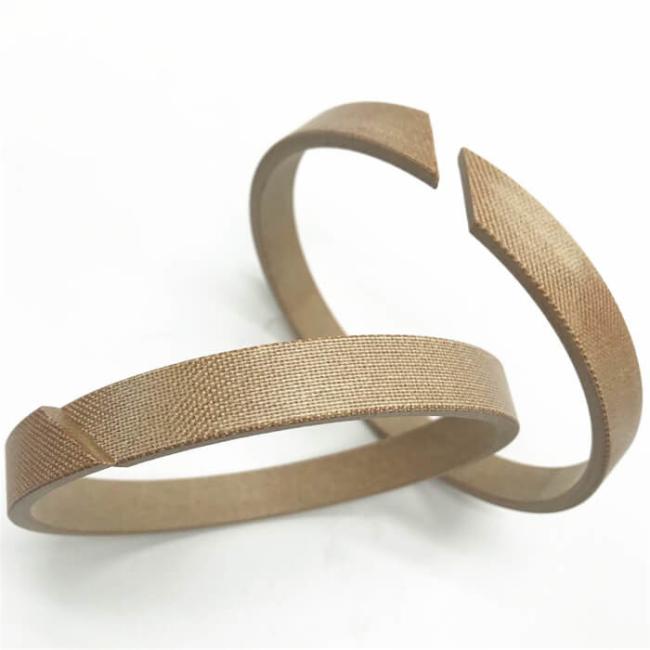

"Phenolic Resin Fabric Wear Ring/Guide Ring for Excavator Seal" Introduction:
The function of Hydraulic wear ring is to guide the shaft and hole sealing of a hydraulic cylinder, absorbing transverse forces. At the same time, it previents metal-to-metal contact, optimizing the performance of the sealing system.
1. Good dimensional stability,can absorb stock
2. Uniform distribution of the large radial force
3. Low coefficient of friction,good sliding performance
4. Higher load bearing capacity
5. Excellent wear resistance
6. Wipe effect
7. Easy to install
8. Long service life
|
We have these sizes for supply:
| 60*55*6.3 | 120*115*9.7 | 60*55*15 | 170*165*15 | 100*94*25 |
| 70*65*6.3 | 125*120*9.7 | 65*60*15 | 170*162*15 | 105*99*25 |
| 75*70*6.3 | 130*125*9.7 | 70*64*15 | 180*172*15 | 110*104*25 |
| 80*75*6.3 | 130*123*9.7 | 75*69*15 | 180*174*15 | 130*125*25 |
| 85*80*6.3 | 135*130*9.7 | 75*70*15 | 180*175*15 | 135*128*25 |
| 90*85*6.3 | 140*135*9.7 | 80*75*15 | 190*185*15 | 140*135*25 |
| 95*90*6.3 | 140*133*9.7 | 85*77*15 | 190*184*15 | 160*155*25 |
| 105*100*6.3 | 145*140*9.7 | 85*79*15 | 190*182*15 | 165*157*25 |
| 110*104*6.3 | 150*142*9.7 | 85*80*15 | 200*195*15 | 165*160*25 |
| 120*114*6.3 | 150*143*9.7 | 90*82*15 | 210*205*15 | 170*162*25 |
| 165*160*6.3 | 150*145*9.7 | 95*87*15 | 140*128*17.5 | 175*167*25 |
| 55*50*8.1 | 160*155*9.7 | 95*89*15 | 140*133*17.5 | 180*175*25 |
| 60*55*8.1 | 170*164*9.7 | 95*90*15 | 50*45*20 | 185*173*25 |
| 75*70*8.1 | 170*165*9.7 | 100*92*15 | 60*55*20 | 185*177*25 |
| 80*75*8.1 | 180*173*9.7 | 100*95*15 | 70*65*20 | 185*180*25 |
| 85*80*8.1 | 180*175*9.7 | 100*94*15 | 75*70*20 | 190*182*25 |
| 90*85*8.1 | 90*81*10 | 105*97*15 | 80*75*20 | 200*194*25 |
| 95*90*8.1 | 95*86*10 | 105*99*15 | 95*89*20 | 200*195*25 |
| 100*95*8.1 | 105*96*10 | 105*100*15 | 95*90*20 | 70*64*30 |
| 105*100*8.1 | 110*101*10 | 110*101*15 | 100*94*20 | 65*59*30 |
| 110*105*8.1 | 115*106*10 | 110*102*15 | 105*100*20 | 80*74*30 |
| 115*110*8.1 | 120*111*10 | 110*104*15 | 120*115*20 | 90*84*30 |
| 120*115*8.1 | 130*120*10 | 115*106*15 | 130*123*20 | 100*94*30 |
| 125*120*8.1 | 135*125*10 | 115*107*15 | 130*125*20 | 110*104*30 |
| 135*130*8.1 | 80*72*12.5 | 115*110*15 | 140*133*20 | 120*114*30 |
| 130*125*8.1 | 85*79*12.5 | 115*109*15 | 145*138*20 | 120*115*30 |
| 140*135*8.1 | 90*81*12.5 | 120*111*15 | 160*148*20 | 160*154*30 |
| 145*140*8.1 | 90*84*12.5 | 120*114*15 | 160*153*20 | 165*159*30 |
| 150*145*8.1 | 95*89*12.5 | 120*115*15 | 160*154*20 | 85*80*35 |
| 40*35*9.7 | 95*86*12.5 | 120*112*15 | 160*155*20 | 140*133*35 |
| 45*40*9.7 | 100*91*12.5 | 125*119*15 | 170*158*20 | 160*153*35 |
| 50*45*9.7 | 100*94*12.5 | 125*120*15 | 170*164*20 | 220*212*35 |
| 55*50*9.7 | 105*96*12.5 | 130*123*15 | 185*179*20 | 180*172*45 |
| 60*55*9.7 | 110*101*12.5 | 130*120*15 | 190*184*20 | 140*133*45 |
| 65*60*9.7 | 110*104*12.5 | 135*130*15 | 200*194*20 | 125*119*40 |
| 70*64*9.7 | 130*124*12.5 | 135*125*15 | 200*195*20 | 160*152*40 |
| 70*65*9.7 | 135*130*12.5 | 135*128*15 | 100*94*22.5 | 170*162*40 |
| 75*69*9.7 | 140*128*12.5 | 140*135*15 | 110*104*22.5 | 130*122*15 |
| 75*70*9.7 | 140*135*12.5 | 145*138*15 | 120*114*22.5 | 125*115*25 |
| 80*75*9.7 | 145*133*12.5 | 145*140*15 | 150*143*22.5 | 50*45*7 |
| 85*80*9.7 | 145*139*12.5 | 150*143*15 | 185*173*22.5 | 50*45*25 |
| 90*85*9.7 | 145*140*12.5 | 150*145*15 | 190*182*22.5 | 50*46*25 |
| 95*90*9.7 | 150*138*12.5 | 160*148*15 | 200*192*22.5 | 140*132*25 |
| 100*95*9.7 | 150*145*12.5 | 160*154*15 | 200*188*22.5 | 150*142*45 |
| 105*97*9.7 | 165*160*12.5 | 160*155*15 | 60*55*25 | 190*182*28.5 |
| 105*100*9.7 | 45*40*15 | 165*157*15 | 75*70*25 | 180*175*12 |
| 110*105*9.7 | 50*45*15 | 165*160*15 | 90*84*25 | 190*183*30 |
| 115*110*9.7 | 55*50*15 | 170*164*15 | 95*89*25 |
We also supply other series seal kits such as:
Cylinder seal kit
Control Valve Seal Kit
Hydraulic Pump Seal Kit
Swing Motor Seal Kit
Travel Motor Seal Kit
Center Joint Seal Kit
Breaker Seal Kit
Boxed O-Ring Kit
Tips: More information pls feel free to contact us!
