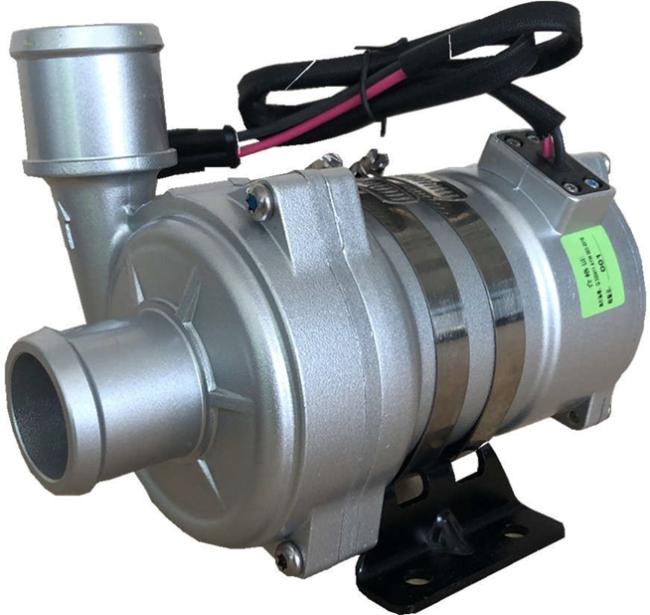

OWP Series Automotive Water Pump High Lift 20m For Truck, Maglev Train Cooling Circulation System.
OWP-BL43-200 Electronic Water Pump Head Lift 20M Nozzle Size 38mm For Truck Engine and PHEV EV Vehicles' Battery Cooling Maglev Train Cooling System.
Product features
- Centrifugal pump
- Magnetic force transmission
- High efficiency brushless DC motor, low power consumption, high efficiency, long service life.
- With wide range operating temperature
- PWM signal speed controlling(optional)
- Diagnostic signal output(optional)
- With constant flow controlling
- Reverse polarity protection
- Dry running protection
- Over Voltage, over current protection
- Overload, over temperature protection

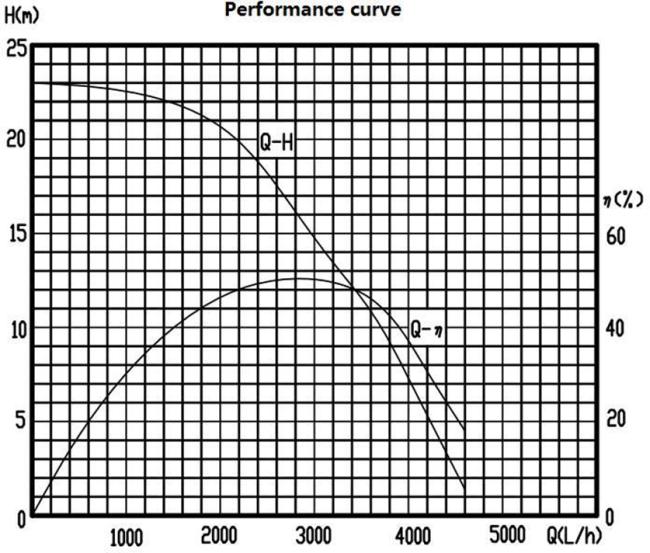

Performance Curve
Medium liquid: liquid mixture (Water with below 60% glycol)
Electrical parameter
|
Working Voltage (VDC) |
Rated power |
Rated flow (L/H) |
Dimensions (mm) |
Weight (g) |
|
18V-32V(24V) |
250W |
2800L/H , H=16M |
185*90*155 |
1950g |
Connector model and the corresponding electrical properties(The right picture)
|
AMP282104-1 (matched Plug AMP282080-1) |
1 | 2 |
| +24V DC | GND |
|
Recommended Wire size is (Based on 3% voltage drop)
* The length of the wire means the distance from pump to the battery
Temperature parameter
Medium liquid temperature: -40℃ to +85℃ (-40°F to + 185°F)
Working ambient temperature: -40℃ to +120℃ (-40°F to +248°F)
Storage temperature: -40℃ to +70℃ (-40°F to +158°F)(up to 100 ℃, but it will shorten the service life)
System pressure
-0.2 to 2.5 bar ( 100℃ (212°F).The service life is more than 20,000 hours based on the rated voltage and 36℃(86°F) ambient temperature.
Voltage range
Rated 24V water pump, workable range 18V - 32VAlthough the motor can be used in a wide range of voltage and temperature, but excessive or too low voltage and temperature will affect the service life of the motor, the pump can not be exposed to thermal radiation ambient.

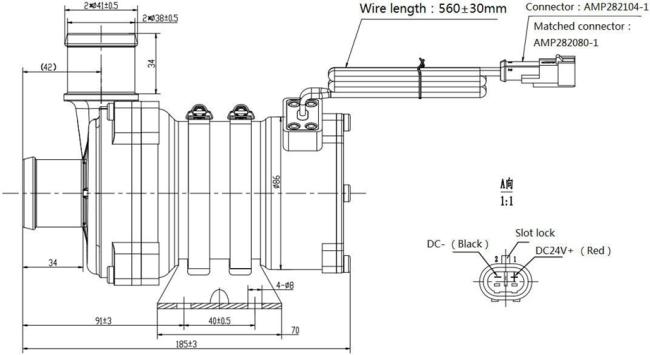

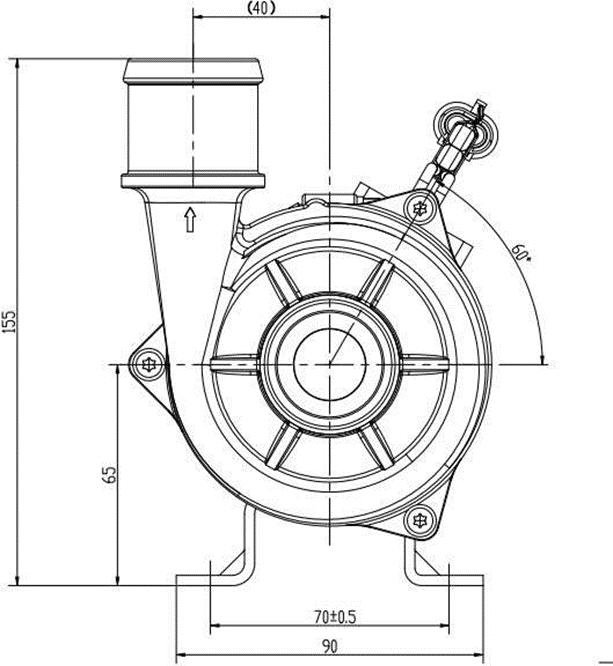

External dimension
Attentions
- Working ambient temperature:-40℃--120℃, should try to avoid close to three-element catalytic, gas discharge pipe system and engine during the installation, ensure the working environment temperature.
- The installation position of the water pump should as much as possible close to the low water level , to extend the service life of the pump.
- Please use the pump far from the dusty environment, the dust is harmful to reduce the service life
- Pay attention to the purity of the water, avoid to jam and impeller-blocked to reduce the service life of pump
Application
Widely used in hybrid bus, hybrid passenger car, electric vehicles, trains, ships and other heating and cooling circulation system.
