24V DC 3 Phase BLDC Motor Driver 100-100000RPM with 5A-100A Current Range for NEMA 09-34 Motors
Price:
Negotiable
MOQ:
1 set
Delivery Time:
5-30days
Brand:
OWO
Product Description
Brushless DC Motor Driver & Speed Controller
High-performance brushless DC motor driver and speed controller compatible with both Hall sensor and sensorless BLDC motors. Supports NEMA frame sizes 09, 11, 13, 17, 23, and 34.
DK Series Brushless DC Motors
Comprehensive range of brushless DC motors with various specifications:
| Model | OD (mm) | Phase Resistance (Ω) | Inductance (mH) | Rated Voltage (V) | Rated Speed (RPM) | Rated Torque (Nm) | Image |
|---|---|---|---|---|---|---|---|
| DK22BL | 22 | 11.8 | 4.2 | 24 | 3500 | 0.022 |  |
| DK28BL | 28 | 4.67 | 2.2 | 24 | 3100 | 0.05 |  |
| DK33BL | 33 | 14.2 | 7 | 24 | 4500 | 0.022 |  |
| DK42BL | 42 | 0.48 | 0.44 | 24 | 3000 | 0.36 |  |
| DK42RBL | 42 | 0.71 | 0.86 | 24 | 4000 | 0.15 |  |
| DK45BL | 45 | 0.61 | 0.47 | 24 | 4800 | 0.13 |  |
| DK57RBL | 57 | 0.35 | 1 | 36 | 4000 | 0.42 |  |
| DK57RHBL | 57 | 0.2 | 0.25 | 36 | 4000 | 0.8 | |
| DK57BL | 57 | 0.5 | 0.6 | 36 | 3000 | 0.6 |  |
| DK86BL | 86 | 0.16 | 0.03 | 48 | 3000 | 2.1 | |
BLSD Series Speed Drivers
Pure hardware brushless DC motor speed drivers supporting multiple voltage inputs:
Model Naming Convention
- BLSD: Brushless DC motor speed driver
- Voltage: Operating voltage (24V, 36V, 48V, etc.)
- Current: Peak current limit (5A, 10A, 15A, etc.)
- Power Input: DC, AC, or wide range input voltage
- Series: S (compact), N (normal), H (high current), HV (high voltage)
| Model | Operatable Voltage (V) | Peak Current Limit (A) | Description | Sensor | Image |
|---|---|---|---|---|---|
| BLSD XXXX DC - 2Q - S | DC: 12V, 24V, 36V, 48V | 5A, 10A, 15A, 20A | Compact size with fixed parameters | Hall |  |
| BLSD XXXX DC - 2Q - N | DC: 12V, 24V, 36V, 48V | 10A, 20A, 30A | Normal size with variable parameters | Hall |  |

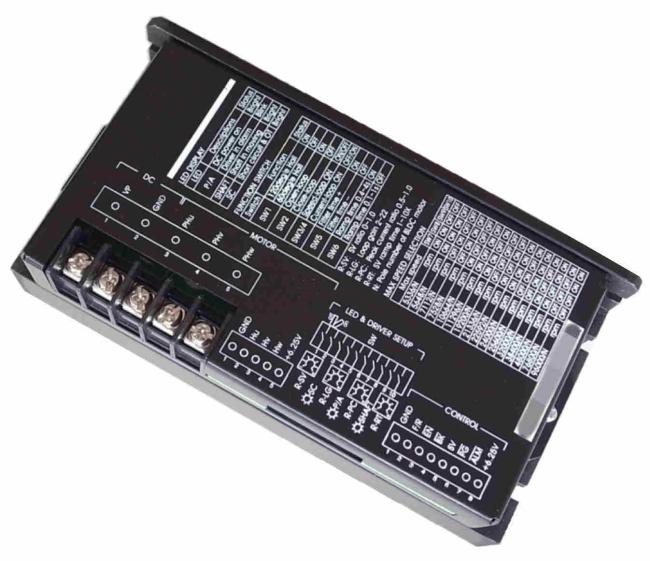

| BLSD XXXX DC/WDC - 2Q - H | DC: 24V, 36V, 48V WDC: 15V-55V |
30A, 50A, 75A, 100A | High current with variable parameters | Hall |  |
| BLSD XXXX DC/AC - 2Q - HV | AC: 110V(45-140V), 220V(45-275V) DC: 155V(60-195V), 310V(60-385V) |
4A, 8A, 16A, 24A | High voltage motor driver | Hall |  |
JYQD Series Driver Boards
Versatile brushless DC motor speed driver boards with power outputs up to 700W:
| Model | Operatable Voltage (V) | Peak Current Limit (A) | Description | Sensor | Image |
|---|---|---|---|---|---|
| JYQD-V7.3E2 | DC 12V-36V | ≤15A | Output power: 500W | Hall |  |
| JYQD-V7.3E1 | DC 12V-36V | ≤15A | Output power: 500W | Hall |  |

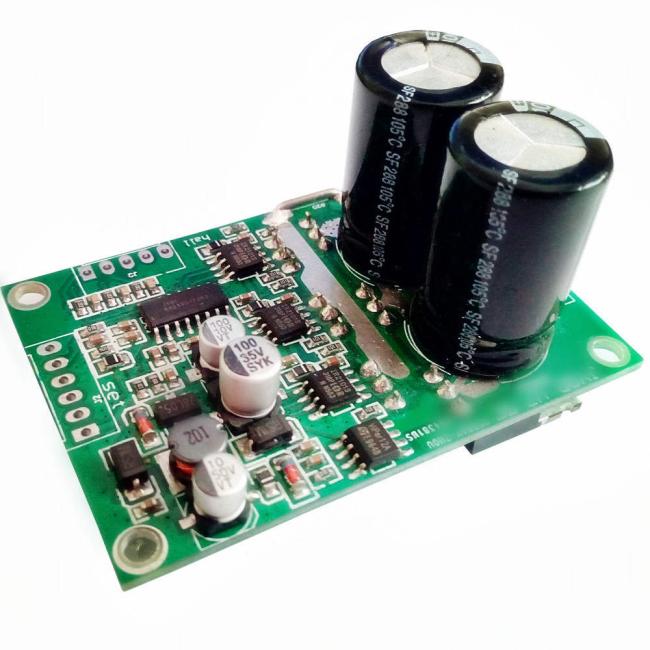

| JYQD-V7.5E | DC 12V-36V | ≤20A | Output power: 700W | Hall |  |
| JYQD-V6.5 | DC 12V-36V | ≤20A | Output power: 700W | Sensorless |  |
| JYQD-V6.3E1 | DC 12V-36V | ≤15A | Output power: 500W | Sensorless |  |
Customization Services
We offer ODM services for customized development to meet specific application requirements.
