Single Mode G652D Aerial Fiber Optic Cable ADSS 100M Span All Dielectric 48 Cores
Aerial Fiber Optic Cable ADSS 100m Span 4-288 Core Outdoor Single Mode All Dielectric 48 Cores
Description :

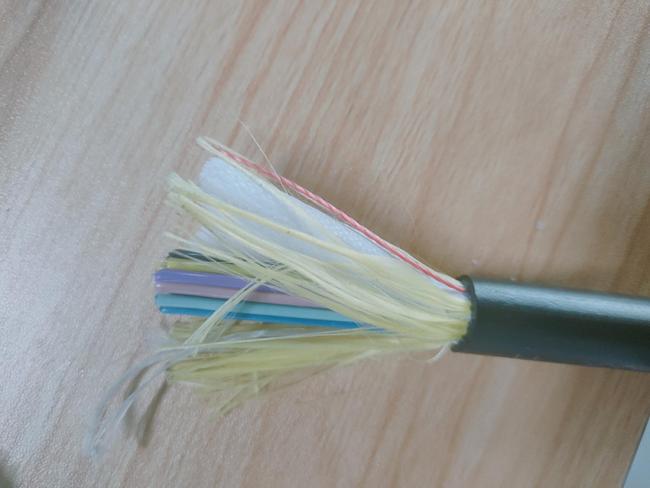

ADSS optical cable generally refers to all dielectric self-supporting optical cable. All dielectric self-supporting optical cable (ADSS) is metal free, tension resistant, self-supporting, highly insulated, non inductive, thin, light, easy to construct and economical. It is a composite optical cable made by winding the optical fiber bundle on the central reinforcement and taking protective measures such as insulation, waterproof, reinforcement and sheath.
Wooden drum:1km 2km 3km 4km 5km for one roll
Shipping: By sea/by air or express delivery,it depends on the order quantity
Specification:
Technical specifications of optical cable:
| Fiber count | 6 | 12 | 24 | 48 | 96 | 144 | ||
| Optical fiber type | G652D | |||||||
| Structure | 1+6 | 1+8 | 1+12 | |||||
|
CSM |
Material | FRP | ||||||
| diamete(±0.05)mm | 2.0 | |||||||
| undercourse | Material | MDPE | ||||||
| Thickness | ------- | 0.65 | 2.15 | |||||
|
Loose tube |
Material | PBT | ||||||
| diamete(±0.06)mm | 1.85 | 2.15 | ||||||
| Thickness(±0.03)mm | 0.3 | |||||||
| Fibers pertube | 6 | 12 | ||||||
| Filler | Material | |||||||
|
water-blocking tape |
Material | water-blocking tape | ||||||
|
reinforcement |
Material | aramid yarn | ||||||
|
Outer jacket
|
Material | MDPE | ||||||
| Thickness(±0.2)mm | 1.8 | 2.0 | ||||||
| Cable size mm | 10.5 | 10.5 | 10.5 | 10.5 | 12.5 | 15.5 | ||
|
Fiber optic cable net weight (±10)kg/km |
105 | 105 | 105 | 105 | 130 | 210 | ||
| (N) Tensile strength | 1600 | 1800 | 2700 | 3900 | ||||
| (N/100mm) Crush Resistanc | 1000 | |||||||
| application | Overhead, electric power | |||||||
| Span | :100M MAX:100M | |||||||
| Attenuation | 1550nm | ≤0.2dB/ km | ||||||
|
bending radius |
Dynamic | 25.0倍缆径 | ||||||
| Static | 15.0倍缆径 | |||||||
|
temperature range (℃) |
Installation Temperature |
-40℃+80℃ | ||||||
|
Transportation & Storage |
-40℃+80℃ | |||||||
|
running temperature |
-40℃+80℃ | |||||||
