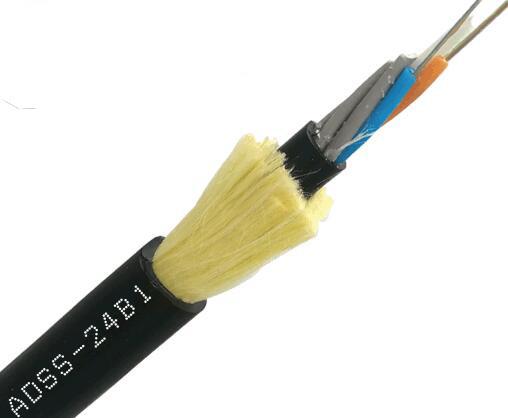

All-dielectric self-supporting optical Aerial 24 core fiber cable ADSS G652D

Description:

All-dielectric self-supporting ADSS (All Dielectric Self Supporting) optical cable, due to its unique structure, good insulation and high temperature resistance, and high tensile strength, provides a fast and economical transmission channel for power communication systems. Generally speaking, ADSS cable is cheaper than OPGW (OPtical fiber composite Ground wh) in many applications, and it is easier to install. It is advisable to use power lines or towers nearby to erect ADSS optical cables, and even the use of ADSS optical cables is necessary in some places.

Specification:

Features: all dielectric, no metal, non-conductive; small cable diameter, large tensile force ratio; low linear expansion coefficient, wide applicable temperature.

ADSS optical cable is also called all-dielectric self-supporting optical cable. All-dielectric means that the optical cable uses all-dielectric material. Self-supporting means that the reinforcing member of the optical cable itself can withstand its own weight and external load. This name points out the use environment and key technology of this optical cable: because it is self-supporting, its mechanical strength is very important; the use of all-dielectric materials is because the optical cable is in a high-voltage and strong electric environment, and must be able to withstand strong electricity. Influence; since it is used overhead on the power tower, there must be a matching pendant to fix the optical cable on the tower. That is, ADSS optical cable has three key technologies: optical cable mechanical design, determination of suspension points and selection and installation of supporting tools.
