Pre-scored PCB Separator V-cut Pcb Depaneling For LED Strip Cutting

Price Negotiable

Price: Negotiable

MOQ: 1Set

Delivery Time: within three days after receive the payment

Brand: chuangwei v-cut pcb depaneling

Product Description

Pre-scored PCB Separator V-cut Pcb Depaneling For Led Strip CuttingSpecification:

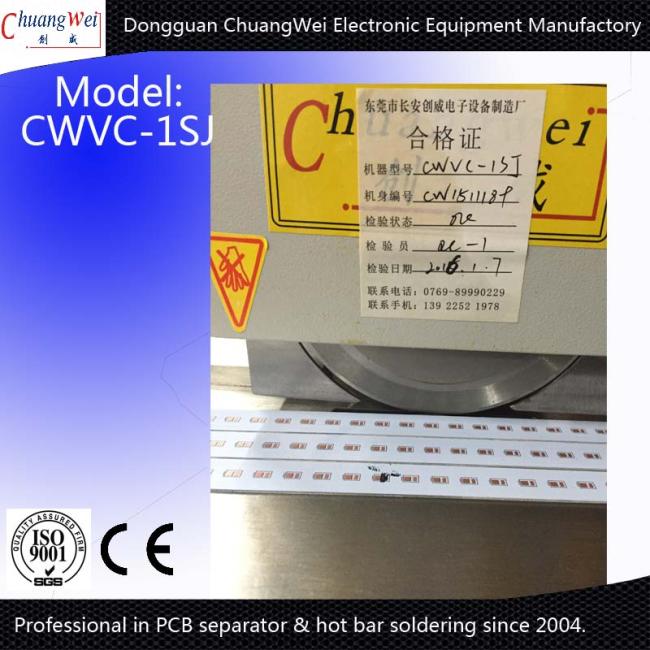

Model	CWVC-1SJ
separation Length (mm)	330
separation Speed (mm/s)	0~400
Cutting Thickness (mm)	1.0~3.5
Power Supply (V)	110/220
PCB separator machine Size (mm)	420280400
PCB separator machine Weight (Kg)	25
Blade Hardness (HB)	540~567
Blade Hardness (HRC)	60~63
Blade working life for metal (Year)	0.5
Blade working life for PCB (Year)	1
Guarantee (Year)	free for one year
Delivery (Day)	within three days after receive the payment
Min. Order (Set)	1
Ability (Set)	1000 sets/ year

Detailed Product Description:

1 . For electronics, cell phones , computers , PCB , FPC ( flexible printed circuit board )

2 . Mold make of SKH-11 Steel , Blade is SKH-9 ( From Japan ) , Rigorous Job !

pcb depaneling pcb depaneling pcb depaneling pcb depaneling pcb depaneling pcb depaneling pcb depaneling

Technical characteristics:

1 . Structural precision, the load evenly , to eliminate internal stress

2 . Safe , easy to operateyyy

3 . For electronics , cell phones , computers , PCB , FPC ( flexible printed circuit board )

Feature:

All PC boards with a V-cut are suitable for this machine.
The machine is light and occupies little space. It is very easy to operate and maintain.
Cutting by machine can reduce stress and prevent the welding point from cracking.
The distance between the upper and lower cutters can be adjusted with a minimum of 0.03mm, which can solve the problem of the depth of the V-cut.
We can produce special machines for PC boards of special specs.
Thicknesses to be cut: 0.6-2.6MM
Height limit for components above the base plate: 30MM
Height limit for components under the base plate: 20MM
Max width to be folded: 290MM; unlimited length to be folded.
