VB63.XXAGDRKMX L=700mm VEGAVIB 63 Vibrating level switch with extension tube for granular solids
Price:
Negotiable
MOQ:
1pcs
Delivery Time:
On request
Brand:
VEGA
Product Description

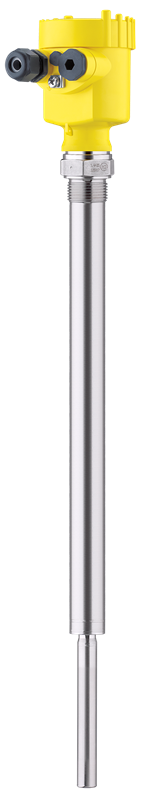

VB63.XXAGDRKMX L=700mm VEGAVIB 63 Vibrating level switch with extension tube for granular solids
pplication area
The position of the switching point can be up to 6 m away from the installation site. The smooth surface of the vibrating rod, without sharp corners or edges, prevents bulk material from getting stuck or jammed and is easy to clean.
The VEGAVIB 63 is a level switch for granular and coarse-grained bulk solids. The VEGAVIB 63 detects reliably and accurately the min. or max. limit level. The smooth surface of the vibrating rod, without corners and edges, avoids jamming of the bulk solid and is easy to clean. The position of the switching point is specified through the tube extension.
Your benefit
Technical specifications
Process temperature
- -50 ... 250 °C [°C - °F]
Process pressure
- -1 ... 16 bar [Bar - kPa - psi]
Version
- Detection of solids in water
- with tube extension
Materials, wetted parts
- 316L
Threaded connection
- ≥ G1, ≥ 1 NPT
Flange connection
- ≥ DN 32, ≥ 1½"
Hygenic fittings
- Slotted nut ≥ 1½", ≥ DN40 - DIN 11851
- Slotted nut ≥ 2", DN50 - DIN 11851
- Varivent ≥ DN32
- hygienic fitting with tension flange DN32
- hygienic fitting F40 with compression nut
- Hygienic screw connections ≥ DN50 tube ø53 - DIN11864-1-A
- Clamp ≥ 3½" , DN80 - DIN32676, ISO2852
- Slotted nut ≥ 3", DN65 - DIN 11851
- Hyg. collar clamp adapter DN40PN40 DIN11864-3-A
Seal material
- no media contact
Housing material
- Plastic
- Aluminium
- Stainless steel (precision casting)
- Stainless steel (electropolished)
Protection rating
- IP66/IP68 (0,2 bar)
- IP66/IP67
- IP66/IP68 (1 bar)
Output
- Relay (DPDT)
- Contactless electronic switch
- Transistor (NPN/PNP)
- Two-wire
- NAMUR
Ambient temperature
- -40 ... 80 °C
