AI-Tek Speed Sensor Cable CN79860-3800 with Pt100 Temperature Sensor and 12 to 42 VDC Power Supply for Corrosion Resistant Applications
Price:
inquiry
MOQ:
1PC
Delivery Time:
Negotiable
Brand:
AI-Tek
Product Description

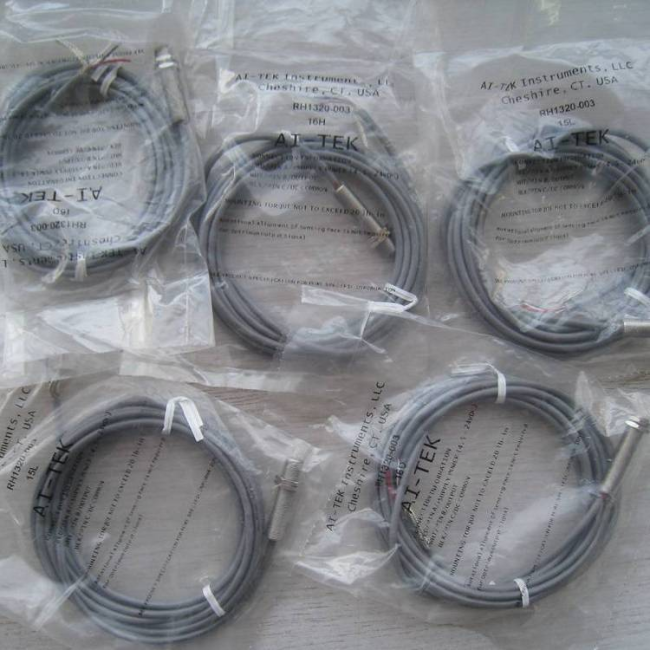

AI-Tek Speed Connection Cable CN79860-3800
The AI-Tek speed connection cable CN79860-3800 is designed for use with AI-TEK (formerly AIRPAX) speed sensors, which are available in both active and passive configurations including Hall effect sensors.
Sensor Technology Overview
AI-TEK Instruments produces variable reluctance sensors that utilize advanced magnetic technology. The internal sensor structure consists of a magnet, magnetic sheet, and coil. Rapid magnetic field changes induce AC voltage signals in the coil, producing sine wave outputs. AI-TEK employs three primary technologies: variable magnetic resistance, magnetoresistance, and Hall effect to convert motion into electrical signals.
Environmental Durability
AI-TEK speed sensors from Artek are engineered to withstand harsh industrial, automotive, and aviation environments. These sensors provide reliable continuous operation for many years under challenging conditions including vibration, impact, high temperature, humidity, oil contamination, and corrosive environments. Most sensors are specifically designed for high-temperature applications, varying speeds, different measurement objects, or timing purposes.
Passive Magnetic Speed Sensors
AI-TEK passive magnetic speed sensors can provide signals in extreme conditions such as aircraft engines with temperatures approaching 425℃ or automotive wheels with high impact and vibration. Key advantages include no moving parts, non-contact operation, long service life, independent operation, and compatibility with virtually any environment.
Universal Passive Sensor Models
| Order Number | Thread Length (A) |
|---|---|
| 70085-1010-001 | 1.125(28.57) |
| 70085-1010-003 | 2.625(66.67) |
| 70085-1010-018 | 3.625(92.07) |
| 70085-1010-118 | 5.000(127.00) |
Full Thread Power Output Models
| Order Number | Thread Length (A) |
|---|---|
| 70085-1010-131 | 1.687(42.85) |
| 70085-1010-214 | 2.937(74.60) |
UL/CSA Explosion-Proof Passive Magnetic Sensors
| Order Number | Thread Length (A) |
|---|---|
| 70085-1010-081 | 1.500(38.10) |
| 70085-1010-411 | 1.875(47.63) |
| 70085-1010-329 | 2.750(69.85) |
| 70085-1010-330 | 4.000(101.60) |
| 70085-1010-412 | 6.000(152.40) |
These UL and CSA certified sensors are designed for harsh environments with classifications for Grade I, A, B, C, and D groups; Grade II with lead length of 3.05m.
Additional UL/CSA Explosion-Proof Models
| Order Number | Thread Length (A) |
|---|---|
| 70085-1010-413 | 1.500(38.10) |
| 70085-1010-005 | 1.875(47.63) |
| 70085-1010-327 | 2.750(69.85) |
| 70085-1010-328 | 4.000(101.60) |
| 70085-1010-414 | 6.000(152.40) |
Active Zero Speed Magnetic Hall Effect Sensors
The Artek AI-TEK active sensor zero speed magnetic Hall effect sensor, designated as "P" type due to its N-P-N crystal logic, can detect every change in moving targets regardless of speed. These sensors generate stable pulse sequences proportional to target body speed across a frequency range from near zero to 15KHZ.
Active Sensor Models
- RH1512-005
- RH1512-006
- RH1512-007
- RH1512-009
- RH1512-010
- RH1512-013
Bidirectional Dual Channel Speed Sensors
- BH1512-002
- BH1512-005
- BH1512-006
- BH1512-009
