4000 BPH Apple Fruit Juice Filling Machine With Plastic Screw Cap
Apple Juice Filling Machine
KQSHF Apple juice filling machine series juice filling line is used to produce PET bottled juice within the volume from 250ml-1500ml.ifferent models can satisfy various requirement of output from 1500B/H to 25000B/H. This machine incorporates washing, filling and capping into one kind of full-automatic equipment. It is suitable for producing PET and Plastic bottled juice and tea. The method of filling adopts hot filling. The equipment is fitted with advanced Siemens PLC to control the operation and cooperated by frequency converter of the main motor. It makes the operation more stable and reliable. the photoelectric sensor is used to detect operating conditions of each section, which makes the operation of this equipment highly automatic and convenient.
Apple juice filling machine Technical Parameter
| model | KQSHF-06 | KQSHF-06A | KQSHF-08 | KQSHF-10 |
| capacity(BPH) | 3000-4000 | 5000-6000 | 10000 | 14000 |
| washing heads | 16 | 18 | 24 | 32 |
| filling heads | 12 | 18 | 24 | 32 |
| capping heads | 6 | 6 | 8 | 10 |
| suitable bottle | PET bottle plastic bottle | |||
| diameter of bottle | 60-97mm | |||
| height of bottle | 150-320mm | |||
| suitable cap | plastic screw cap | |||
| weight(kg) | 2800 | 4000 | 6000 | 8000 |
| Power(kw)3.5 | 3.5 | 4.62 | 5.5 | 6.62 |
Apple juice filling machine Main details
Washing heads
1). The rotary disk is fully made of SUS304 stainless steel.
2). Using company original tilting bottle clip, bottle clamp stuck bottleneck.
3). Using imported special efficient spray nozzle.

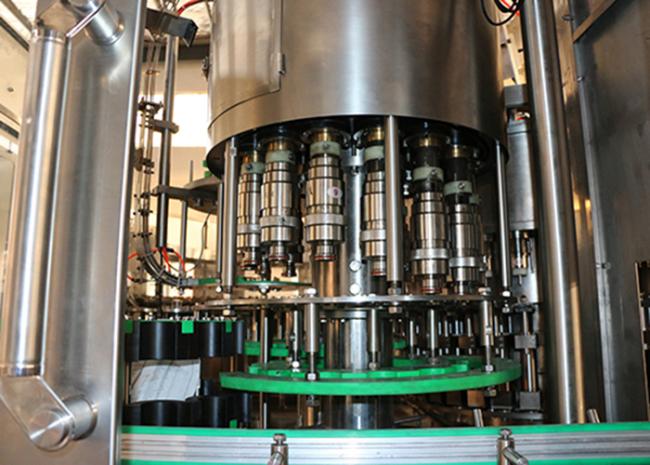

Filling heads
1). The washing bottle, filling, sealing are connecting with bottleneck transportation methods.
2). The rotating disk is all made of SUS304 stainless.
3). Filling method is gravity filling.
Capping heads
1). The capping machine is the highest precision in 3-in-1 unit machine
2). Full made of stainless steel SUS304
Apple Juice Filling Machine Features
1. The main frame machine of apple juice making machine adopts the automatic control technology of PLC and transducer with high degree of automatization.
2. The dynamical system of apple juice making machine is connected by transmission shaft with stable performance.
3. The filling principle of micro negative gravity increases the precision.
4. The advanced automatic lubricating system which equipped on juice making machine requires no manual effort and increases the life span of the machines.
5. The noise of juice making machine is low and the overall machine is easy to maintain.
