H Beam Steel Plate Cleaning Shot Blasting Machine description

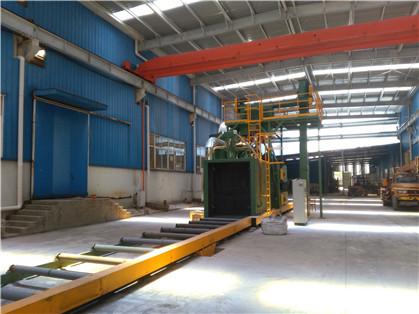

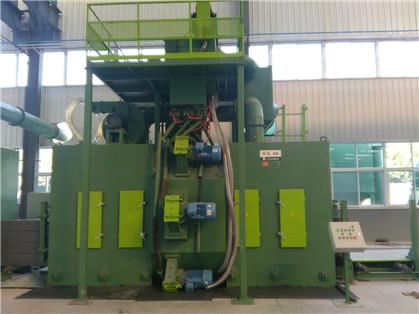

It is a kind of roller conveyor passing type automatic shot blasting cleaning equipment, which makes the cleaned workpiece get a certain roughness of the clean surface, increase the adhesion of the paint film, improve the surface quality and anticorrosion effect. The main functional components of this machine are cleaning room, conveying roller table, shot blasting device, shot circulation system (including hoist, separator, screw conveyor and blasting pipeline), dust removal, electrical control and other components.

1. Shot blasting is mainly used to cleaning H beam,profile, structural steel and cleaning the oxide scale. In addition, shot
blasting is also used to descaling and cleaning the oxide scale and residual coating of other metal parts.2. This equipment is a
new and complete equipment from our factory, complete set equipment is including shot blasting chamber, the abrasive control unit,
the shot blasting system, abrasive recovery sorting storage system, ventilation and dust removal system, roller conveyer,
electrical control system, maintenance platform, system security. Mechanical and electrical systems should be equipped with
reliable safety protection device. Shot blasting equipment meet the CE, TUV, and BV related standards, certification and
requirements.

Technical Data

Features

High-performance targeted surface treatment equipment for metal plates and profiles
High-speed feeding, long maintenance intervals
Special shot blasting device configuration angle, shot blasting time shortened by 5%-20%
Designed to cooperate with fully automatic production lines

Application

Clean up
De-corrosion
Paint stripping
Rust and descaling
