Steel Wire Coils Shot Blasting Machine with CE ISO9001 Certificate


Steel Wire Rod Shot Blasting Machine Application

The surface descaling grade of the wire rod reach Sa2.5 level after cleaning, and the surface roughness level reach Ra6.3μm ~ 12.5μm.

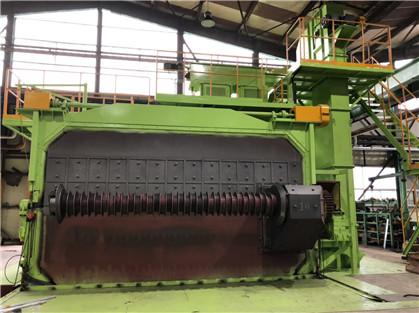

This machine use unique "revolving door + 4 meters double cantilever shaft" to load the wire rod in coils, it achieve duplex mode of operation, Cantilever shaft is made by special alloy steel, the wire cleaning action of "up and down + swing around + forward and reverse rotation" in the shot blasting process.The machine is controlled by PLC, with easy and reliable operation.

Technical Parameter
Specification of wire rod:

Load mode and productivity:
A. Delivery method: cantilever shaft loading ( When shot blasting, indoor cantilever shaft can works according to the PLC program: clockwise rotation, then counterclockwise; the rotation time is adjustable. Outdoor cantilever shaft is controlled by manual push-button, it is adjusted by staff through the electrical work station )
B. Productivity: 7-15min/cycle
C. Effective length: 4000mm-5500 mm (This machine is 4000mm, can be customized)
D. Rotation speed: 10-20 r/min (Frequency control )

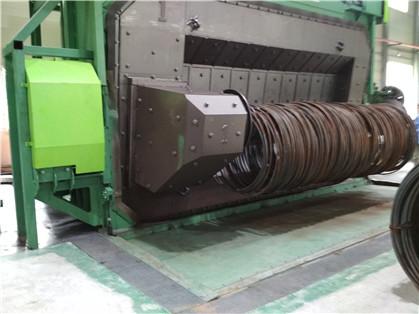

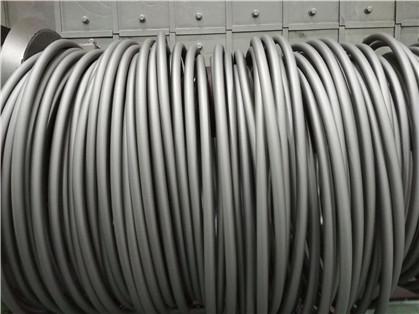

                        Before Shot Blasting!                                        After Shot Blasting! Clean up effect is good!

Details Images

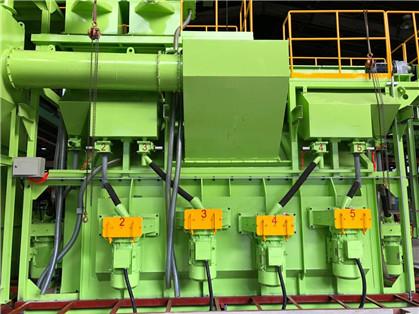

High power direct-coupled                                                         Automatic abrasive control valve manufacturing workshop
Blast wheel Motor: SIEMENS


Touch Screen & PLC: SIEMENS                                                 Welding seams and related surfaces are smooth and regular!
Automated by PLC controlled.

Our Advantage

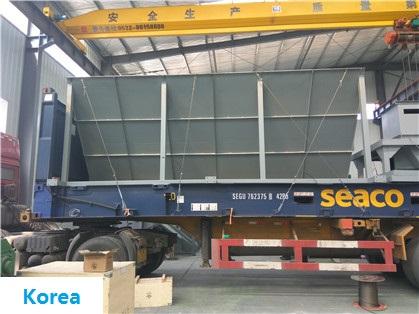

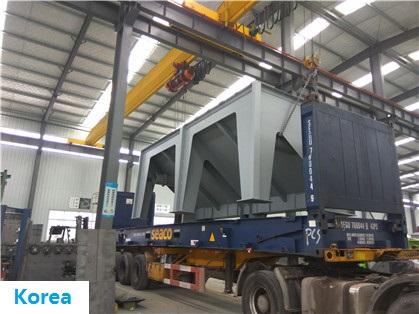

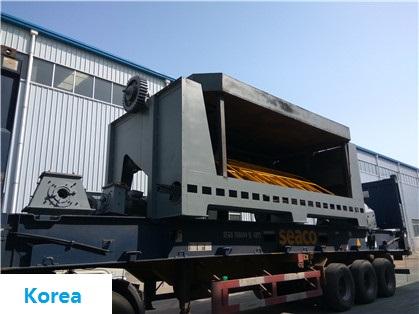

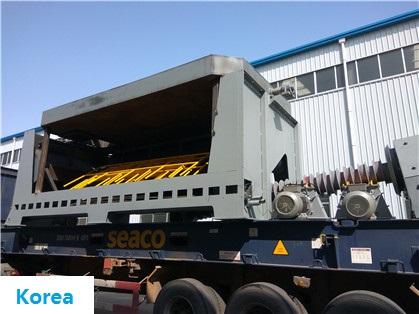

Loading Site




FAQ

Q1: Are you a trading company or a factory?
A: We are a manufacturer of shot blasting machines integrating industry and trade.
Q2: Does your product have CE certification?
A: Yes. We have CE certification.
Q3:Can I have your quotation?
A: Please provide us with your workpiece size information and production capacity requirements as much as possible, and then we will recommend a suitable machine for you.
Q4:How to operate and maintain the machine?
A: We will provide you with professional and detailed USERGUIDE of the machine and we also provide foreign technical training services.
Q5:Where is your factory located? How can I visit it?
A: Our factory is located in Qingdao city, Shandong province, China.
You can fly to Qingdao liuting Airport, we will pick you up.
