600*250*250mm Turntable Shot Blasting Machine Dust Removing Machine
Dust Removing Machine Turntable Shot Blast Machine On Hot Sale

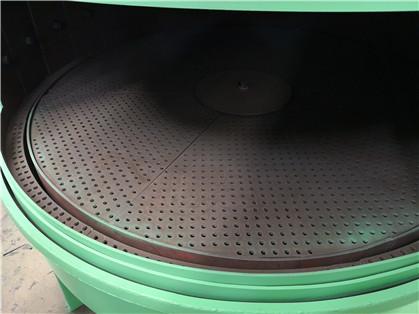

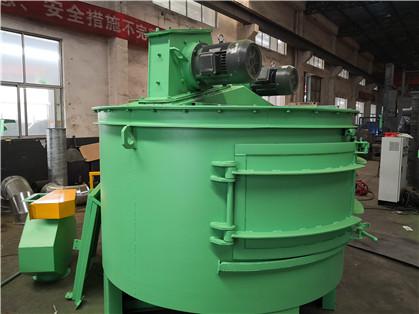

Turntable Shot Blasting Machine Overview
Provide professional high-precision planetary rotary shot blasting machines for automobiles and aerospace. This type of equipment is usually used for strengthening and cleaning, and can achieve precise and uniform results. This type of equipment can be used in conjunction with robots to complete automatic loading and unloading, forming a complete manufacturing unit during continuous processing.
Technical datas
|
type item |
ZJ012 | ZJ012F | ZJ012F | ||
| Size of cleaning chamber | mm | Ø1350*560 | Ø1350*860 | Ø2654*560 | |
| size of cleaning piece | mm | 600*250*250 | 600*250*250 | 1000*500*250 | |
| Turn table | loading capacity | kg | 400 | 400 | 1000 |
| diameter | mm | Ø1200 | Ø1200 | Ø2500 | |
|
Blasting apparatus |
abrasive flow rate | kg/min | 200 | 2*150 | 2*250 |
| power | kw | 11 | 7.5*2 | 15*2 | |
| Lifiting amount of elevating conveyor | t/h | 15 | 15 | 30 | |
| Separating amount of separator | t/h | 15 | 15 | 30 | |
| Abrasive initial filling | kg | 400 | 350 | 1500 | |
| Ventilation capacity | m3/h | 2800 | 2800 | 5200 | |
| Outline dimensions | mm | 1500*3450*3780 | 1900*1900*4165 | 4260*3647*5366 | |
| Powe(excluding dedusting) | kw | 17.3 | 18.7 | 35.2 |
|
Features
Short downtime
High shot blasting performance
Reduce operating costs
Improve workpiece precision
General transportation technology
Efficient shot blasting device configuration
Various equipment sizes and selections
These machines can be arranged vertically or horizontally with shot blasters and manual or automatic loading/unloading devices. Workpiece processing/masking can be performed by robots or other processing systems to make the shot blasting machine a fully automated production unit
Advantage
Adopt full manganese steel body + full manganese steel guard plate, service life 20 years;
Adopt advanced Venturi dust removal system;
Adopting a secondary separation system for pellets;
Using high-performance Siemens motor + German-style direct-coupling shot blasting device;
Use steel shot flow automatic control system;
Use automatic turntable system;
Adopt magnetic sorting system + horizontal spiral sorting + winnowing sorting system;
