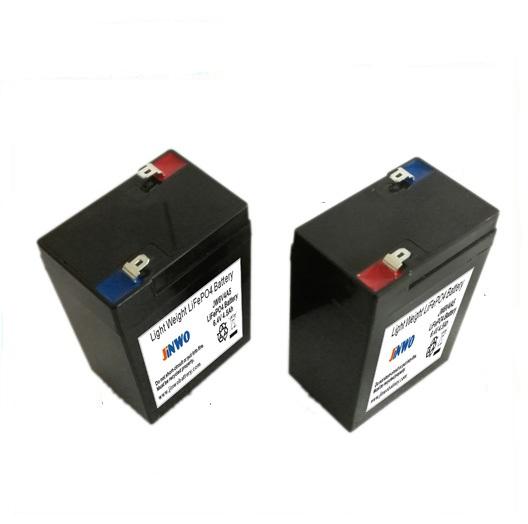

• 12V 5Ah Lithium-ion Battery for Solar Street Lighting System


  We could design all of the battery packs according to your requirements and provide OEM service. We sincerely welcome you to visit and cooperate with us for a prosperous business future.


  This form can't include all we are producing.

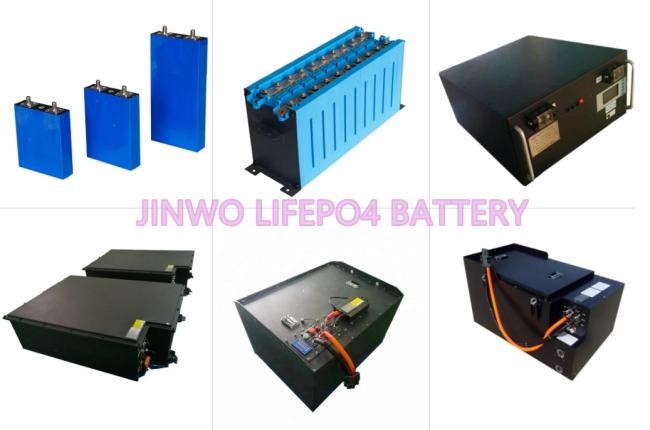

  Jinwo LiFePO4 Battery/Lithium Battery Pack (12V 5Ah---400Ah)
  5/10/20/25/30/40/50/60/80/100/120/150/200/300/400Ah
  Item No.			T12005	T12010	T12020	T12025	T12030	T12040	T12050	T12060
  Standard Capacity			5Ah	10Ah	20Ah	25Ah	30Ah	40Ah	50Ah	60Ah
  Rated Voltage			12.8V
  Discharge Cut-off Voltage			10.0V
  Cell Model			IFR32650/32750
  Casing Material			Steel Case for Single Cells
  Self Discharge Rate			≤3% after one month
  Life Cycles			80% left after 2000 times (with 1C constant charge and discharge deep cycle)
  Max Charger Voltage			DC14.6V
  Standard Charge Current			0.2C
  Protection Function			Short-circuit &Over-current &Overcharge &Over-discharge &Undervoltage Protection
  Product Size(mm)			151*51*93	135*85*85	182*76*167	184*75*135	118*175*175	190*165*175	190*165*175	350*168*179
  Approx N.W			0.9Kg	1.3Kg	2.8Kg	3.5Kg	4.0Kg	5.5Kg	7.0Kg	8.0Kg
  Item No.			OPT12080	OPT12100	OPT12120	OPT12150	OPT12200	OPT12200	OPT12300	OPT12400
  Standard Capacity			80Ah	100Ah	120Ah	150Ah	200Ah	200Ah	300Ah	400Ah
  Product Size(mm) (changeable)			330*170*220	330*170*220	339*173*212	502*262*242	502*262*242	360*220*262	502*262*242	560*360*200
  Approx N.W			11Kg	16Kg	19Kg	24Kg	35Kg	38Kg	45Kg	65Kg

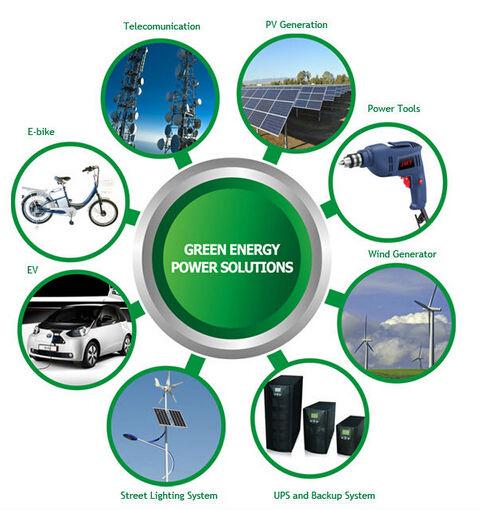

  Application :

•

• 1. Electric vehicles:EV/HEV/PHEV, Electric bus, Electric bike, Electric boat, Electric tricycle, Electric quadricycle, Electric scooter, Electric wheelchairs, Golf cart, Marine, Station/SUV /wagon/Caravan, E-tour car, Forklift, etc.

  2. Solar and wind energy system:Solar energy storage, PV system, Solar street light, Wind power generation energy storage, etc.

  3. Medical devices:Energy power for various kinds of medical devices, etc.

  4. Other electric tools and equipments: Lawn mower, Electric saw, UPS, backup storage system, Military equipments, etc.




  1. Safe:Rigid aluminum alloy housing protection, BMS or PCB built inside to protect the battery over charge or discharge.

  2. Environmental-friendly: Accredited with RoHS, without any hazardous and noxious substances.

  3. Lighter and smaller: 1/3 weight of lead acid battery, 70% size/weight of Ni-MH/Ni-Cd battery.

  4. Powerful: Able to discharge at 20Cat 65°C max.

  5. Long cycle life: Over 2000 cycles with capacity staying at minium 80%. Lead battery and other Li-ion batteries only have 300-500 cylces, such as Ni-Cd battery, Ni-MH battery.

  6. Wide temperature range: Available for use when the temperature ranges from -20°C to 70°C.

  7. Quality assurance: BV and SGS approved supplier, with TS16949 and ISO9001 quality management certificates and UL, CE,IEC62133, RoHS certificates.

12V 5Ah Lithium-ion Battery for Solar Street Lighting System



Our batteries have got the certificates of CE, UL, TUV, SGS, ROHS, NQA.
