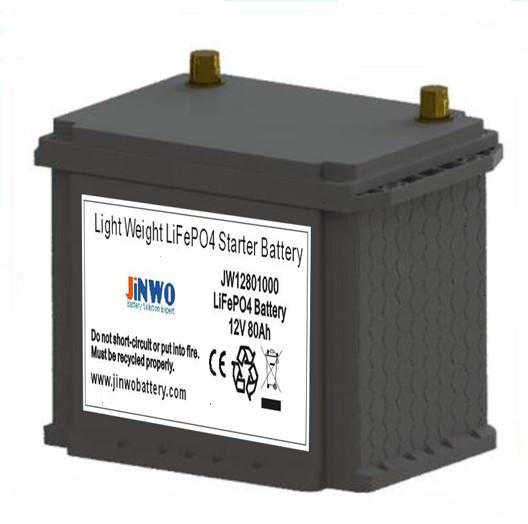

Jump Starting 24 Volt 80Ah 1000 CCA LiFePO4 Start Battery
Junp Starting 24V 12V 80Ah 1000A CCA Lifepo4 Start Battery For Car / Bus / Truck
long life cycle:more than 2000times
high energy density
low self-discharge rate
wide range temperature adaptability
high power output
environment friendly
cost performance
This lithium ion car starting battery series are based on Jinwo lifepo4 technology. Compared with lead acid starter batteries, they have very high discharge rate with a smaller capacity and lighter weight.They also feature BMS inside for the safest and long-life performance. They have lower self-discharge rate so they can still provide enough cranking power when sitting for months.
|
Item
|
General Parameter
|
Remark
|
|
Model
|
IFR 3.2V 20AH
|
Single
|
|
Casing material for single cell
|
Polymer aluminum foil
|
1S4P
|
|
Standard capacity(0.2C 5 A)
|
80Ah
|
|
|
Rated voltage
|
12.8V
|
Work voltage:3.20V
|
|
Max.Charge voltage
|
14.4V
|
Single Ave. charge Voltage 3.6V
|
|
Cut-off voltage
|
10.5V
|
Single Ave. Discharge Voltage 2.63V
|
|
Standard charge current
|
40A
|
0.5C (can be adjusted )
|
|
charging Time
|
About 3.0h
|
|
|
Max Continuous discharge current
|
100A
|
1.25C
|
|
Maximum Cranking Amps
|
900A
|
11.25C 1s
|
|
Battery dimension
|
260±1*175±1*200±1mm
|
Single case size
|
|
Total weight(Approx.)
|
About 9kg
|
Each box weight, 1pcs / box
|
|
Impedance(Max, at 1000Hz.)
|
≤ 6mΩ
|
Between the positive and negative
|
|
High cold cranking Amps
|
600 CCA
|
-20℃
|
|
Battery case material
|
ABS
|
|
|
Charge method (CC/CV) |
Standard
|
-20℃～55℃
|
|
discharge
|
-20℃～65℃
|
|
|
storage
|
-40℃～55℃
|
OEM ODM service is available !
Why LiFePO4 (Lithium Iron Phosphate)?
|
Items |
Lead Acid |
LiFePO4 |
Other Lithium battery |
|
DOD |
<80% (usually at 50% for longevity) |
100% (usually at 80% for longevity) |
100% (usually at 80% for longevity) |
|
Cycle times (1C) |
<500, DOD50% |
>3000,DOD80% (remain capacity>80%) |
>800, DOD80% |
|
Working years in |
1.5years (Maximum) |
8years(Minimum) |
Around 2years |
|
Weight (per unit energy) |
3 |
1.2 |
1 |
|
Initial first Cost |
1 |
4 to 5times |
Around 3times |
|
Total Cost in 10 years (includingdelivery,replacement ,repair and workforce expense) |
4 times |
1 |
2.5times |
Small Battery and 12V Battery Modules
|
Voltage |
Capacity |
Cycle Times(1C,100%DOD with remain capacity> 80%rated capacity) |
|
|
3.2 V |
0.5Ah-200Ah |
＞2000 |
PCM/BMS |
|
6.4V |
0.5Ah-200 Ah |
＞2000 |
|
|
12V |
0.5 Ah-800Ah |
＞2000 |
|
|
24V |
2 Ah-1000Ah |
＞2000 |
|
|
36V |
2Ah-1000Ah |
＞2000 |
|
|
48V |
2Ah-1000Ah |
＞2000 |
|
|
51.2V |
2Ah-1000Ah |
＞2000 |
|
|
72V |
10Ah-100Ah |
＞2000 |
|
|
76.8 V |
10Ah-300 Ah |
＞2000 |
|
|
96V V |
30Ah-100Ah |
＞2000 |
|
|
… |
… |
… |
|
Company Information
| Facotry Scale | ||
| Item | Quantity | Unit |
| Factory Size | 80,000 | S.Q. |
| Total Employee | 2,000 | Person |
| R&D Staff | 300 | Person |
| Sales | 100 | Person |
| QC Staff | 100 | Person |
| Daily Production | 300,000(32650-3.2V 5-6Ah) | PCS |
| Equipments | 1,000 | Sets |
RFQ:
1. Battery size can design according to your needs.
2. Battery case: plastic case, metal case, pvc film, epoxy board
3. Shipment: by express, by air, by sea
