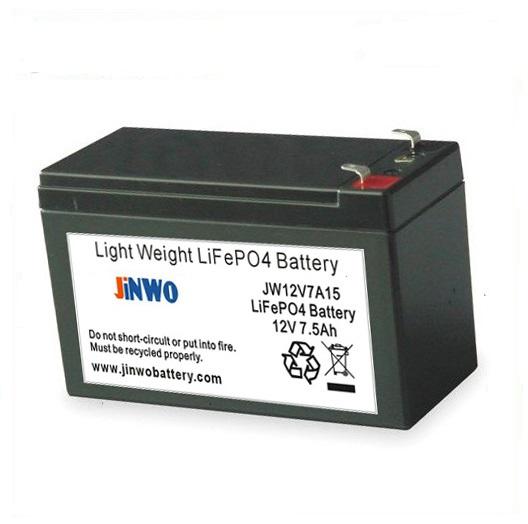

LiFePO4 lithium battery 12V 7.5ah for Star -up enegery , Solar light , Medical Equipment
LiFePO4 lithium battery 12V 7.5ah for Star -up enegery , Solar light , Medical Equipment
Advantages:
1. Green product
LiFePO4 material is no harm to enviroment and human being .
2. Cycle life
over 2000 cycle times, 5-7 years life
.
3. Very safe
It have the best safety and steady performance,no fire ,no exploding under the condition of over-charge.
4. Light weight and smaller dimension
The dimension compares with other battery.about 1/2-2/3 weight of lead acid
5.Great capacity and more powerful,rechargeable battery
We can install many single cells in series and in parallet and it can fully discharge
6.no memory effect
It can be recharged anytime,no reduction of the capacity.
Normal performance
|
NO. |
Item |
General Parameter |
||||
|
1 |
Model |
JW127F |
||||
|
2 |
Case material |
steel case for single cells |
||||
|
3 |
Standard capacity(0.2C5A) |
5Ah |
||||
|
4 |
Rated voltage |
12.8V |
||||
|
5 |
Max.Charge voltage |
15.2V |
||||
|
6 |
Cut-off voltage |
10.0V |
||||
|
7 |
Standard charge current |
0.2C5A |
||||
|
8 |
Max discharge current |
2.5C5A |
||||
|
9 |
the length of the crust |
153±1.0mm |
||||
|
10 |
the width of the crust |
38±1.0mm |
||||
|
11 |
the height of the crust |
73±1.0mm |
||||
|
12 |
Weight(Approx,including case) |
About 0.85kg |
||||
|
13 |
Impedance(Max, at 1000Hz.) |
≤ 180mΩ |
||||
|
14 |
Charge method |
Standard |
CC |
0.2C |
15.2V cut off |
|
|
CV |
15.2V |
0.05C cut off |
||||
|
Rapid |
CC |
1C |
15.2V cut off |
|||
|
CV |
15.2V |
0.05C cut off |
||||
|
15 |
Operate temperature |
Charge |
0°C~45°C |
|||
|
discharge |
-20°C~60°C |
|||||
|
storage |
-20°C~45°C |
|||||
OEM /ODM
Custom-made special dimension,even provide Brand packing design.
Quality warranty
The quality guarantee is 24 months from our B/L date
Payment
100%T/T for sample order ,30% T/T for bulk order in advance,70%T/T before delivery.
Photos:
Shipping
1. We will ship the products within 15 working days after receipt of payment.
2. We can ship to you by UPS/FEDEX/DHL/TNT/EMS and so on. Other shipping terms can also be arranged according to specific requirements.
3. We are not responsible for any accidents, delays or other issues that are the responsiblility of the shipping service
