Lead Acid 200A 43.2V 36v 100ah Lithium Ion Battery
High Quality LiFePO4 36V 100Ah Lithium Battery For Boat Marine Yacht

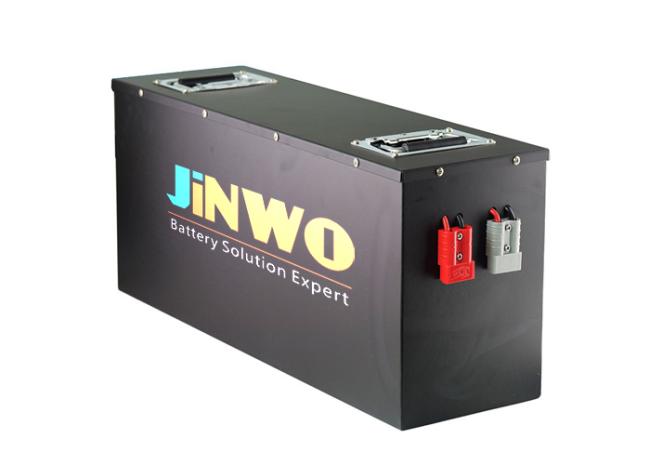

LiFePO4 36V 100Ah Lithium Battery For Boat Marine Yacht
|
NO
|
Item
|
General Parameter
|
Remark
|
|
1
|
Model
|
IFR 3.2V 100Ah
|
Single
|
|
2
|
Casing material for single cell
|
Nickel plated steel
|
|
|
3
|
Standard capacity(0.2C5A)
|
100Ah or customized
|
|
|
4
|
Rated voltage
|
38.4V
|
(Work voltage:38.4V)
|
|
5
|
Max.Charge voltage
|
43.2V
|
(Single Ave. charge Voltage 3.6V)
|
|
6
|
Cut-off voltage
|
30V
|
(Single Ave. Discharge Voltage 2.5V)
|
|
8
|
Standard charge current
|
30A
|
0.3C
|
|
9
|
charging Time
|
About 3.5h
|
|
|
10
|
Max Continuous discharge current
|
100A
|
1.0C
|
|
11
|
Peak discharge current
|
200A
|
2.1C 10seconds
|
|
12
|
Battery dimension
|
420±1*320±1*210±1mm
|
|
|
13
|
(Approx.)Total weight(Approx.)
|
About 35.36kg
|
|
|
14
|
(Max, at 1000Hz.)Impedance(Max, at 1000Hz.)
|
≤ 20mΩ
|
|
|
15
|
(CC/CV) Charge method (CC/CV) |
Standard
|
0℃~45℃
|
|
discharge
|
-20℃~45℃
|
||
|
storage
|
-20℃~45℃
|
*Battery specifications can be customized as you require
Key Features
1. Ideal drop-in replacement for lead-acid batteries
2. Longer cycle life than other lithium-ion batteries
3. Good high-temperature resistance.
4. No memory effect
5. Lighter weight compared with same size lead acid battery
6. IP65 waterproof ratings. Suitable for marine use.
Built in BMS overall protection
1. Over charged protection
2. Over discharged protection
3. Thermal protection
4. Over load protection
5. Over current protection
LiFePO4 Battery Modules Jinwo Supply
| Model | Rated Voltage | Nominal Capacity | Dimension | Weight |
| JW-LFP-1250 |
12.8V
|
50Ah | 195*165*175mm | 7kg |
| JW-LFP-12100 | 100Ah | 328*171*215mm | 12kg | |
| JW-LFP-12120 | 120Ah | 328*171*215mm | 15kg | |
| JW-LFP-12150 | 150Ah | 405*175*240mm | 20kg | |
| JW-LFP-12200 | 200Ah | 520*238*218mm | 22.5kg | |
| JW-LFP-12240 | 240Ah | 495*268*219mm | 27kg | |
| JW-LFP-12250 | 250Ah | 495*268*219mm | 28kg | |
| JW-LFP-12300 | 300Ah | 520*267*218 mm | 33kg | |
| JW-LFP-2450 |
25.6V
|
50Ah | 328*171*215mm | 13kg |
| JW-LFP-24100 | 100Ah | 520*267*218mm | 23kg | |
| JW-LFP-24120 | 120Ah | 520*267*218mm | 30kg | |
| JW-LFP-24150 | 150Ah | 495*160*295mm | 35kg | |
| JW-LFP-24200 | 200Ah | 410*370*200mm | 43kg | |
| JW-LFP-3650 | 38.4V | 50Ah | 483*170*240mm | 22kg |
| JW-LFP-36100 | 100Ah | 520*267*218 mm | 33kg |
