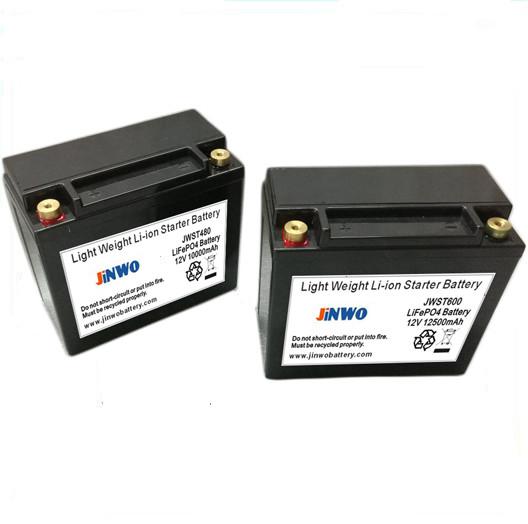

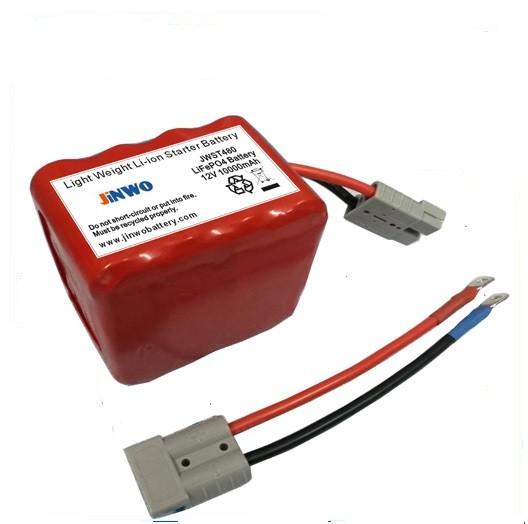

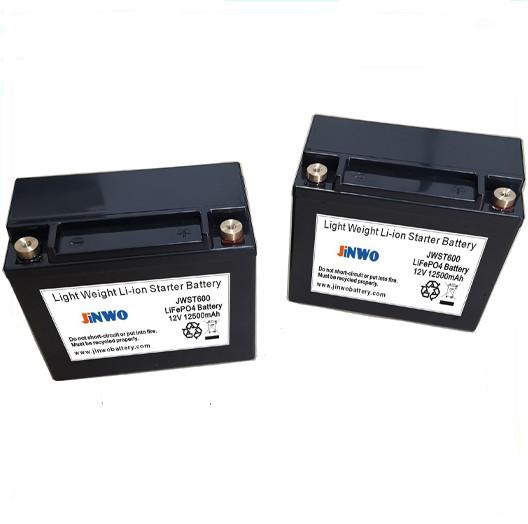

10Ah LiFePO4 Start Battery
Harley Davidson Motorcycle Lithium LiFePO4 Starter Battery Repalcement 10Ah
Competitive Advantage:
1) Less volume and weight: 1/3 of normal lead acid battery
2)Quick recharge with big current: rechargeable with 5C current
3) Excellent Cycle life: more than 2000 cycles under JISD standard(lead acid battery only 150-300cycles)
4)No Spill---No acid inside, no leak problems.
5)No polution--does not contain any acid and heavy metals such as lead, cadmium, hydrargyrum.
OEM/ODM order is welcome !
Description:
12Volt most lightweight starter lifepo4 lithium battery Starting power:
There is simply no comparison between our batteries and lead acid batteries when it comes to stating your bike, which is what motorcycle batteries are designed for, our packs offer super high cranking power-generally twice the cranking power of the lead-acid batteries they replaced.
Ultralight tongyu starter Batteries powered by Lithium Ion Nanotechnology Cells
Superlight Race battery
Tongyu new superlight race battery packs are a revolution in battery technology, Our lithium iron phosphate(LFP)batteries offer an average of 80% weight reduction, far greater starting power and a much longer lifespan when compared to the lead-acid batteries they are designed to replace.
tongyu batteries are replacement for lead acid technology.
This lithium ion car starting battery series are based on Jinwo lifepo4 technology. Compared with lead acid starter batteries, they have very high discharge rate with a smaller capacity and lighter weight.They also feature BMS inside for the safest and long-life performance. They have lower self-discharge rate so they can still provide enough cranking power when sitting for months.
|
Item
|
General Parameter
|
Remark
|
|
Model
|
IFR 3.2V 20AH
|
Single
|
|
Casing material for single cell
|
Polymer aluminum foil
|
1S4P
|
|
Standard capacity(0.2C 5 A)
|
20Ah
|
|
|
Rated voltage
|
12.8V
|
Work voltage:3.20V
|
|
Max.Charge voltage
|
14.4V
|
Single Ave. charge Voltage 3.6V
|
|
Cut-off voltage
|
10.5V
|
Single Ave. Discharge Voltage 2.63V
|
|
Standard charge current
|
40A
|
0.5C (can be adjusted )
|
|
charging Time
|
About 3.0h
|
|
|
Max Continuous discharge current
|
100A
|
1.25C
|
|
Maximum Cranking Amps
|
900A
|
11.25C 1s
|
|
Battery dimension
|
260±1*175±1*200±1mm
|
Single case size
|
|
Total weight(Approx.)
|
About 1.5kg
|
Each box weight, 1pcs / box
|
|
Impedance(Max, at 1000Hz.)
|
≤ 6mΩ
|
Between the positive and negative
|
|
High cold cranking Amps
|
600 CCA
|
-20℃
|
|
Battery case material
|
ABS
|
|
|
Charge method (CC/CV) |
Standard
|
-20℃～55℃
|
|
discharge
|
-20℃～65℃
|
|
|
storage
|
-40℃～55℃
|
OEM ODM service is available !
Why LiFePO4 (Lithium Iron Phosphate)?
|
Items |
Lead Acid |
LiFePO4 |
Other Lithium battery |
|
DOD |
<80% (usually at 50% for longevity) |
100% (usually at 80% for longevity) |
100% (usually at 80% for longevity) |
|
Cycle times (1C) |
<500, DOD50% |
>3000,DOD80% (remain capacity>80%) |
>800, DOD80% |
|
Working years in |
1.5years (Maximum) |
8years(Minimum) |
Around 2years |
|
Weight (per unit energy) |
3 |
1.2 |
1 |
|
Initial first Cost |
1 |
4 to 5times |
Around 3times |
|
Total Cost in 10 years (includingdelivery,replacement ,repair and workforce expense) |
4 times |
1 |
2.5times |
Small Battery and 12V Battery Modules
|
Voltage |
Capacity |
Cycle Times(1C,100%DOD with remain capacity> 80%rated capacity) |
|
|
3.2 V |
0.5Ah-200Ah |
＞2000 |
PCM/BMS |
|
6.4V |
0.5Ah-200 Ah |
＞2000 |
|
|
12V |
0.5 Ah-800Ah |
＞2000 |
|
|
24V |
2 Ah-1000Ah |
＞2000 |
|
|
36V |
2Ah-1000Ah |
＞2000 |
|
|
48V |
2Ah-1000Ah |
＞2000 |
|
|
51.2V |
2Ah-1000Ah |
＞2000 |
|
|
72V |
10Ah-100Ah |
＞2000 |
|
|
76.8 V |
10Ah-300 Ah |
＞2000 |
|
|
96V V |
30Ah-100Ah |
＞2000 |
|
|
… |
… |
… |
|
Company Information
| Facotry Scale | ||
| Item | Quantity | Unit |
| Factory Size | 80,000 | S.Q. |
| Total Employee | 2,000 | Person |
| R&D Staff | 300 | Person |
| Sales | 100 | Person |
| QC Staff | 100 | Person |
| Daily Production | 300,000(32650-3.2V 5-6Ah) | PCS |
| Equipments | 1,000 | Sets |
RFQ:
1. Battery size can design according to your needs.
2. Battery case: plastic case, metal case, pvc film, epoxy board
3. Shipment: by express, by air, by sea
