Car LiFePO4 12V 40Ah

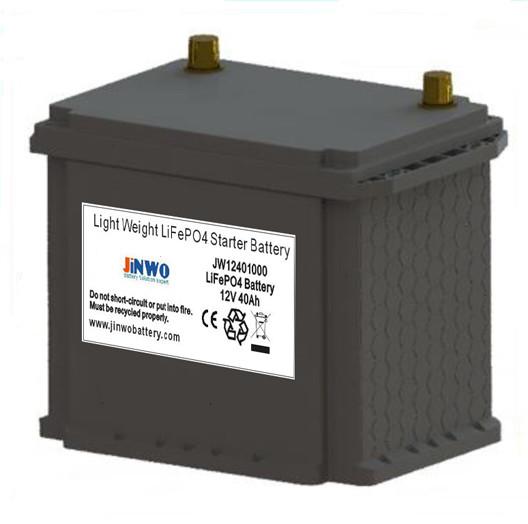

Auto Lithium LiFePO4 Starter Battery 12V 40Ah Car Battery Replacement For 1.0- 3.0L Engine
Quick details
- Maintenance Type: Free
- Weight: 12kg
- Nominal Capacity: 50-100ah
- nominal voltage: 12v
- color: siliver,blue,black,green
- certification: ROHS,SGS,CE,BV,UL,NQA,ISO9001,TS1694
- max discharging current: 2.5C
- warranty: 2years
- working temperature: -20 to 65 centigrades
Application:
1.Electric vehicles: HEV/PEV, Electric bus, Electric bicycle, Electric boat, Electric tricycle, Electric quadricycle, Electric scooter, Electric wheelchairs, Golf cart, Marine, Station/SUV /wagon/Caravan, E-tour car, Forklift, etc.
2.Solar and wind power system:Solar energy storage, PV system, Solar street light, Wind power generation energy storage, etc.
3.Medical devices:Energy power for various kinds of medical devices, etc.
4.Other electric tools and equipments: Lawn mower, Electric saw, UPS, backup storage system, Military equipments, etc.
Specification:
This lithium cranking battery series are based on lifepo4 technology. Compared with lead acid starter batteries, they have very high discharge rate with a smaller capacity and lighter weight.They also feature BMS inside for the safest and long-life performance. They have lower self-discharge rate so they can still provide enough cranking power when sitting for months.
|
Item
|
General Parameter
|
Remark
|
|
Model
|
IFR 3.2V 70AH
|
Single
|
|
Casing material for single cell
|
Prismatic cells
|
1S4P
|
|
Standard capacity(0.2C 5 A)
|
70Ah
|
|
|
Rated voltage
|
12.8V
|
Work voltage:3.20V
|
|
Max.Charge voltage
|
14.4V
|
Single Ave. charge Voltage 3.6V
|
|
Cut-off voltage
|
10.0V
|
Single Ave. Discharge Voltage 2.5V
|
|
Standard charge current
|
14A
|
0.2C (can be adjusted )
|
|
charging Time
|
About 4hrs
|
|
|
Max Continuous discharge current
|
100A
|
1.43C
|
|
Peak discharge current
|
800A
|
11.4C 2seconds
|
|
Battery dimension
|
279±1*175±1*189±1mm
|
Max dimension
|
|
Total weight(Approx.)
|
About 9.5kg
|
Each box weight, 1pcs / box
|
|
Impedance(Max, at 1000Hz.)
|
≤ 8mΩ
|
Between the positive and negative
|
|
High cold cranking Amps
|
600 CCA
|
-20℃
|
|
Battery case material
|
ABS
|
|
|
Charge method (CC/CV) |
Standard
|
-20℃～55℃
|
|
discharge
|
-20℃～65℃
|
|
|
storage
|
-40℃～55℃
|
1.Specializing in lifepo4 battery for electric verhicals, storage battery, Ups and back up power system, military and medical equipment, flashlight, golf trolley/carts and other areas, we were founded in 2002.
2. Once cooperation, the whole life friendship. Not for others, just for the qulity, price and service.
3. Strict quality control system applied to make sure the good quality.
4. We will do our best to satisfy the customers. If you have any interest in our battery, please feel free to contact with us.
