Stainless Steel Bolts ANSI ASME B 18.5 Round Head Bolts A307, SAE J429, F468, F593

Price Negotiable
MOQ: 10KG
Delivery Time: 7-15 workdays
Brand: TOBO
Product Description

Stainless Steel Bolts ANSI/ASME B 18.5 Round head bolts A307, SAE J429, F468, F593



Because the bolt is also a kind of railway accessories, railway accessories is a component of the railway line, the track referred to here includes rail, sleeper, connecting parts, track bed, anti-climbing equipment, rail support and turnout, etc.

Product Description

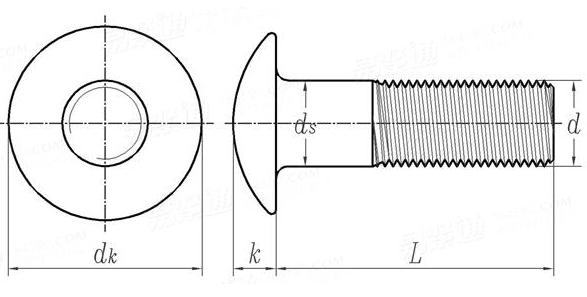

Thread specification
d
10# 1/4 5/16 3/8 7/16 1/2 5/8 3/4 7/8 1
d
PP
ds Max
Min
dk Max
Min
k Max
Min
0.1900 0.2500 0.3125 0.3750 0.4375 0.5000 0.6250 0.7500 0.8750 1.0000
24 20 18 16 14 13 11 10 9 8
0.199 0.260 0.324 0.388 0.452 0.515 0.642 0.768 0.895 1.022
0.182 0.237 0.298 0.360 0.421 0.483 0.605 0.729 0.852 0.976
0.469 0.594 0.719 0.844 0.969 1.094 1.344 1.594 1.844 2.094
0.438 0.563 0.688 0.782 0.907 1.032 1.219 1.469 1.719 1.969
0.114 0.145 0.176 0.208 0.239 0.270 0.344 0.406 0.469 0.531
0.094 0.125 0.156 0.188 0.219 0.250 0.313 0.375 0.438 0.500



Product Name
stainless steel bolt
Size
M1-M46
Grade
4.6,4.8,5.6,6.8,8.8,9.8,10.9,etc
Available Material
carbon steel, stainless steel,alloy steel,etc
Surface treatment
Nature color,Black oxide,Phosphate,Zinc plated,Dacroment,etc
Standard
ISO,BS,ANSI, GB,DIN,JIS,Nonstandard
Quality control
ISO standard,100% Whole range inspection through the production
Certificate
ISO9001:2008,ISO14001:2004
Advantages
OEM / ODM / customized service provided
Products Show



Packing Details



FAQ



Q: Are you trading company or manufacturer ?

A: We are factory.



Q: How long is your delivery time?

A: Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity.



Q: Do you provide samples ? is it free or extra ?

A: Yes, we could offer the sample for free charge but do not pay the cost of freight.



Q: What is your terms of payment ?

A: Payment<=10000USD, 100% in advance. Payment>=10000USD, 50% T/T in advance ,balance before shippment.
