M6 M8 Carbon Steel Hexagon Thin Nuts M12 Stainless Steel Hex Flat Jam Nut DIN439

Price Negotiable

MOQ: 1pcs

Delivery Time: 25 Working days

Brand: TOBO

Product Description

M6 M8 carbon steel hexagon thin nuts M12 stainless steel hex flat jam nut DIN439

Products Specification

Quick Details

Finish:: ZINC PLATED, Black Oxide, galvanized, Plain

Measurement system:: Metric, Imperial (Inch)

Application:: Heavy Industry, Mining, Water Treatment, Healthcare, Retail Industry, Food & Beverage, General Industry, Oil & Gas, Automotive Industry

Place of Origin:: China

Brand Name:: TOBO

Model Number:: 4# to 3'' & M1.6 to M64

Standard:: DIN, ASME B18.2.1 ISO4014, DIN934, DIN6334 ,UNI, JIS,A194 GR2H/2HM/B8/

Item:: hexagonal hex nuts

size:: 4# to 3'' & M1.6 to M64

Grade:: A2 A4 or grade 2 6 8 10

Chamfer:: Single chamfered, double chamfered,

Thread:: Metric SAE, UNC, UNF

Material:: carbon steel, alloy steel, stainless steel, brass,

Surface:: plain, zinc plated, hot dip galvanized

Item	hexagonal hex nuts
size	4# to 3'' & M1.6 to M64
Standard	ASME B18.2.1 ISO4014, DIN934, DIN6334 ,UNI, JIS,A194 GR2H/2HM/B8/B8M/4/7 A563GRDH
Thread	Metric SAE, UNC, UNF
Grade	A2 A4 or grade 2 6 8 10
Material	carbon steel, alloy steel, stainless steel, brass, nylon, aluminum
Surface	plain, zinc plated, hot dip galvanized ,black oxide,dacromet, geomet,xylan

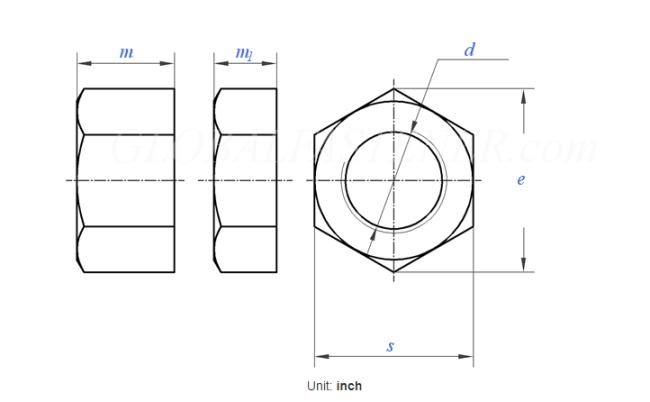

Screw Thread
d

d
PP	UNC
	UNF
	8-UN
s	min
	max
e	min
	max
m	min
	max
m₁	min
	max

1.1250	1.2500	1.3750	1.5000	1.7500	2.0000	2.2500	2.5000	2.7500	3.0000	3.2500	3.5000	3.7500	4.0000
7	7	6	6	5	4-1/2	4-1/2	4	4	4	4	4	4	4
12	12	12	12	-	-	-	-	-	-	-	-	-	-
8	8	8	8	8	8	8	8	8	8	8	8	8	8
1.756	1.938	2.119	2.300	2.662	3.025	3.388	3.750	4.112	4.475	4.838	5.200	5.562	5.925
1.812	2.000	2.188	2.375	2.750	3.125	3.500	3.875	4.250	4.625	5.000	5.375	5.750	6.125
2.002	2.209	2.416	2.622	3.035	3.449	3.862	4.275	4.688	5.102	5.515	5.928	6.341	6.755
2.093	2.309	2.526	2.742	3.175	3.608	4.041	4.474	4.907	5.340	5.774	6.207	6.640	7.073
1.079	1.187	1.310	1.433	1.679	1.925	2.155	2.401	2.647	2.893	3.124	3.370	3.616	3.862
1.155	1.282	1.409	1.536	1.790	2.044	2.298	2.552	2.806	3.060	3.314	3.568	3.822	4.076
0.579	0.687	0.747	0.808	0.929	1.050	1.155	1.401	1.522	1.643	1.748	1.870	1.990	2.112
0.655	0.782	0.846	0.911	1.040	1.169	1.298	1.552	1.681	1.810	1.939	2.068	2.197	2.326

Packing & Shipping

Package details:

1) Sample order, 20/25kg per carton with our logo or neutral package;

2) For Large orders, we can custom packaging;

3) Normal Packing: 1000/500/250pcs per small box. then into cartons and pallet;

4) According to customers' requirements.

FAQ

Q: Are you trading company or manufacturer ?

A: We are factory.

Q: How long is your delivery time?

A: Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity.

Q: Do you provide samples ? is it free or extra ?

A: Yes, we could offer the sample for free charge but do not pay the cost of freight.

Q: What is your terms of payment ?

A: Payment<=10000USD, 100% in advance. Payment>=10000USD, 50% T/T in advance ,balance before shippment.
