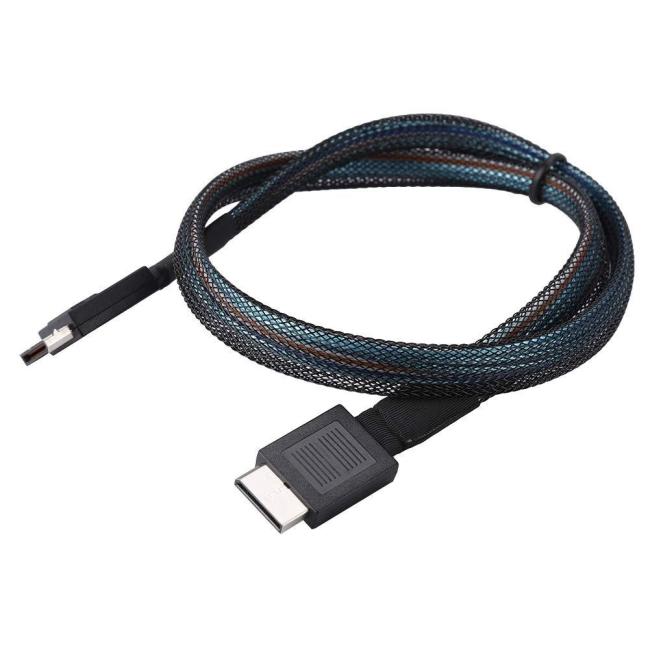

SFF-8611 Oculink 4i Cable PCIe Gen3 0.5M Oculink cable for Computer server

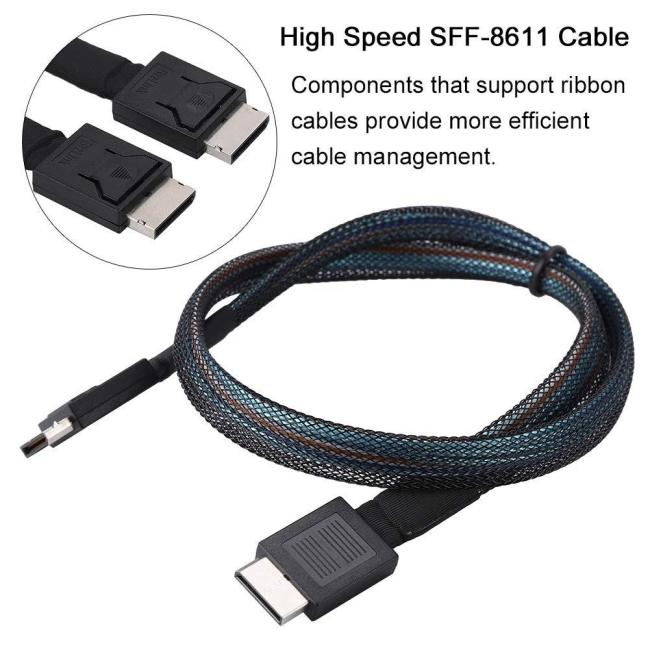

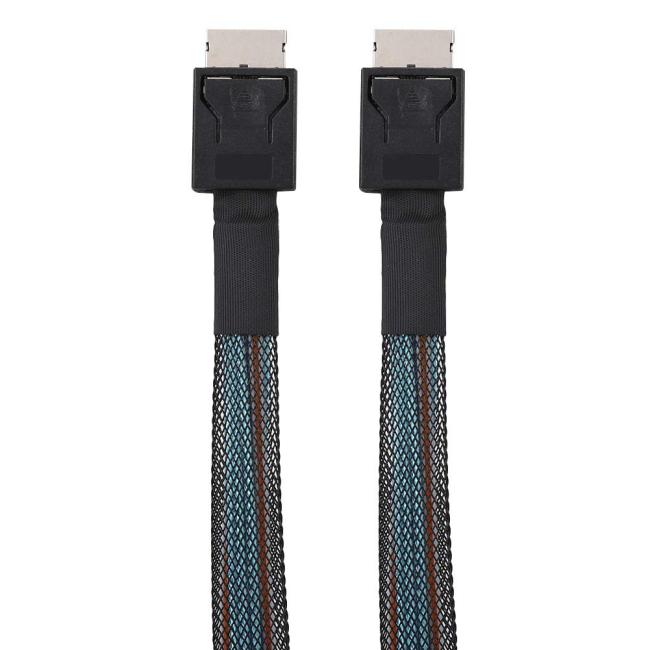

High-speed PCI-E Gen3 SFF8611 Oculink male-to-male cable

The length of the line is about 50CM

Transmission rate 24Gbps

Can be used to connect disk cage backplane and Oculink interface NVMe HBA card array card server, Ethernet, network card, cloud computing, cloud storage network, good speed network, etc.

The next generation PCIe/SAS interface OCuLink is a companion specification to the PCI Express (PCIe) basic specification. The main focus is on internal and external small PCIe connectors and cables optimized for special customers and mobile market segments. The specification defines wiring and connector requirements that meet the requirements of PCIe Gen 4,16Gb/s signaling, enabling co-existence of fiber and copper cable technologies.

l Complies with SAS and PCIe protocols

l Support for the new PCIe 4.0 specification running at 16Gb/s per channel

l Support for pluggable module applications

l Compatible support for next-generation PCI Express 5.0 running at 32Gbps for future proofing and lower development costs in the coming years.
