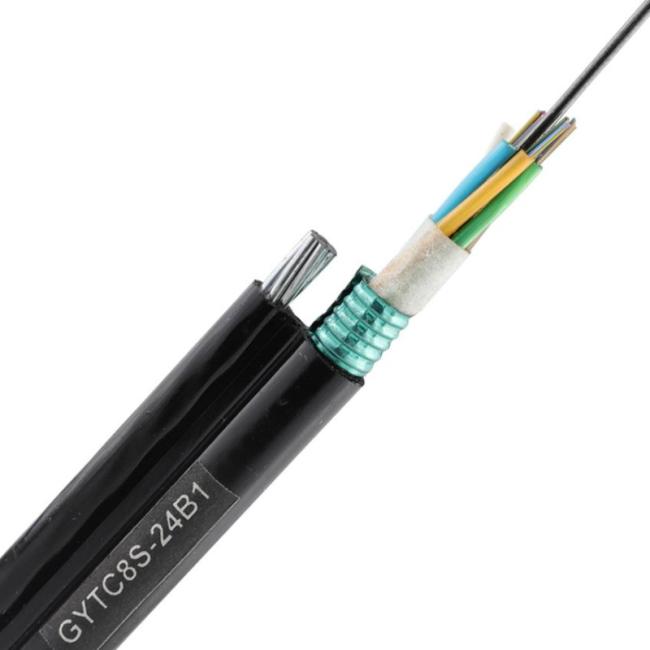

GYTC8S Central Loose Tube Armored Fiber Patch Cable 28 Strand 24 Strand
TOP Quality GYTC8S Armored Central Loose Tube 24 Or 48 Core Figure 8 Fiber Optic Cable
Packing &delivery:
1) Length: 3000 m/roll or other length is available according to lients request.
2) Packing: Wooden drum
3) Other packing available according to client's request
Delivery Detail: 7-15 days after receiving 30% T/T or L/C

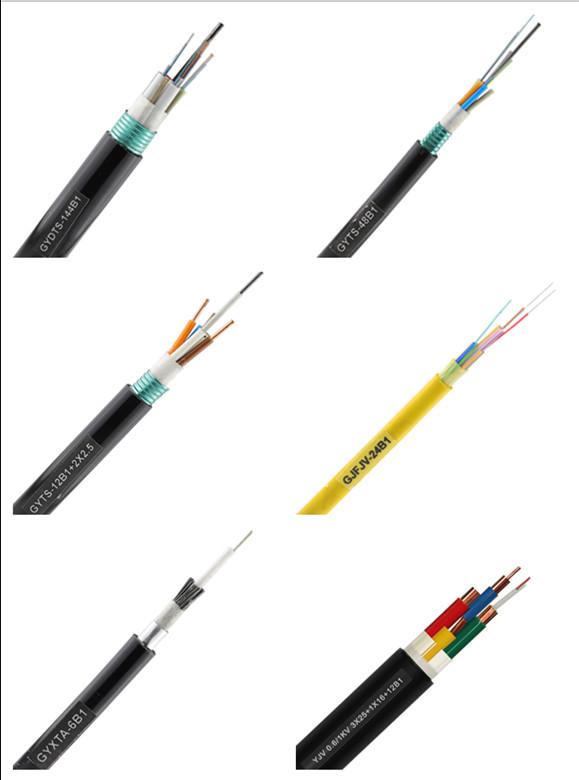

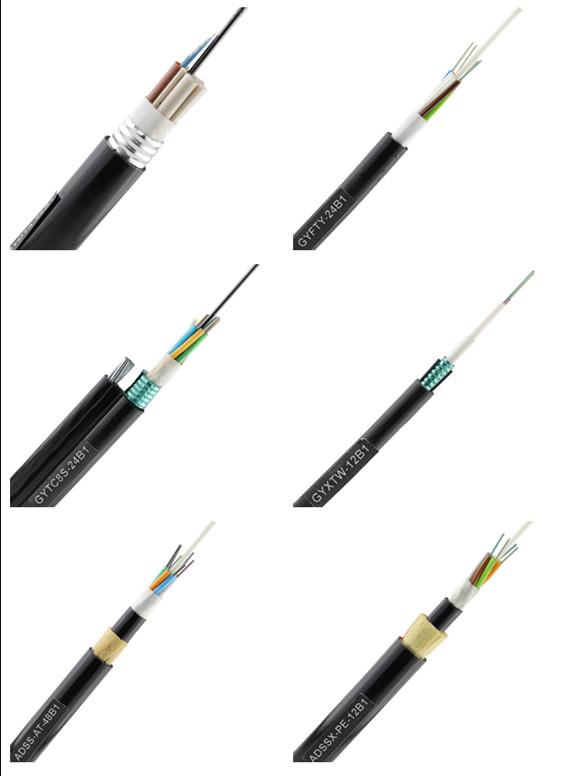

Our other products:
1) 1-288core Fiber Optic Cable Indoor and outdoor,
2) network cables: CAT8,CAT7,CAT6A,CAT5E, UTP, FTP, SFTP cable,
10pair-200pair telephone cables
3) Coaxial cables RG6,RG59,SAT703,CCTV cameras cable, Fire Alarm cables, Alarm cables for security systems,
4) Network accessories: PON OUN, FTTH Kit, terminal box, patch panel ,POE Extender, surface box, Crimping tool, RJ45 Plug, media converter.....
5) We also supply second hand Machine+ Cable production technic
Certificate: UL(CMR), CPR, CE,RoHS, ISO
Product description:
Optical Characteristics
| G.652 | G.655 | 50/125μm | 62.5/125μm | ||
| Attenuation (+20℃) |
'@850nm | ≤3.0 dB/km | ≤3.0 dB/km | ||
| '@1300nm | ≤1.0 dB/km | ≤1.0 dB/km | |||
| '@1310nm | ≤0.36 dB/km | ≤0.40 dB/km | |||
| '@1550nm | ≤0.22 dB/km | ≤0.23 dB/km | |||
| Bandwidth (Class A) |
'@850nm | ≥500 MHz·km | ≥200 MHz·km | ||
| '@1300nm | ≥1000 MHz·km | ≥600 MHz·km | |||
| Numerical Aperture | 0.200±0.015NA | 0.275±0.015NA | |||
| Cable Cut-off Wavelength λcc | ≤1260nm | ≤1480nm | |||
Technical Parameters
| Cable Type | Fiber Count | tubes | fillers | Cable Weight kg/km | Tensile Strength Long/Short TermN |
Crush Resistance Long/Short Term N/100mm |
Bending Radius Static/Dynamic mm |
| GYTC8S-2~6 | 2~6 | 1 | 4 | 214 | 1000/3000 | 300/1000 | 10D/20D |
| GYTC8S-8~12 | 8~12 | 2 | 3 | 214 | 1000/3000 | 300/1000 | 10D/20D |
| GYTC8S-14~18 | 14-18 | 3 | 2 | 214 | 1000/3000 | 300/1000 | 10D/20D |
| GYTC8S-20~24 | 20-24 | 4 | 1 | 214 | 1000/3000 | 300/1000 | 10D/20D |
| GYTC8S-26~30 | 26-30 | 5 | 0 | 214 | 1000/3000 | 300/1000 | 10D/20D |
Storage/Operating Temperature : -40℃ to + 70℃
FAQ
1.What is your MOQ?
Could be coordinated if you have detail requirements.
