High Efficiency Ms05 Poclain Radial Hydraulic Motors And Spare Parts Multipurpose
Product Description

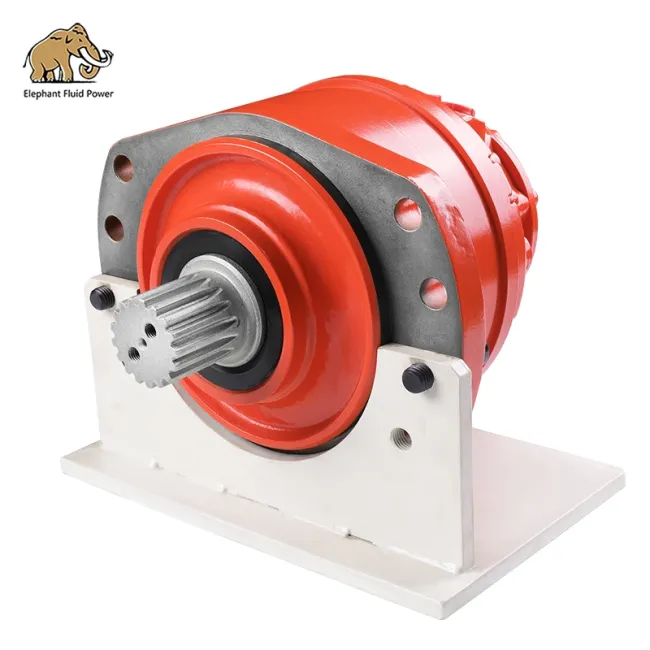

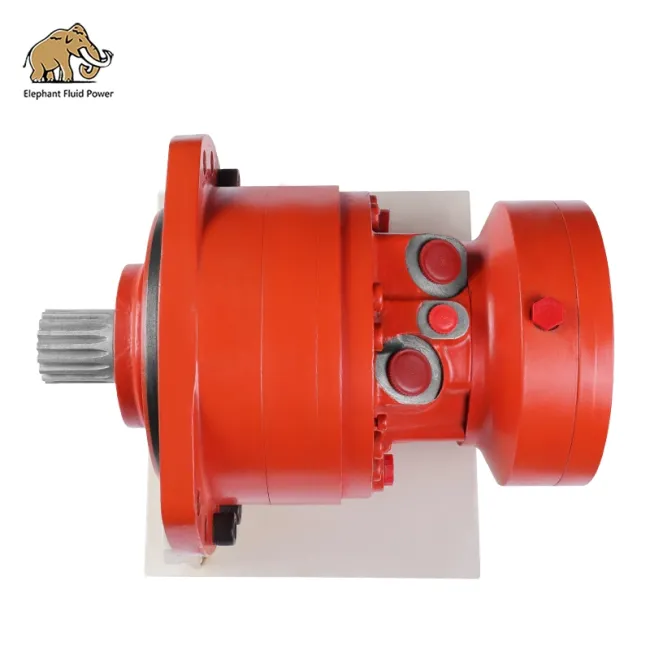

MS05 MSE05 High Torque Hydraulic Drive Motor Poclain MOTOR
matching Polcain motors, the same specifiion, same design, and performance,100% replacement of original type.
1). Radial piston type;
2). Adopt Imported Bearing and Oil Seal, etc.
3). Modular design, High efficiency, High pressure and smooth running even at very low speeds.
4). Permissible Radial and Axial load, Motor with multi-disc brake, Motor emission control.
| Type | HMS05 | HMSE05 | ||||||||
| Displacement | 6 | 8 | 0 | 1 | 2 | 8 | 0 | 1 | 2 | 3 |
| Displacement(ml/r) | 260 | 376 | 468 | 514 | 560 | 503 | 625 | 688 | 750 | 820 |
| Theoretical torque at 10Mpa(N.m) | 413 | 598 | 744 | 817 | 890 | 800 | 994 | 1094 | 1193 | 1304 |
| Rated speed(r/min) | 160 | 160 | 125 | 125 | 125 | 100 | 400 | 100 | 80 | 80 |
| Rated pressure(MPa) | 25 | 25 | 25 | 25 | 25 | 25 | 25 | 25 | 25 | 25 |
| Rated torque(N. m) | 850 | 1200 | 1500 | 1650 | 1800 | 1650 | 2050 | 2250 | 2450 | 2650 |
| Max pressure(MPa) | 31.5 | 31.5 | 31.5 | 31.5 | 31.5 | 31.5 | 31.5 | 31.5 | 31.5 | 31.5 |
| Max.torque(N.m) | 1050 | 1500 | 1850 | 2050 | 2250 | 2030 | 2500 | 2750 | 3000 | 3300 |
| Speed range(r/min) | 0-265 | 0-250 | 0-240 | 2-220 | 0-200 | 0-200 | 0-190 | 0-175 | 0-160 | 0-140 |
| Max.power(kw) | Standard displacement is 29kW, variable displacement priority rotation 19kW. no priority is 15kW |
|||||||||
Elephant Fluid Power is Chinese Leaser Manufacturer for the Poclain & Rexroth Hydraulic Motor, Spare parts.
Brand New.
OEM Quality
Perforamance same with original.
Full Spare parts in Stock for Repair, Maitaince
12 Months warranty under normal use and maintenance
Your Best Choice for the Original Replacment.
Mining Machinery: Coal Winning Machine, Road Header, Scraper, Heavy Duty Handling Car, Coal Mine Drill
Engineering Machinery: Skid Steer Loader, Down-the-hole Drill, Rotary Drill, Mini and Midi Excavators, Mixer Truck, Cutting Machine
Marine Machinery: Gantry Crane
List of Poclain, Rexroth Motor & It's Spare Parts we prvide.
MS Sereis: MS(E)02,MS(E)05,MS(E)08,MS(E)11,MS(E)18,MS25,MS35,MS50,MS83,MS125...
MK Sereis: MK04,MK(E)18,MK(E)23,MK35,MK47...
MHP Sereis: MHP13,MHP20 ...
: 3,5,10 ..
HDC(E): HDC(E)02,HDC(E)05,HDC(E)08,HDC(E)11,HDC(E)18,HDC35,HDC50,HDC83,HDC125...
HTC(E): HTC(E)02,HTC(E)05,HTC(E)08,HTC(E)11,HTC(E)18,HTC35,HTC50,HTC83,HTC125 ...
The spare parts of our HMS and H series motors can completely replace the imported motor parts
Meanwhile, our motor' s performance is close to the imported motors
HMS02/HMS05/HMS08/HMS11/HMS18/HO3 series Motors have passed the quality tested by Chinesemachinery testing Centre.
100% interchangeable:Both complete motor and spare parts, our products could completely replace to Poclain & Rexroth original motors.
Reasonable price:In the spirit of winwin principle, our price system has been settled much lower than Poclain & Rexroth original motors.
Fast delivery time:Most of the spare parts we have inventory, so that we can keep the delivery time within 10 days for regular motor.
Excellent aftersales service:we have 12 months' quality warranty, and within warranty time ,all repairment are free of charge.
Our company:
Elephant Fluid Power has been engaged in the hydraulic business since the beginning of the 20th century. It has a history of nearly 20 years and has always been upholding the principles of "quality first", "credit first" and "zero complaint", and has become a new leader in the hydraulics industry. Elephant Fluid Power insists on good products, good service, and has been providing customers with better, more comprehensive hydraulic products, and constantly.
we will support price, delivery time, etc info you need accordingly.
Let us support your business with our sterngth.
