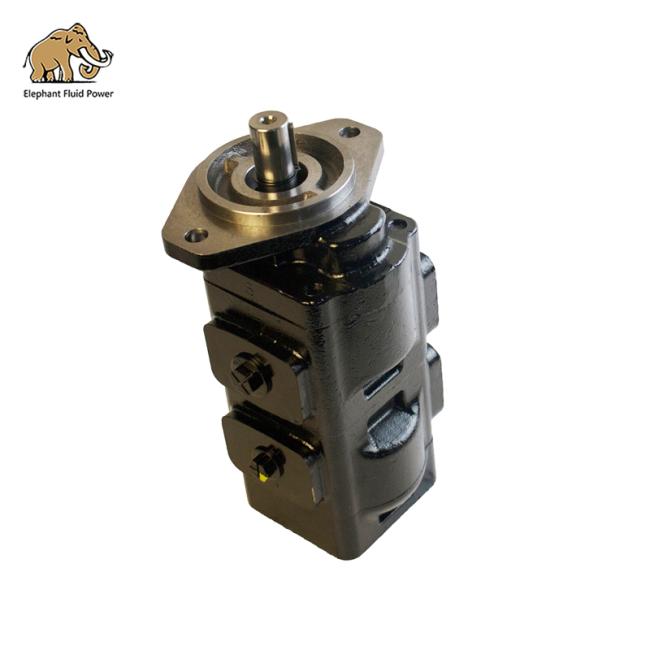

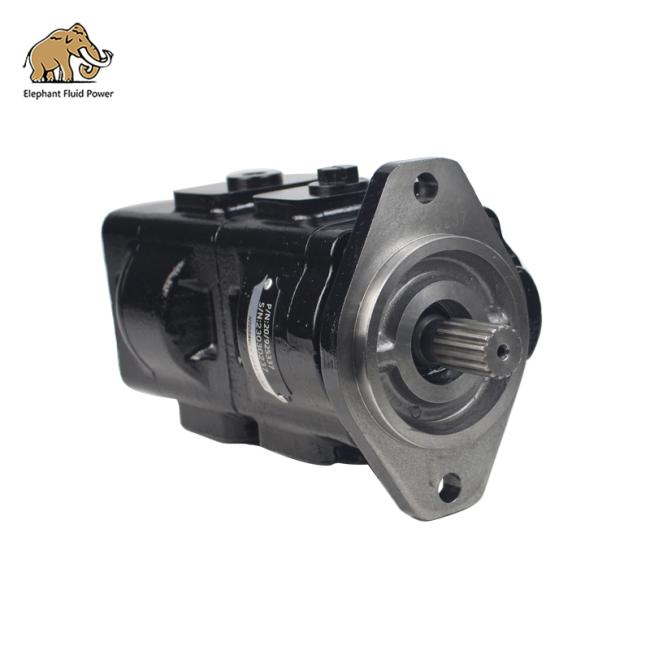

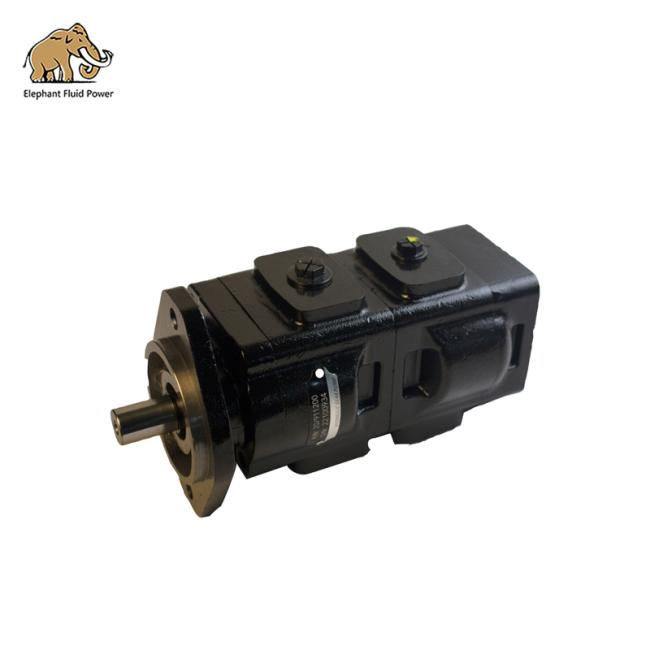

Elephant Fluid Power Made OEM 20/925337 Hydraulic Parker Pump JCB 3CX Twin
Elephant Fluid Power Made OEM Parker 20/925337 Hydraulic Pump JCB 3CX Twin Hydraulic Pump Gear Pump Replacement
Best Price Parker 20/925337 Hydraulic Pump JCB 3CX Twin Hydraulic Pump Gear Pump
Elephant Fluid Power offers Best Price Parker 20/925337 Hydraulic Pump JCB 3CX Twin Hydraulic Pump Gear Pump,equivalent quality as original,fast delivery time,one year warranty after-sales.
Techinical information:
- Rotation: Clockwise (looking from shaft end)
- 1” Diameter 15 tooth SAE splined shaft 16/32 Pitch
- SAE B 2 hole mounting flange
- Front pump displacement: 29 cc/rev (29L/Min per 1000 rpm)
- Rear pump displacement: 23 cc/rev (23L/Min per 1000 rpm)
- Single 2” SAE flange inlet
- Combined Single pump outlet: 1 1/16”-12 UNF threaded
- Maximum working pressure on front pump: 275 bar
- Maximum working pressure on rear pump: 275 bar
- Max. Input shaft torque: 460 Nm
Weight
- 26KG
Replaces the following JCB part numbers
- 20/925337
JCB Pumps we supply:
At Elephant Fluid Power we have a wide range of aftermarket JCB parts, including an extensive range of HYDRAULICS parts.
- JCB Gear Pump ( List as following)
- JCB main Pump ( K3V63 K3V112DT, K5V140DTP, HPV118, HPV145, K5V140DTP etc)
- JCB piston Pump ( Rexroth A10VSO, A20V Sereies )
- Spare parts of JCB Main Pump, and Piston Pump ( Piston, Cylinder block, valve plate, charge pump, control valve, seal kit ...)
- JCB Steering (35/410900 35/410700 etc)
| JCB CODE of Gear Pump |
| 332/F9030 20/925580 7029120047 |
| 333/G5390 332/G7135 |
| 332/F9032 |
| 332/F9029 20/925579 20/925339 20/925338 |
| 332/F9031 20/925581 333/G5391 |
| 20/925340 7029120005 |
| 20/925341 |
| 20/925366 220/925586 333/C5234 333/G5392 |
| 20/925337 |
| 20/925578 20/925586 332/F9028 |
| 20/912800 20/903100 20/902900 |
| 20/903200 20/911200 |
| 20/902900 |
| 20/903000 |
| 20/903300 4074 |
| 20/925592 20/925357 |
| 7049520006 332/E6671 |
| 919/75002 |
| 20/925732 7049532007 |
| 20/925588 20/925356 7029530002 |
| 20/925591 20/918300 |
Our Hydraulic Pump - JCB gear pumps and piston pumps can be shipped to over 70 countries worldwide. If you need any help in choosing the right part or want to make sure the part is the right one for your machine, then our friendly team will be more than happy to help.Our products have been a famous brand in the world based on our quality and services.If you need any of them,you can contact me for more details.
