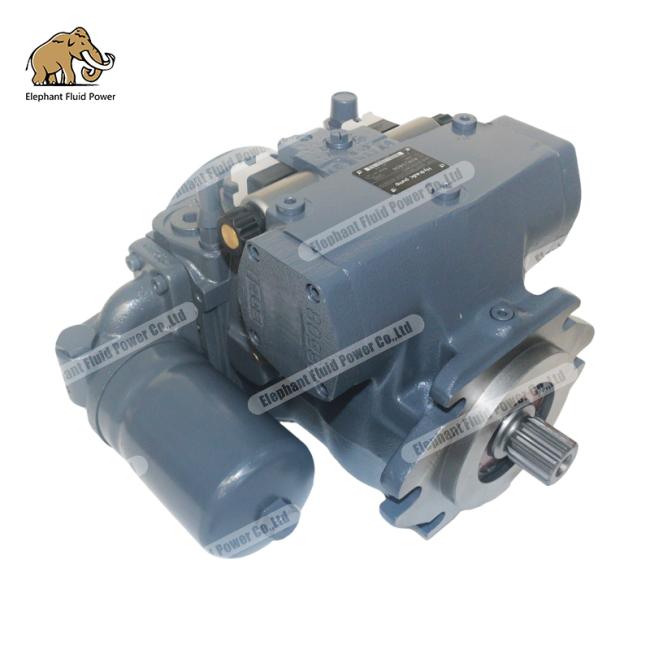

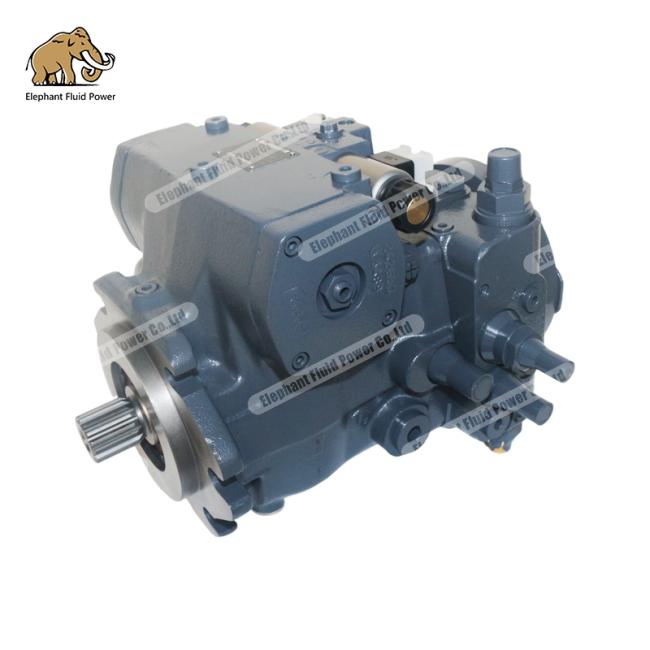

Bosch Rexroth A4VG71 Hydraulic Pump with 400 Bar Nominal Pressure 450 Bar Maximum Pressure and 100% Interchange
Hydraulic Pump Bosch Rexroth A4VG71 Available In Stock With Warranty
Elephant Fluid Power Co.,Ltd makes Hydraulic Pump Bosch Rexroth A4VG71 Available In Stock With Warranty,good quality,best price,fast lead time,good after-sales services.one year warranty .
Technical data:
- High pressure pump for applications in closed circuits
- Size 28 ' 125
- Nominal pressure 400 bar
- Maximum pressure 450 bar
- Closed circuit
- Metric version
.
| Size | 28 | 40 | 56 | 71 | 90 | 125 | 180 | 250 | |||
| Displacement | variable pump | Vgmax | cm3 | 28 | 40 | 56 | 71 | 90 | 125 | 180 | 250 |
| boost pump (at p = 20 bar) | VgSp | cm3 | 6.1 | 8.6 | 11.6 | 19.6 | 19.6 | 28.3 | 39.8 | 52.5 | |
| Speed | maximum at Vgmax | nmaxcontinuous | rpm | 4250 | 4000 | 3600 | 3300 | 3050 | 2850 | 2500 | 2400 |
| limited maximum | nmax limited | rpm | 4500 | 4200 | 3900 | 3600 | 3300 | 3250 | 2900 | 2600 | |
| intermittent maximum | nmax interm. | rpm | 5000 | 5000 | 4500 | 4100 | 3800 | 3450 | 3000 | 2700 | |
| minimum | nmin | rpm | 500 | 500 | 500 | 500 | 500 | 500 | 500 | 500 | |
| Flow | at nmax continuous and Vg max | qv max | l/min | 119 | 160 | 202 | 234 | 275 | 356 | 450 | 600 |
| Power | at nmax continuous and Vg max p = 400 bar | Pmax | kW | 79 | 107 | 134 | 156 | 183 | 237 | 300 | 400 |
| Torque | p = 400 bar | Tmax | Nm | 178 | 255 | 356 | 451 | 572 | 795 | 1144 | 1590 |
| at Vg max | p = 100 bar | T | Nm | 44.5 | 63.5 | 89 | 112.8 | 143 | 198.8 | 286 | 398 |
| Moment of inertia (of the turning parts) | J | kgm2 | 0.0022 | 0.0038 | 0.0066 | 0.0097 | 0.0149 | 0.0232 | 0.0444 | 0.0983 | |
| Angular acceleration, max. | rad/s2 | 38000 | 30000 | 24000 | 21000 | 18000 | 14000 | 11000 | 6700 | ||
| Speed variation, max. | rpm | 103 | 81 | 72 | 69 | 64 | 55 | 50 | 34 | ||
| Rotary stiffness | shaft end S | Nm/rad | 31400 | 69000 | 80800 | 98800 | 158100 | 218300 | 244500 | 354500 | |
| shaft end T | Nm/rad | - | - | 95000 | 120900 | - | 252100 | 318400 | 534300 | ||
| shaft end A | Nm/rad | - | 79600 | 95800 | 142400 | 176800 | 256500 | - | - | ||
| shaft end Z | Nm/rad | 32800 | 67500 | 78800 | 122800 | 137000 | 223700 | 319600 | 624200 | ||
| shaft end U | Nm/rad | 50800 | - | - | 107600 | - | - | - | - | ||
