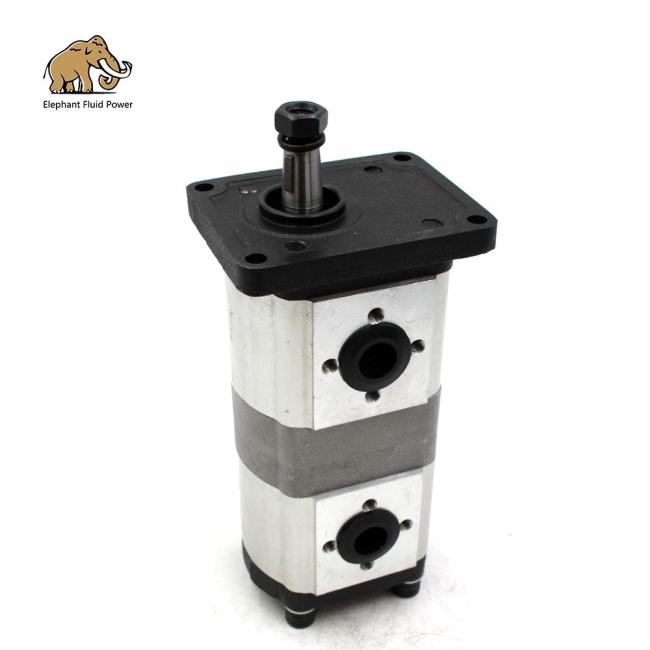

Cbt E3 Hydraulic Tractor Pumps Oil Gear Parts 400rpm For Forklift
Hydraulic Tractor Pump CBT-E3-12-12-F-S3-R-11 Hydraulic Gear Pump Forklift Pump Gear Oil Pump
Product details:
CBT-F5 gear pump adopts high-strength aluminum alloy material, and the internal structure uses many advanced technologies such as axial clearance floating compensation, radial balance, and DU self-lubriion. It has the characteristics of high volumetric efficiency, high pressure, low noise, strong vibration resistance and long life. Widely used in construction machinery such as forklifts, loaders, excavators, cranes, road rollers and mining, light industry, environmental sanitation, agricultural machinery and other industries
When the gear meshes, the tooth-direction contact line separates the oil suction chamber and the pressure oil chamber, and plays the role of oil distribution. When the driving gear of the gear pump is driven by the electric motor to continuously rotate, the gear teeth are disengaged from the meshing side. As the sealing volume increases, oil is continuously sucked from the oil tank. The gear teeth enter the meshing side, and the sealing volume decreases continuously. Drain oil, this is how the gear pump works
Product Advantage:
★ High-strength aluminum alloy shell
★ Input shaft connection forms include flat key, rectangular spline, involute spline, SAE involute spline
★ The connection forms of the inlet and outlet ports are available with thread, flange, etc.
★ The automatic axial clearance compensation mechanism enables the oil pump to maintain high efficiency for a long time
★ The working pressure is high, the speed range is wide, and the high volumetric efficiency can be maintained even when the speed reaches 400rpm.
Specifiions
| Attribute | Specifiions |
| Material | Cast/Ductile iron, steel, bronze and others |
| Types | Tractor pump |
| Function | Completely interchangeable with original pump |
| Parts name | Hydraulic gear pump |
| Processing technic | Cutting, lathe, machining center, heat treatment, grind, honing, burring and so on |
| Trademark | Elephant Fluid Power, Neutral label, or according to client’s requirement |
