Cbt-E3 Agricultural Equipment 16MPa Hydraulic Tractor Pumps 6ml/R

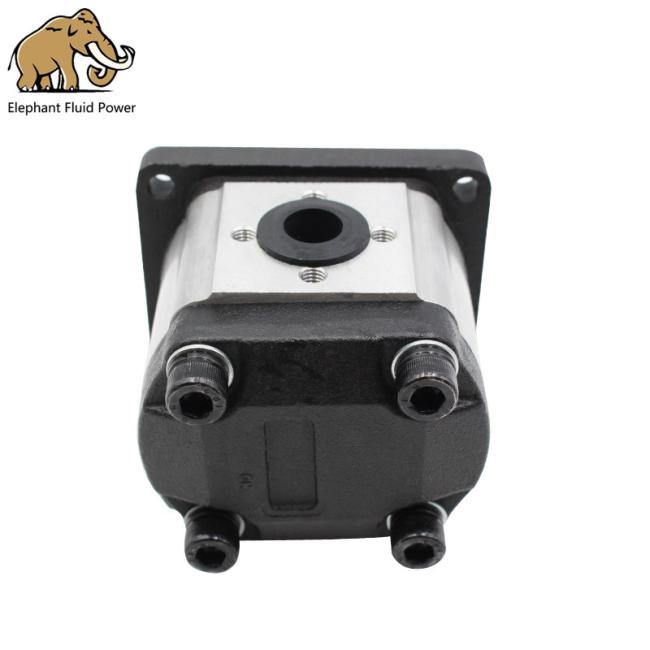

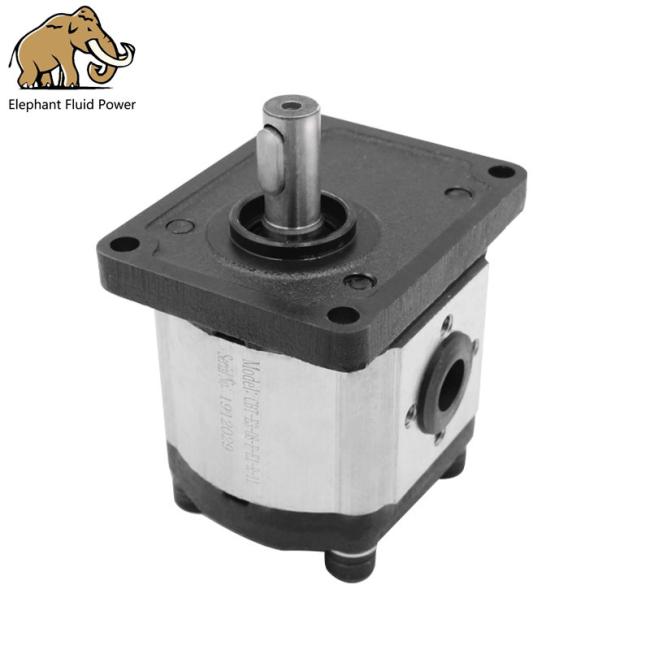

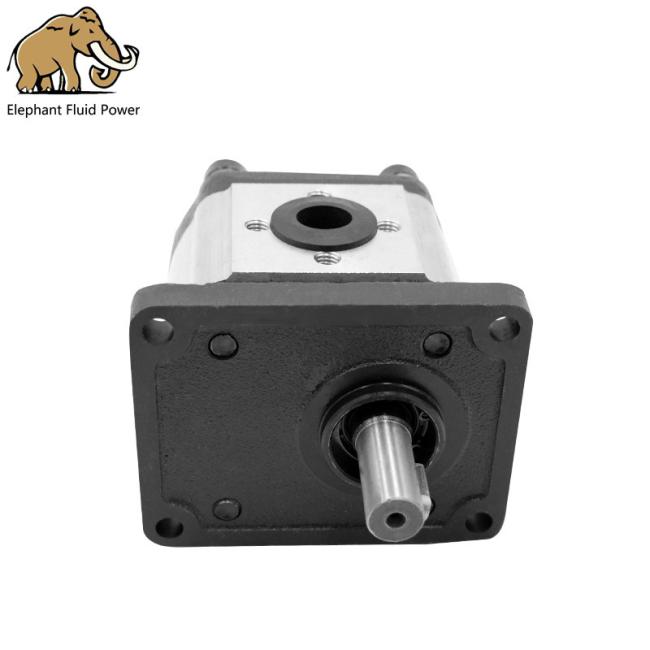

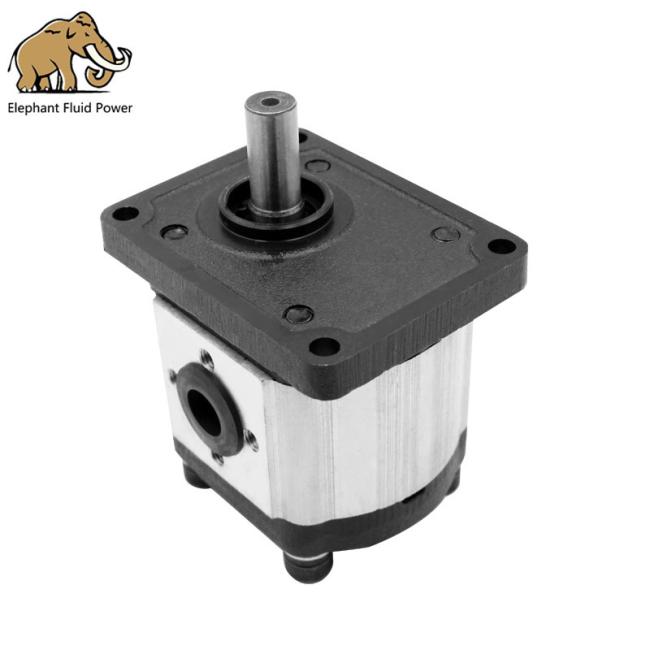

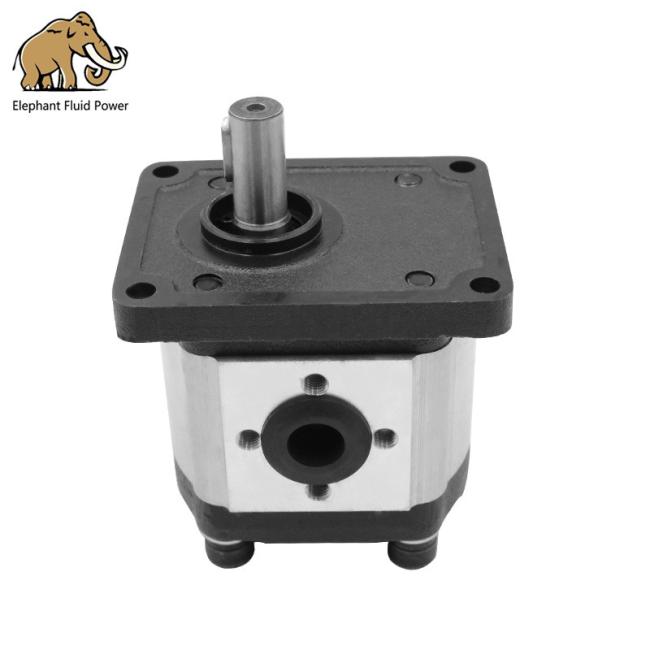

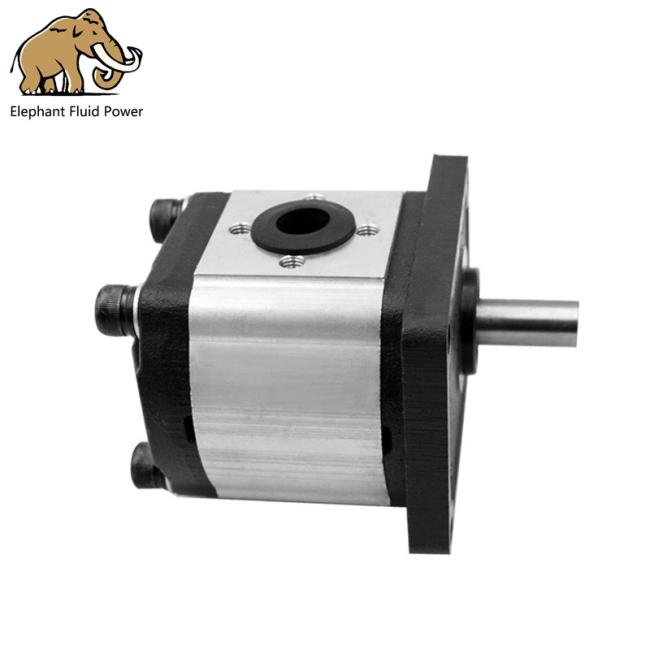

Cbt-E3 high pressure tractor gear pump for agricultural equipment
Tractor gear pump CBT-E3 series can be provided with various kinds of mounting flange, shaft ends, and connection styles of inlet and outlet . This series pump can be made as CBT-E3******--side-in and rear-out, rear-in and side-out. CBT-E3 pumps can also be combined as a relief pump CBT-E3***YL***with safety valve, or as a constant flow pump CBT-E3***HL***with constant flow valve.
Features:
| 1. Low noise and long service life |
| 2. Appliion of high strength aluminum alloy materials, light weight, low installation labor intensity |
| 3. Input shaft types: key,rectangular spline,involute spline and woodruff |
| 4. Connections types for the inlet and outlet ports: thread or flange etc. |
| 5. Axial gap automatic compensation mechanism keeps high volumetric efficiency |
Specifiions:
| Type | Displacement | Max.pressure | Max.speed | Min.speed | ||
| P1 | P2 | P3 | ||||
| cm3/rev | bar | bar | bar | r/min | r/min | |
| CBT | 3 | 270 | 285 | 300 | 4000 | 800 |
| CBT | 4 | 270 | 285 | 300 | 4000 | 600 |
| CBT | 6 | 270 | 285 | 300 | 4000 | 600 |
| CBT | 8 | 270 | 285 | 300 | 3500 | 500 |
| CBT | 10 | 270 | 285 | 300 | 3000 | 500 |
| CBT | 12 | 270 | 285 | 300 | 3000 | 500 |
| CBT | 14 | 250 | 265 | 280 | 4000 | 500 |
| CBT | 16 | 250 | 265 | 280 | 4000 | 500 |
| CBT | 18 | 250 | 265 | 280 | 3600 | 400 |
| CBT | 20 | 220 | 235 | 250 | 3200 | 400 |
| CBT | 22 | 220 | 235 | 250 | 3000 | 400 |
| CBT | 25 | 200 | 215 | 230 | 3000 | 400 |
| CBT | 28 | 180 | 190 | 200 | 2500 | 400 |
| CBT | 30 | 160 | 170 | 180 | 2500 | 400 |
Our main business:
| Hydraulic piston pump and spare parts for sale | Hydraulic vane pump and spare parts for sale |
| Hydraulic piston motor and spare parts for sale | Hydraulic orbital motor for sale |
| Hydraulic steering unit for sale | Hydraulic gear pump for sale |
| Directional control valve | |
Our Company:
Elephant Fluid Power is a company that specializes in repairing heavy equipment, providing tractor gear pumps, excavator gear pump repairs, and other agricultural gear pumps, as well as hydraulic systems used in agricultural equipment. We are a factory, solid experience, competent experts, preferential prices, fast delivery, and first-class quality provide us with a competitive advantage. Especially for hydraulic pumps such as tractor gear pumps and forklift gear pumps, we have many customers. The tractor pumps we provide are the same as the original ones, but the price is two-thirds cheaper than the original brand, and the delivery time is many days faster than the original one. Customers choose us not only to reduce maintenance costs, but also to reduce losses caused by long-term equipment downtime.
If you need it, or if there is a friend's tractor and other agricultural machinery that needs to be repaired and replaced, you can contact us and we will give you the best shopping experience.
Elephant Fluid Power, the best choice for tractor gear pumps
