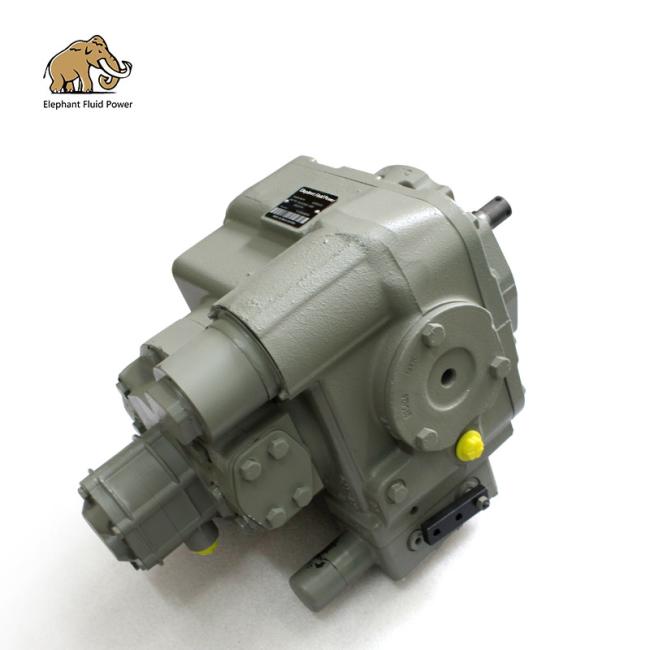

Mixer Truck Parts Sauer Pv23 Hydraulic Piston Pump For Beton
Mixer Truck Parts Sauer PV23 Hydraulic Piston Pump for Hydraulic Beton
PV23 Hydraulic Piston Pump Widely Used For Hydraulic Beton
Appliion Range
PV23 Hydraulic Piston Pump Widely Used For Hydraulic Beton.Elephant Fluid Power Co.,Ltd manufacture Sauer PV23 Series Hydraulic Piston variable Pump. It is closed hydraulic system made up ofaxial hydraulic pump and motor. 100% compatible with original Sauer.The pump is variable pump with charge pump andthe motor is fixed-displacement or variable-displacement motor with valve assy. The control way of changing displacement includes MDC, HDC and EDC which canefficiently control the discharge, direction and power of the output oil. Thehydraulic transmission system made up of this series of pump and motor hasfeatures of wide work range, reliable working state, easy operation and can bewidely used on the hydraulic apparatus of engineering machine, agriculturalmachine, mine machine, aviation and transport machine.
Technical Parameters
| Model | Max. Displacement(ml/r) |
Pressure/Mpa
|
Max Speed /(r/min) |
output Power (when at 10Mpa,1500r/min)/KW |
Variable Pump
|
Fixed Displacement Motor
|
||||
| Rated | Max | Flow at Max.Speed /(L/min) |
Charge PumpDisplacement /(mL/r) |
Weight/kg | Torque at 10Mpa | Weight/kg | ||||
| 20 | 33.3 | 21 | 35 | 3800 | 8.2 | 126.5 | 8.2 | 45 | 54.1 | 27 |
| 21 | 51.6 | 21 | 35 | 3500 | 12.7 | 180.6 | 12.3 | 53 | 84.1 | 34 |
| 22 | 69.8 | 21 | 35 | 3200 | 17.2 | 223.4 | 18.0 | 61 | 114.2 | 40 |
| 23 | 89.0 | 21 | 35 | 2900 | 21.9 | 258.1 | 18.0 | 78 | 144.3 | 47 |
Besides, we can also provide spare parts for other models of Concrete Pump Truck and Hydraulic Beton:
- Rexroth A4VTG90/A2FM80/A2FM90/A2FM63/A10VO28/A2FO32/A2FO23 Main Pump or Boom Pump
- Eaton 6423/6433/5423/5433/4623/4633 Main pump
- Sauer PV089 90R100 PV23 PV22 MF23 MF22 Hydraulic Pump
- Reducer PMP 7.1R 130/6.5R 120/P90 P68 580L, TM61.2/TM71.2 P3301,PMHP110/PMHM110/PMHP90/PMHM90
Elephant Fluid Power has been engaged in the hydraulic business since the beginning of the 20th century. It has a history of nearly 20 years and has always been upholding the principles of "quality first", "credit first" and "zero complaint", and has become a new leader in the hydraulics industry. Elephant Fluid Power insists on good products, good service, and has been providing customers with better, more comprehensive hydraulic products, and constantly.
If you are interested in our products, please contact me, I will provide the best price support and quality service.
I believe we will establish a good and long-term cooperation.
